PSI Matrix PP 806 Benutzerhandbuch Seite 233

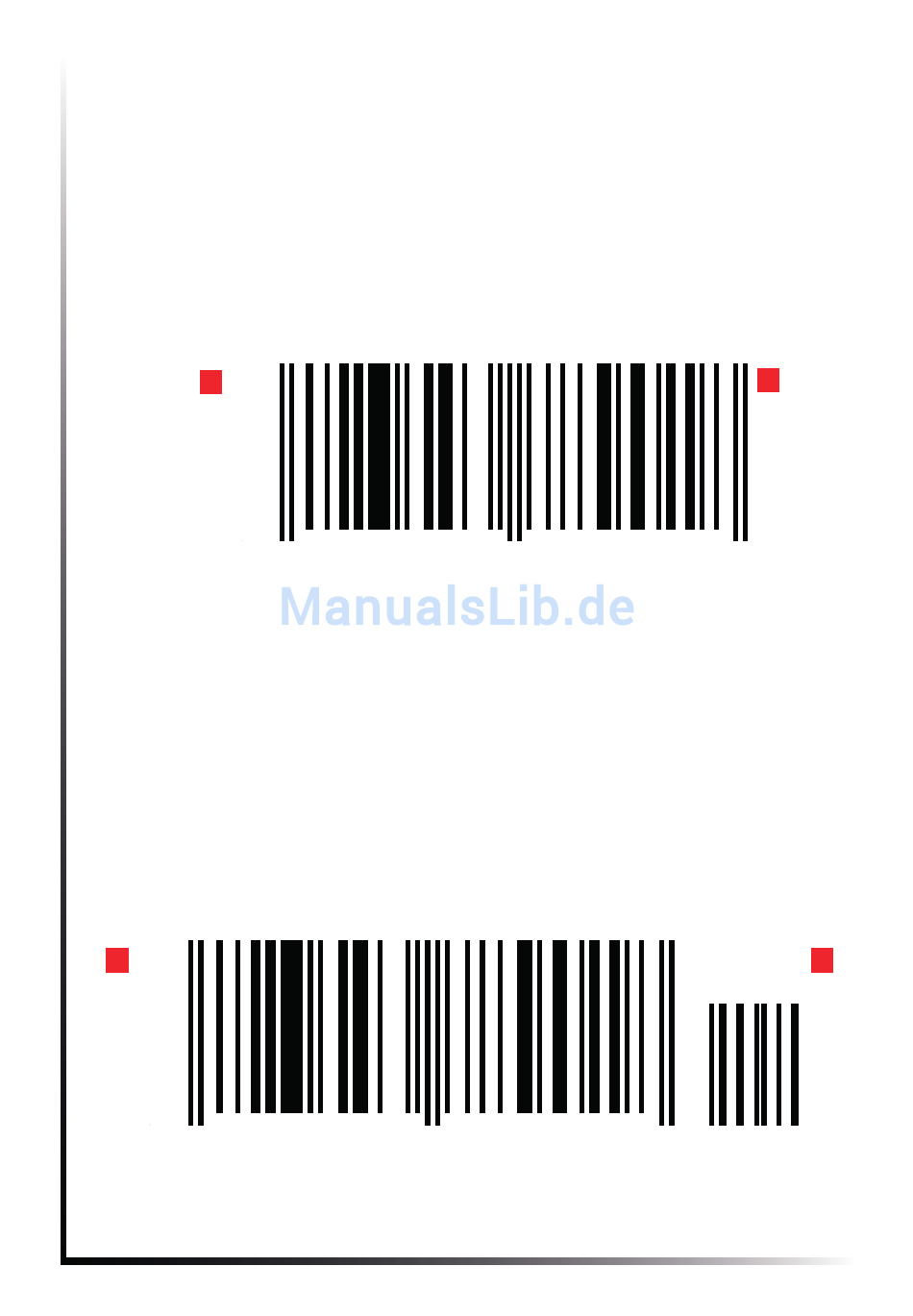

Barcode Example for EAN 13
Barcode Header:
ASCII ESC[ ; 206 ;8 ; ; ; ; ˽ z
HEX
Start Barcode: ASCII
HEX
ASCII 4 1 2 3 4 5 6 7 8 9 0 1 8
Data:
Info: No Start or Stop character needed
Stop Barcode: ASCII
HEX
4
Barcode Example for EAN 13 ADD-2
Barcode Header:
ASCII ESC[ ; 206 ;8 ; ; ; ; ˽ z
HEX
Start Barcode: ASCII
HEX
ASCII 4 1 2 3 4 5 6 7 8 9 0 1 8 1 2
Data:
Info: No Start or Stop character needed
Stop Barcode: ASCII
HEX
1 2 3 4 5 6
4
(with redable Text)
ESC[ ; P2 ; P3 ; P4 ;P5 ; P6 ;P7 ˽ z
1B 5B 3B 32 30 36 3B 38 3B 3B 3B 3B 20 7A
ESC [ ? 0 h
1B 5B 3E 30 68
ESC [ ? 0 l
1B 5B 3E 30 6C
1 2 3 4 5 6
(with redable Text)
ESC[ ; P2 ; P3 ; P4 ;P5 ; P6 ;P7 ˽ z
1B 5B 3B 32 30 36 3B 38 3B 3B 3B 3B 20 7A
ESC [ ? 0 h
1B 5B 3E 30 68
ESC [ ? 0 l
1B 5B 3E 30 6C
7 8 9 0 1 8
7 8 9 0 1 8
1 2
Appendix F-11
