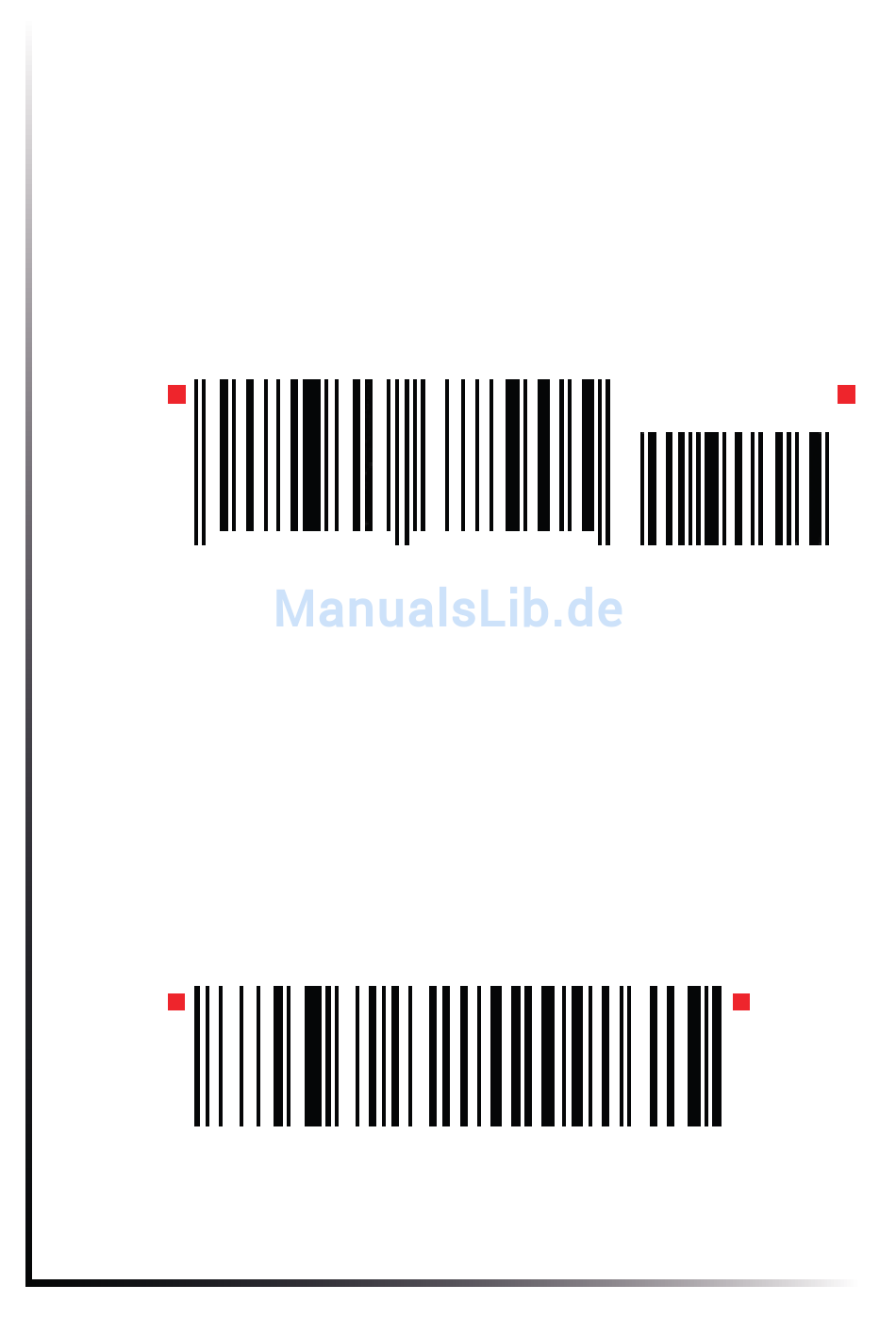

Barcode Example for UPC-A ADD-5
Barcode Header:
ASCII ESC [ ;210 ;8 ;1 ; 1; 1 ; ˽ z
HEX
Start Barcode: ASCII
HEX
Data: ASCII 1 2 3 4 5 6 8 9 0 8 6 1 0 4
Stop Barcode: ASCII
HEX
1 2 3 4 5
Barcode Example for Code 128
Barcode Header:
ASCII ESC [ ;211 ;8 ;1 ; 1; 1 ; ˽ z
HEX
Start Barcode: ASCII
HEX
Data: ASCII Code 128
Stop Barcode: ASCII
HEX
(with redable Text)
ESC[ ; P2 ; P3 ; P4 ;P5 ; P6 ;P7 ˽ z
1B 5B 3B 32 31 30 3B 38 3B 31 3B 31 3B 31 3B 20 7A
ESC [ ? 0 h
1B 5B 3E 30 68
ESC [ ? 0 l
1B 5B 3E 30 6C
(with redable Text)
ESC[ ; P2 ; P3 ; P4 ;P5 ; P6 ;P7 ˽ z
1B 5B 3B 32 31 31 3B 38 3B 31 3B 31 3B 31 3B 20 7A
ESC [ ? 0 h
1B 5B 3E 30 68
ESC [ ? 0 l
1B 5B 3E 30 6C
C o d e
6 7 8 9 0
1 2 8
8 6 1 0 4
Appendix F-16
