PSI Matrix PP 806 Benutzerhandbuch Seite 230

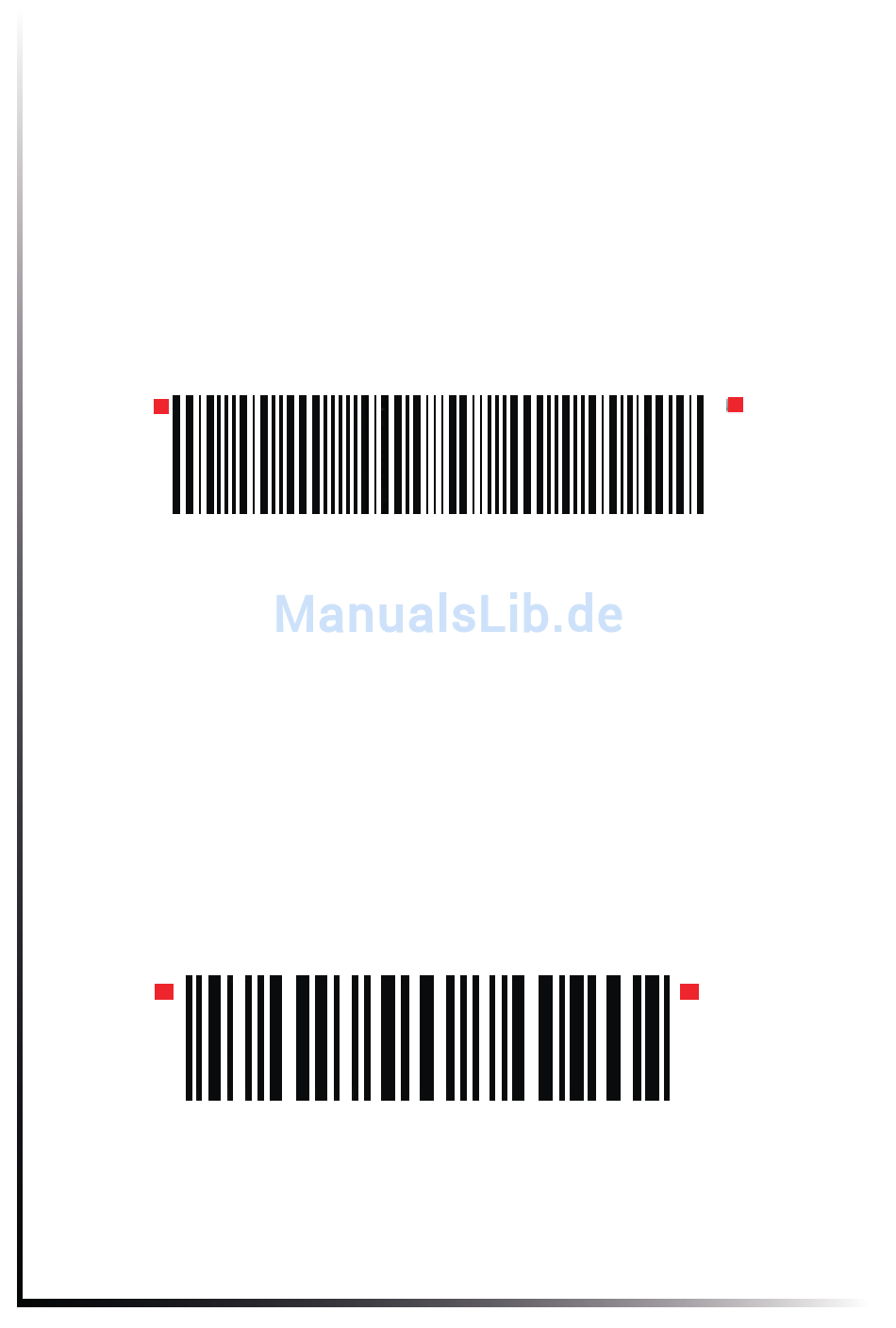

Barcode Example for 2 of 5 industriel
Barcode Header:
ASCII ESC[ ; 202 ;8 ;1 ; 1; 1 ; ˽ z
HEX
Start Barcode: ASCII
HEX
Data: ASCII : 1 2 3 4 5 6 7 8 9 0 ;
Info: The start / stop characters (:/;) must be given in the text.
Stop Barcode: ASCII
HEX
: 1 2 3 4 5 6 7 8 9 0 ;
Barcode Example for 2 of 5 interleaved
Barcode Header:
ASCII ESC[ ; 203 ;8 ;1 ; 1; 1 ; ˽ z
HEX
Start Barcode: ASCII
HEX
Data: ASCII : 1 2 3 4 5 6 7 8 9 0 ;
Info: The start / stop characters (:/;) must be given in the text.
Stop Barcode: ASCII
HEX
: 1 2 3 4 5 6 7 8 9 0 ;
(with redable Text)
ESC[ ; P2 ; P3 ; P4 ;P5 ; P6 ;P7 ˽ z
1B 5B 3B 32 30 32 3B 38 3B 31 3B 31 3B 31 3B 20 7A
ESC [ ? 0 h
1B 5B 3E 30 68
ESC [ ? 0 l
1B 5B 3E 30 6C
(with redable Text)
ESC[ ; P2 ; P3 ; P4 ;P5 ; P6 ;P7 ˽ z
1B 5B 3B 32 30 33 3B 38 3B 31 3B 31 3B 31 3B 20 7A
ESC [ ? 0 h
1B 5B 3E 30 68
ESC [ ? 0 l
1B 5B 3E 30 6C
Appendix F-8
