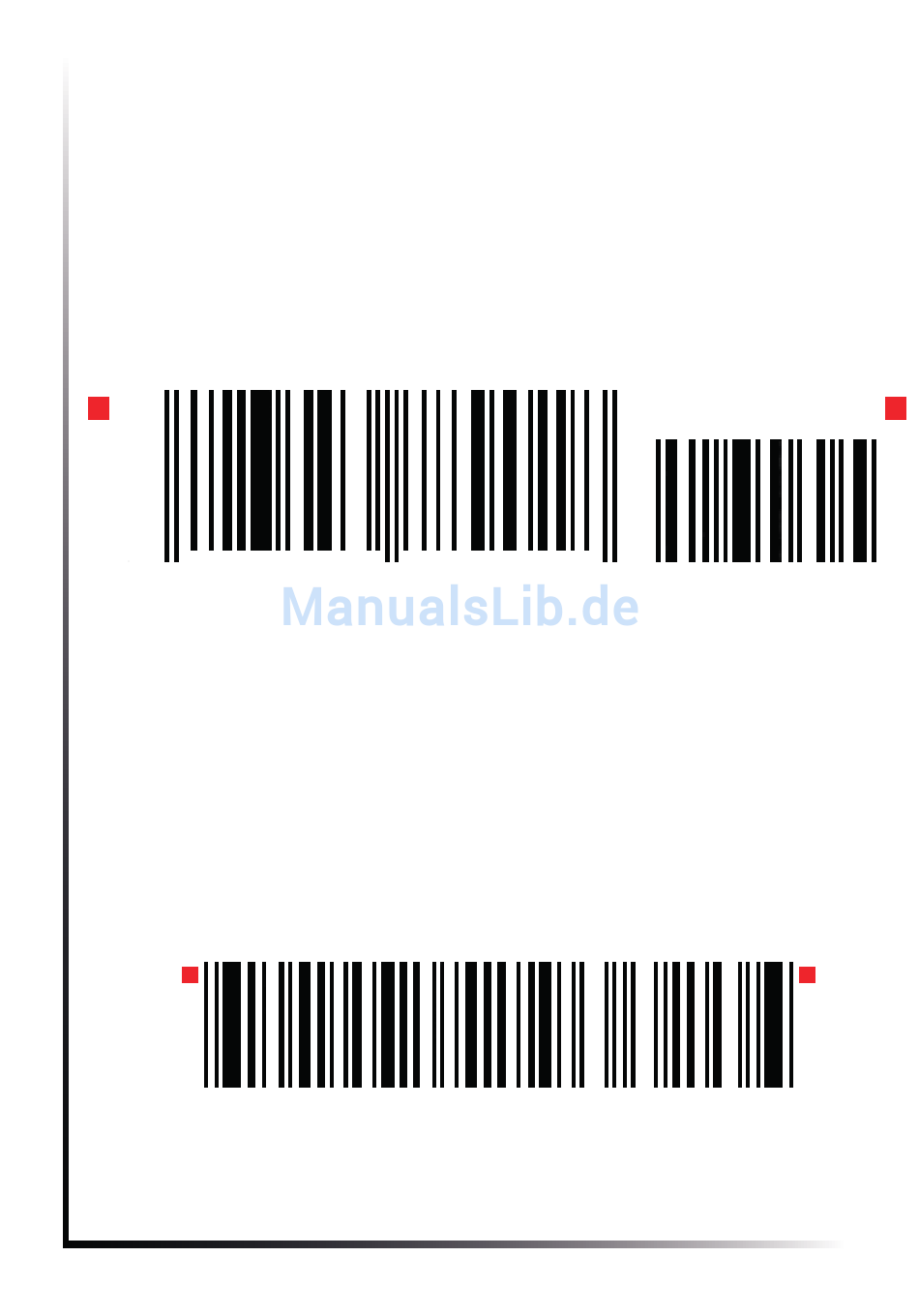

Barcode Example for EAN 13 ADD-5
Barcode Header: ESC[ ; P2 ; P3 ; P4 ;P5 ; P6 ;P7 ˽ z
ASCII ESC[ ; 206 ;8 ; ; ; ; ˽ z
HEX 1B 5B 3B 32 30 36 3B 38 3B 3B 3B 3B 20 7A
Start Barcode: ASCII ESC [ ? 0 h
HEX 1B 5B 3E 30 68
ASCII 4 1 2 3 4 5 6 7 8 9 0 1 8 8 6 1 0 4
Data:
Info: No Start or Stop character needed
Stop Barcode: ASCII ESC [ ? 0 l
HEX 1B 5B 3E 30 6C
1 2 3 4 5 6
4
Barcode Example for Codabar Monarch
Barcode Header: ESC[ ; P2 ; P3 ; P4 ;P5 ; P6 ;P7 ˽ z
ASCII ESC [ ; 207 ;8 ;1 ; 1; 1 ; ˽ z
HEX 1B 5B 3B 32 30 37 3B 38 3B 31 3B 31 3B 31 3B 20 7A
Start Barcode: ASCII ESC [ ? 0 h
HEX 1B 5B 3E 30 68
Data: ASCII a C + O + D + E ˽ 9 3 W I e
Info: The start / stop characters (a/e) must be given in the text.
Stop Barcode: ASCII ESC [ ? 0 l
HEX 1B 5B 3E 30 6C
a C + O + D + E
(with redable Text)
7 8 9 0 1 8
(with redable Text)
9
8 6 1 0 4
3 W I e
Appendix F-12
