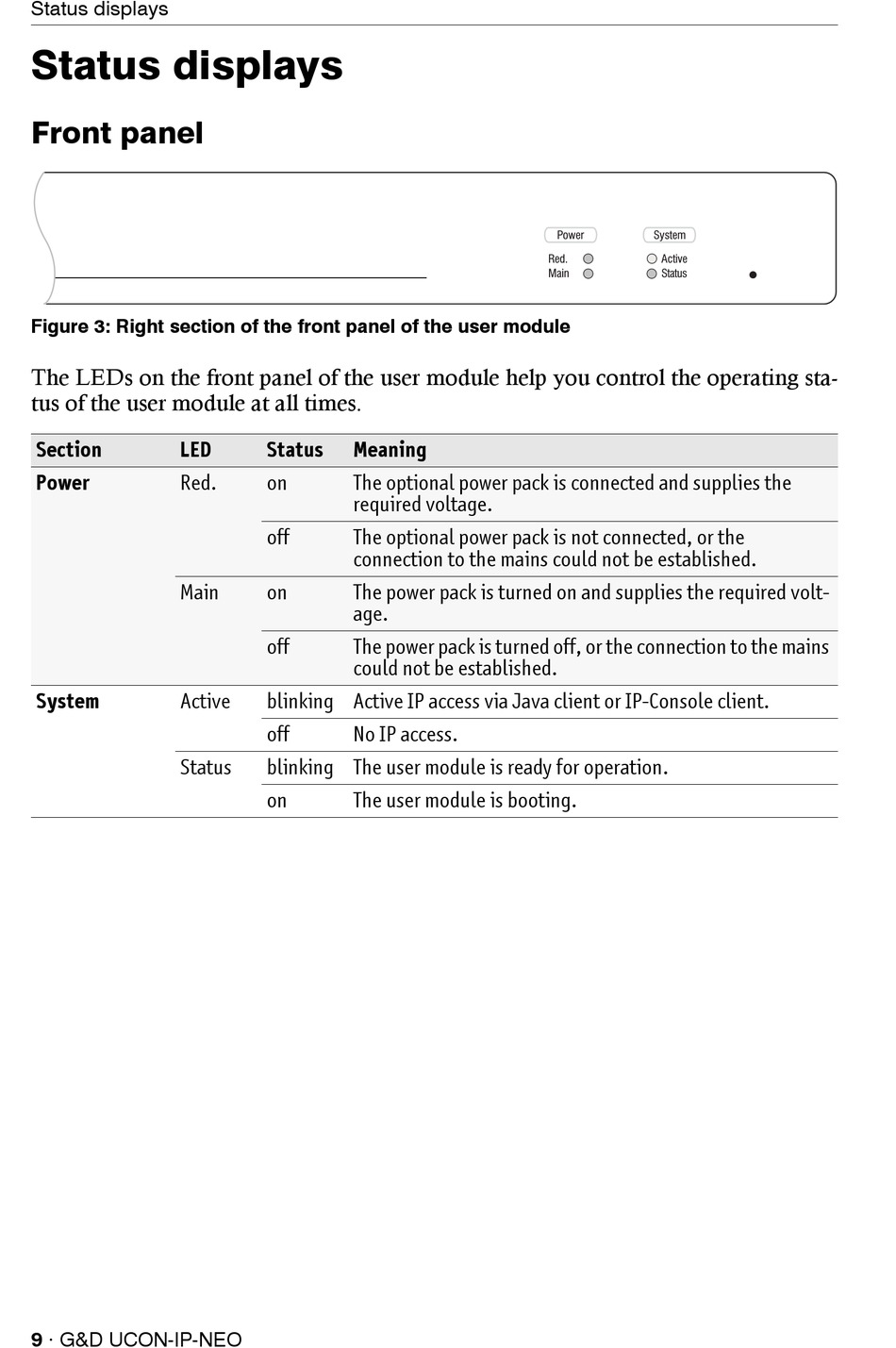

Status displays
Status displays
Front panel
Figure 3: Right section of the front panel of the user module
The LEDs on the front panel of the user module help you control the operating sta-
tus of the user module at all times.
Section
LED
Power
Red.
Main
System
Active
Status
9 · G&D UCON-IP-NEO
Status
Meaning
on
The optional power pack is connected and supplies the
required voltage.
off
The optional power pack is not connected, or the
connection to the mains could not be established.
on
The power pack is turned on and supplies the required volt-
age.
off
The power pack is turned off, or the connection to the mains
could not be established.
blinking Active IP access via Java client or IP-Console client.
off
No IP access.
blinking The user module is ready for operation.
on
The user module is booting.
Power
System
Red.
Active
Main
Status
