Mode of Operation

5.2 Potentiometers

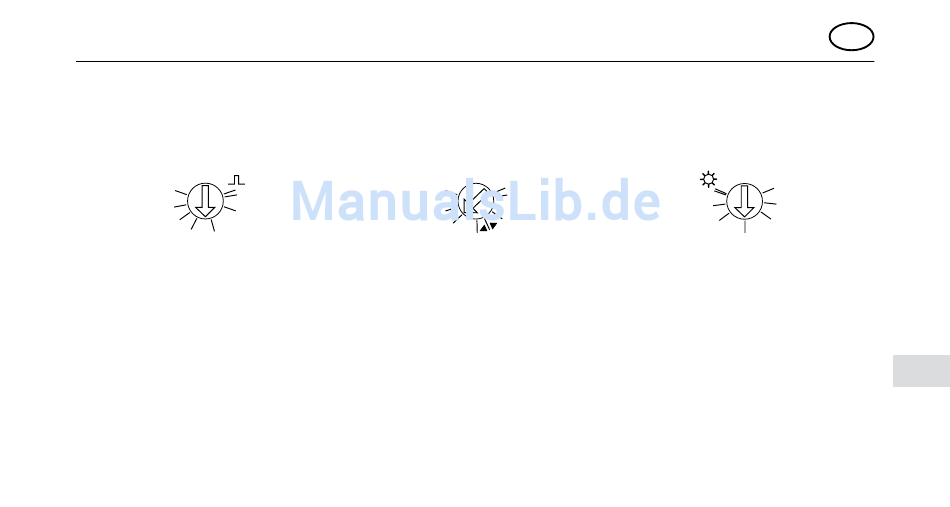

The switching behaviour of the Presence Detector can be set prior to installation via the three
potentiometers (see also Fig. 10, Pos. 4). After installation, the simplest way to set the
brightness limit value is via the IR hand-held transmitter 6010 (see Chapter 7.2).
30
10
sec
20
1
15
min
10
5
"Time/Light" potentiometer
for Output 1
s. Chap. 5.4
60
T
1
40
5
30
15
"Time/HAV" potentiometer
for Output 2 with special
function test
s. Chap. 5.5 and 6.1
5
1000
100
500
"Lux" potentiometer
for Output 1
s. Chap. 5.3
GB
95
