Installation/Fig. 12

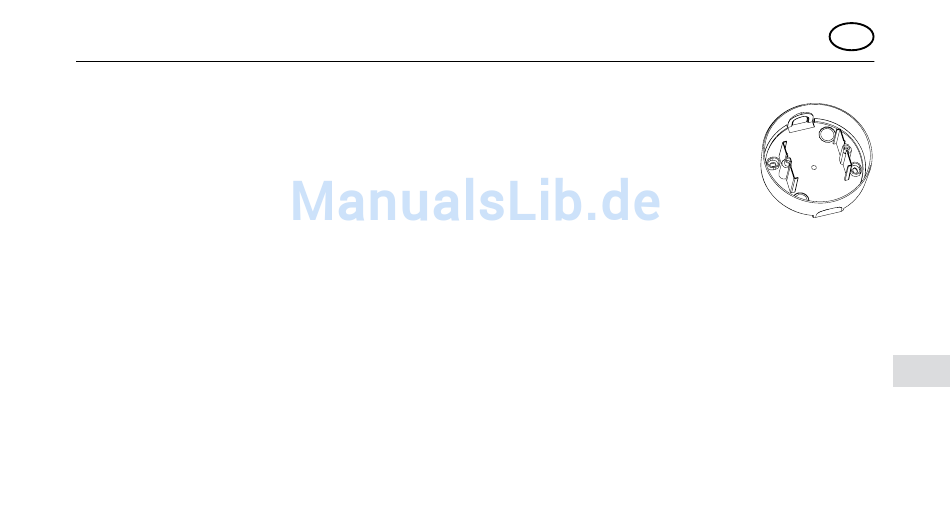

4.4 Installation with Surface-mounted Housing 6885 (Fig. 12)
• Depending on where the line is to be routed, knock out one of the wire
entries in the side of the housing (Pos. 1) or on the base of the housing
(Pos. 2).
• Fit an entry gland, if necessary.
• Insert the necessary line in the surface-mounted housing.
• Attach the surface-mounted housing by means of screws.
• Connect the FM Insert in accordance with the connection diagrams (Fig. 1 to 7) and
attach it to the pins provided in the surface-mounted housing (Pos. 3).

4.5 Installation in Conjunction with Extensions

The Presence Detector can be operated via extension. Without fail, follow the instructions
with regard to line routing, max. line length, choice of NO-contact pushbutton, etc., in
the operating instructions of the respective FM Insert.
4.6 To Dismantle the Presence Detector
• Via the outer housing ring, detach the Presence Detector from the FM Insert by pulling
it downwards.
GB
1
2
3
93
