ToolMod Faderbox - 20CH-Frame
INSERT OUTPUT - CH 1 - 8
FOR MONO MODULES ONLY
nc
LINE
13
Screen
25
1
CH1 INSERT OUTPUT
-
12
+
24
Screen
11
2
CH2 INSERT OUTPUT
-
23
+
10
Screen
22
3
CH3 INSERT OUTPUT
-
9
+
21
Screen
8
4
CH4 INSERT OUTPUT
-
20
+
7
Screen
19
5
CH5 INSERT OUTPUT
-
6
+
18
Screen
5
6
CH6 INSERT OUTPUT
-
17
+
4
Screen
16
7
CH7 INSERT OUTPUT
-
3
+
15
Screen
2
8
CH8 INSERT OUTPUT
-
14
+
1
SubD-25 Connector
Female in Console Frame
ToolMod Faderbox - 20CH-Frame
INSERT OUTPUT - CH 9 - 16
FOR MONO MODULES ONLY
nc
LINE
13
Screen
25
1
CH9 INSERT OUTPUT
-
12
+
24
Screen
11
2
CH10 INSERT OUTPUT
-
23
+
10
Screen
22
3
CH11 INSERT OUTPUT
-
9
+
21
Screen
8
4
CH12 INSERT OUTPUT
-
20
+
7
Screen
19
5
CH13 INSERT OUTPUT
-
6
+
18
Screen
5
6
CH14 INSERT OUTPUT
-
17
+
4
Screen
16
7
CH15 INSERT OUTPUT
-
3
+
15
Screen
2
8
CH16 INSERT OUTPUT
-
14
+
1
SubD-25 Connector
Female in Console Frame
ToolMod Faderbox - 20CH-Frame
INSERT INPUT - CH 1 - 8
FOR MONO MODULES ONLY
nc
LINE
13
Screen
25
1
CH1 INSERT INPUT
-
12
+
24
Screen
11
2
CH2 INSERT INPUT
-
23
+
10
Screen
22
3
CH3 INSERT INPUT
-
9
+
21
Screen
8
-
4
CH4 INSERT INPUT
20
+
7
Screen
19
5
CH5 INSERT INPUT
-
6
+
18
Screen
5
6
CH6 INSERT INPUT
-
17
+
4
Screen
16
7
CH7 INSERT INPUT
-
3
+
15
Screen
2
8
CH8 INSERT INPUT
-
14
+
1
SubD-25 Connector
Female in Console Frame
ToolMod Faderbox - 20CH-Frame
INSERT INPUT - CH 9 - 16
FOR MONO MODULES ONLY
nc
LINE
13
Screen
25
1
CH9 INSERT INPUT
-
12
+
24
Screen
11
2
CH10 INSERT INPUT
-
23
+
10
Screen
22
3
CH11 INSERT INPUT
-
9
+
21
Screen
8
-
4
CH12 INSERT INPUT
20
+
7
Screen
19
5
CH13 INSERT INPUT
-
6
+
18
Screen
5
6
CH14 INSERT INPUT
-
17
+
4
Screen
16
7
CH15 INSERT INPUT
-
3
+
15
Screen
2
8
CH16 INSERT INPUT
-
14
+
1
SubD-25 Connector
Female in Console Frame
®
nc
13
Screen
25
12
24
Screen
11
23
10
Screen
22
9
21
Screen
8
20
7
Screen
19
6
18
Screen
5
17
4
Screen
16
3
15
Screen
2
14
1
nc
13
Screen
25
12
24
Screen
11
23
10
Screen
22
9
21
Screen
8
20
7
Screen
19
6
18
Screen
5
17
4
Screen
16
3
15
Screen
2
14
1
nc
13
Screen
25
12
24
Screen
11
23
10
Screen
22
9
21
Screen
8
20
7
Screen
19
6
18
Screen
5
17
4
Screen
16
3
15
Screen
2
14
1
nc
13
Screen
25
12
24
Screen
11
23
10
Screen
22
9
21
Screen
8
20
7
Screen
19
6
18
Screen
5
17
4
Screen
16
3
15
Screen
2
14
1

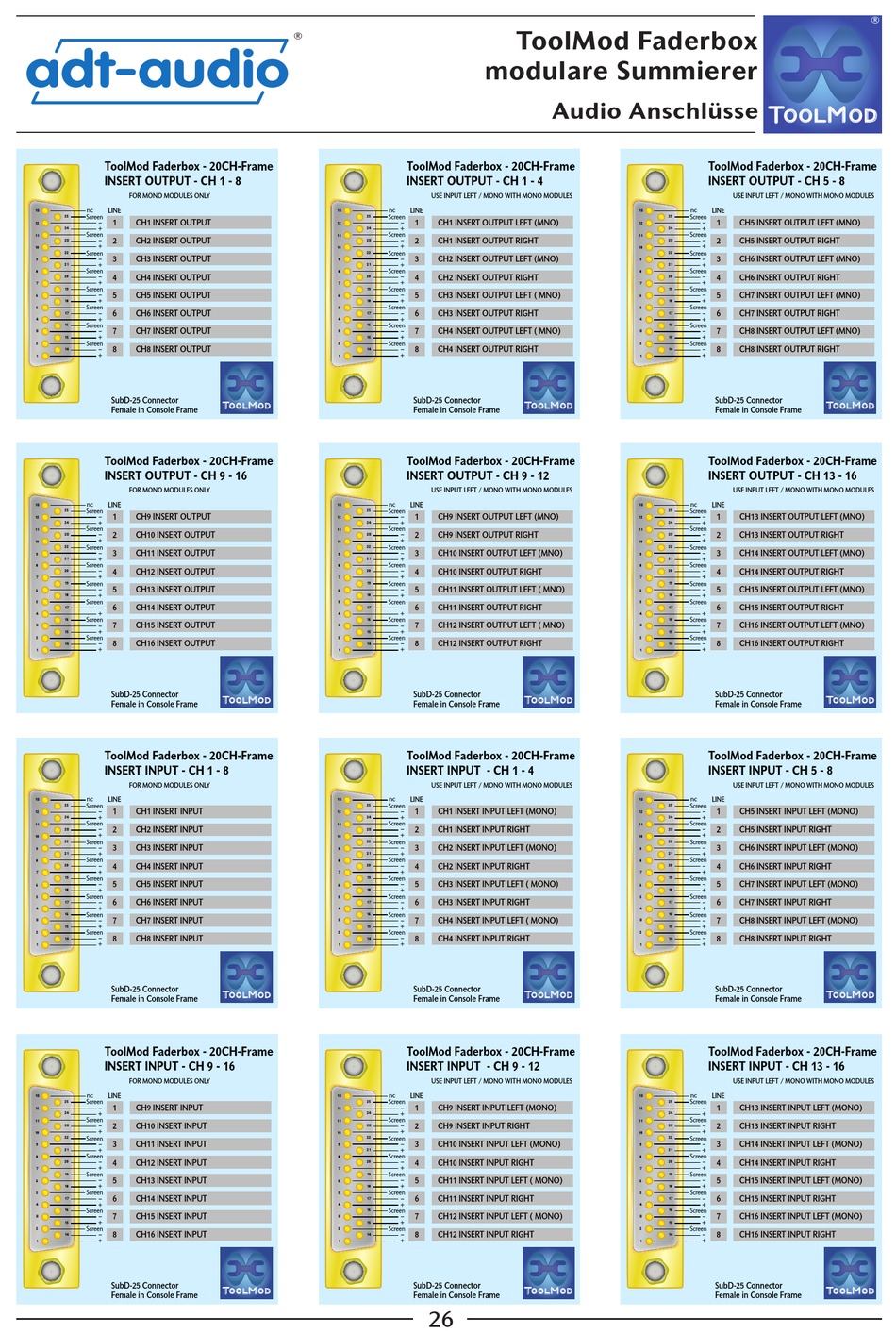

ToolMod Faderbox
modulare Summierer
Audio Anschlüsse
ToolMod Faderbox - 20CH-Frame
INSERT OUTPUT - CH 1 - 4
USE INPUT LEFT / MONO WITH MONO MODULES
LINE
1
CH1 INSERT OUTPUT LEFT (MNO)
-
+
2
CH1 INSERT OUTPUT RIGHT
-
+
3
CH2 INSERT OUTPUT LEFT (MNO)
-
+
4
CH2 INSERT OUTPUT RIGHT
-
+
5
CH3 INSERT OUTPUT LEFT ( MNO)
-
+
6
CH3 INSERT OUTPUT RIGHT
-
+
7
CH4 INSERT OUTPUT LEFT ( MNO)
-
+
8
CH4 INSERT OUTPUT RIGHT
-
+
SubD-25 Connector
Female in Console Frame
ToolMod Faderbox - 20CH-Frame
INSERT OUTPUT - CH 9 - 12
USE INPUT LEFT / MONO WITH MONO MODULES
LINE
1
CH9 INSERT OUTPUT LEFT (MNO)
-
+
2
CH9 INSERT OUTPUT RIGHT
-
+
3
CH10 INSERT OUTPUT LEFT (MNO)
-
+
4
CH10 INSERT OUTPUT RIGHT
-
+
5
CH11 INSERT OUTPUT LEFT ( MNO)
-
+
6
CH11 INSERT OUTPUT RIGHT
-
+
7
CH12 INSERT OUTPUT LEFT ( MNO)
-
+
8
CH12 INSERT OUTPUT RIGHT
-
+
SubD-25 Connector
Female in Console Frame
ToolMod Faderbox - 20CH-Frame
INSERT INPUT - CH 1 - 4
USE INPUT LEFT / MONO WITH MONO MODULES
LINE
1
CH1 INSERT INPUT LEFT (MONO)
-
+
2
CH1 INSERT INPUT RIGHT
-
+
3
CH2 INSERT INPUT LEFT (MONO)
-
+
-
4
CH2 INSERT INPUT RIGHT
+
5
CH3 INSERT INPUT LEFT ( MONO)
-
+
6
CH3 INSERT INPUT RIGHT
-
+
7
CH4 INSERT INPUT LEFT ( MONO)
-
+
8
CH4 INSERT INPUT RIGHT
-
+
SubD-25 Connector
Female in Console Frame
ToolMod Faderbox - 20CH-Frame
INSERT INPUT - CH 9 - 12
USE INPUT LEFT / MONO WITH MONO MODULES
LINE
1
CH9 INSERT INPUT LEFT (MONO)
-
+
2
CH9 INSERT INPUT RIGHT
-
+
3
CH10 INSERT INPUT LEFT (MONO)
-
+
-
4
CH10 INSERT INPUT RIGHT
+
5
CH11 INSERT INPUT LEFT ( MONO)
-
+
6
CH11 INSERT INPUT RIGHT
-
+
7
CH12 INSERT INPUT LEFT ( MONO)
-
+
8
CH12 INSERT INPUT RIGHT
-
+
SubD-25 Connector
Female in Console Frame
26
ToolMod Faderbox - 20CH-Frame
INSERT OUTPUT - CH 5 - 8
USE INPUT LEFT / MONO WITH MONO MODULES
nc
LINE
13
Screen
25
1
CH5 INSERT OUTPUT LEFT (MNO)
-
12
+
24
Screen
11
2
CH5 INSERT OUTPUT RIGHT
-
23
+
10
Screen
22
3
CH6 INSERT OUTPUT LEFT (MNO)
-
9
+
21
Screen
8
4
CH6 INSERT OUTPUT RIGHT
-
20
+
7
Screen
19
5
CH7 INSERT OUTPUT LEFT (MNO)
-
6
+
18
Screen
5
6
CH7 INSERT OUTPUT RIGHT
-
17
+
4
Screen
16
7
CH8 INSERT OUTPUT LEFT (MNO)
-
3
+
15
Screen
2
8
CH8 INSERT OUTPUT RIGHT
-
14
+
1
SubD-25 Connector
Female in Console Frame
ToolMod Faderbox - 20CH-Frame
INSERT OUTPUT - CH 13 - 16
USE INPUT LEFT / MONO WITH MONO MODULES
nc
LINE
13
Screen
25
1
CH13 INSERT OUTPUT LEFT (MNO)
-
12
+
24
Screen
11
2
CH13 INSERT OUTPUT RIGHT
-
23
+
10
Screen
22
3
CH14 INSERT OUTPUT LEFT (MNO)
-
9
+
21
Screen
8
4
CH14 INSERT OUTPUT RIGHT
-
20
+
7
Screen
19
5
CH15 INSERT OUTPUT LEFT (MNO)
-
6
+
18
Screen
5
6
CH15 INSERT OUTPUT RIGHT
-
17
+
4
Screen
16
7
CH16 INSERT OUTPUT LEFT (MNO)
-
3
+
15
Screen
2
8
CH16 INSERT OUTPUT RIGHT
-
14
+
1
SubD-25 Connector
Female in Console Frame
ToolMod Faderbox - 20CH-Frame
INSERT INPUT - CH 5 - 8
USE INPUT LEFT / MONO WITH MONO MODULES
nc
LINE
13
Screen
25
1
CH5 INSERT INPUT LEFT (MONO)
-
12
+
24
Screen
11
2
CH5 INSERT INPUT RIGHT
-
23
+
10
Screen
22
3
CH6 INSERT INPUT LEFT (MONO)
-
9
+
21
Screen
8
-
4
CH6 INSERT INPUT RIGHT
20
+
7
Screen
19
5
CH7 INSERT INPUT LEFT (MONO)
-
6
+
18
Screen
5
6
CH7 INSERT INPUT RIGHT
-
17
+
4
Screen
16
7
CH8 INSERT INPUT LEFT (MONO)
-
3
+
15
Screen
2
8
CH8 INSERT INPUT RIGHT
-
14
+
1
SubD-25 Connector
Female in Console Frame
ToolMod Faderbox - 20CH-Frame
INSERT INPUT - CH 13 - 16
USE INPUT LEFT / MONO WITH MONO MODULES
nc
LINE
13
Screen
25
1
CH13 INSERT INPUT LEFT (MONO)
-
12
+
24
Screen
11
2
CH13 INSERT INPUT RIGHT
-
23
+
10
Screen
22
3
CH14 INSERT INPUT LEFT (MONO)
-
9
+
21
Screen
8
-
4
CH14 INSERT INPUT RIGHT
20
+
7
Screen
19
5
CH15 INSERT INPUT LEFT (MONO)
-
6
+
18
Screen
5
6
CH15 INSERT INPUT RIGHT
-
17
+
4
Screen
16
7
CH16 INSERT INPUT LEFT (MONO)
-
3
+
15
Screen
2
8
CH16 INSERT INPUT RIGHT
-
14
+
1
SubD-25 Connector
Female in Console Frame
®
