3.6

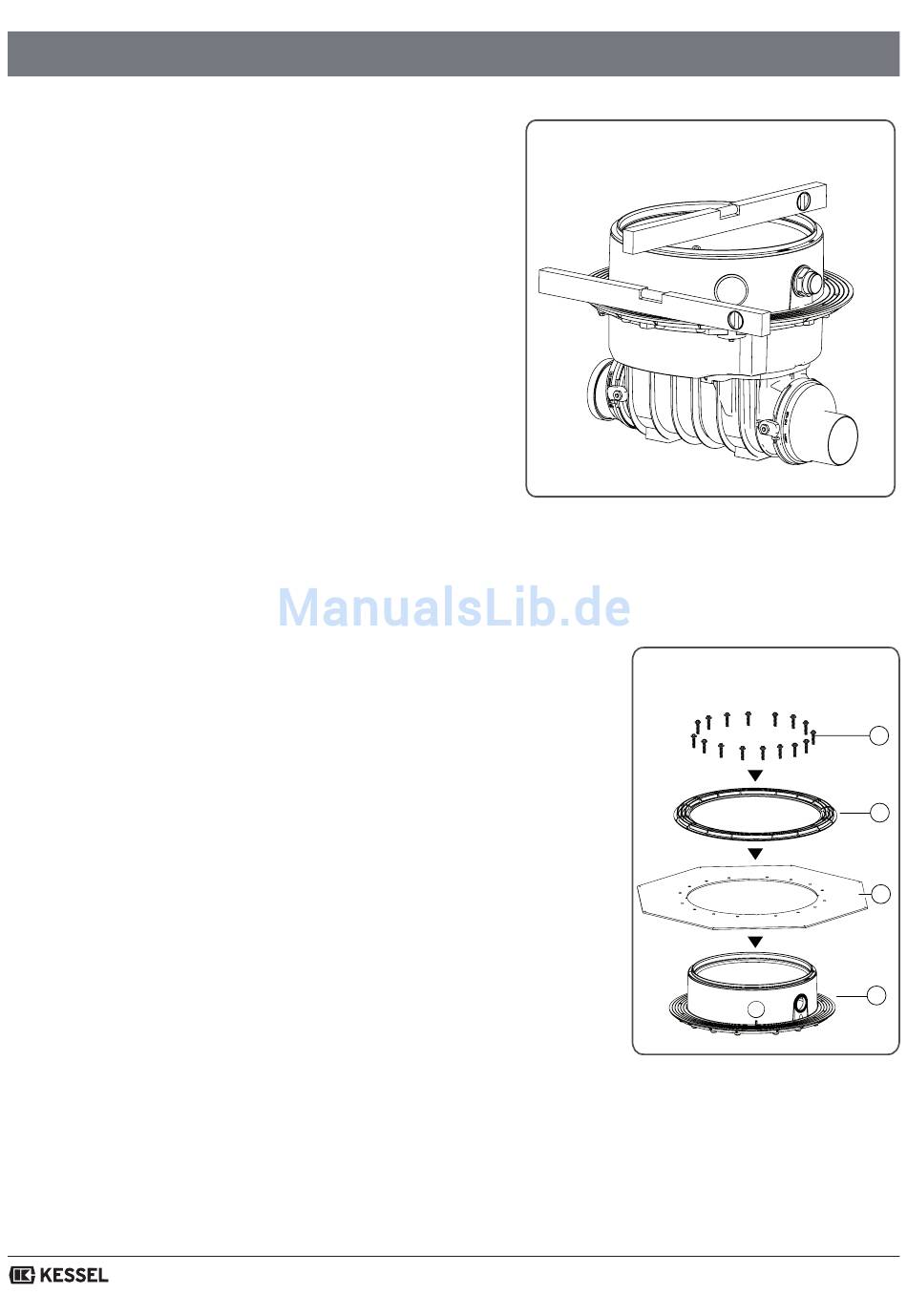

Aligning the drain body horizontally

3.7

Installation in the concrete slab (black tub)

Clamp the on-site sealing sheet <68> between the pressure sealing flange
<13> and the counterflange <47> and screw together using the
screws <48>.
Note: If there is no on-site sealing sheet available, the
Kessel sealing gasket set 83023 incl. elastomer
waterproofing sheet must be used.
Installation
36 / 144
Fig. [12]
Fig. [13]
2016/05
48
47
68
13
