Installation In The Concrete Slab (White Tub); Connecting The Venting Pipe (Optional) - Kessel Pumpfix F Comfort Einbau-, Wartungs- Und Bedienungsanleitung

3.8

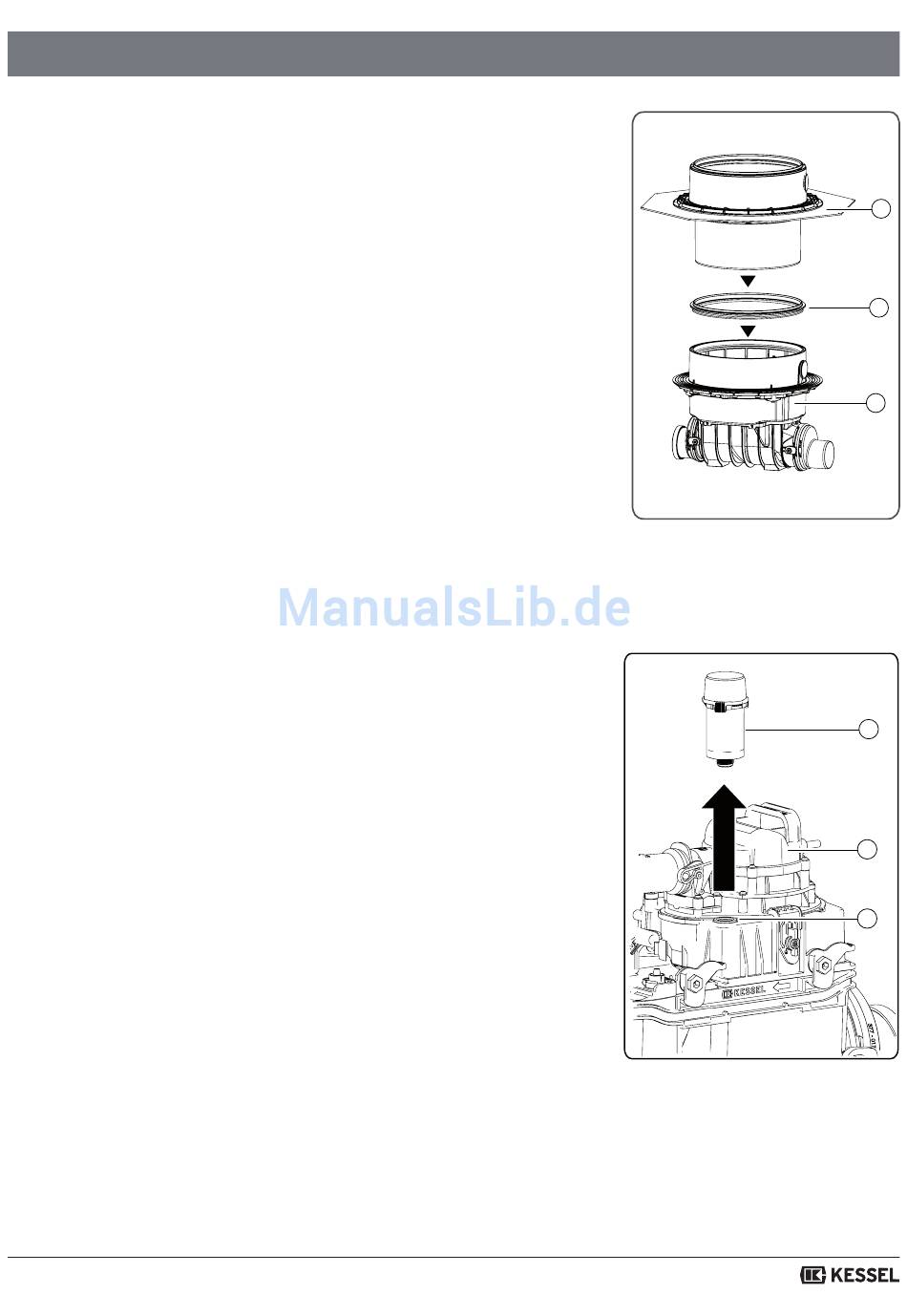

Installation in the concrete slab (white tub)

Insert the sealing gasket <37> in the base <1> and make sure the
sealing gasket is in place correctly. Then grease the upper side of the
sealing gasket. Push the extension section central flange <33> in
and move it into position.
3.9

Connecting the venting pipe (optional)

The venting pipe must be routed in such a way that it
does not hinder access for maintenance purposes nor the other
pipe connections (pressure pipe / cable conduit pipe).
- Screw the venting valve <11> out of the pump unit
<20>.
- Fix the vent pipe to the connection <12> on the venting valve
and route it through the drain body above the sealing
level.
2016/05
Installation
37 / 144
33
37
1
Fig. [14]
11
20
12
Fig. [15]
