8.8

Customizable linear input

Selecting 16 steps on par. 17 V/I custom and connecting a linear sensor it is possible
to customize the linear input for a max. of 16 steps. On parameters xx-Input value
it is necessary to enter the value of the input to which the value selected on the
corresponding parameter xx-Custom value will be related.
Example: sensor 0-10V.
01-Input value => 0.000V
02-Input value => 2.000V
03-Input value => 5.000V
04-Input value => 10.000V
At each value in volt (input) it is related a value in mBar (customized): if the sensor
supplies 2V the device visualizes 100mBar, if it supplies 5V the device visualizes
500mBar. For intermediate tension values the value in mBar is calculated linearly
between the entered values containing it:
7V=700mBar.
8.9 Alarm Intervention Modes

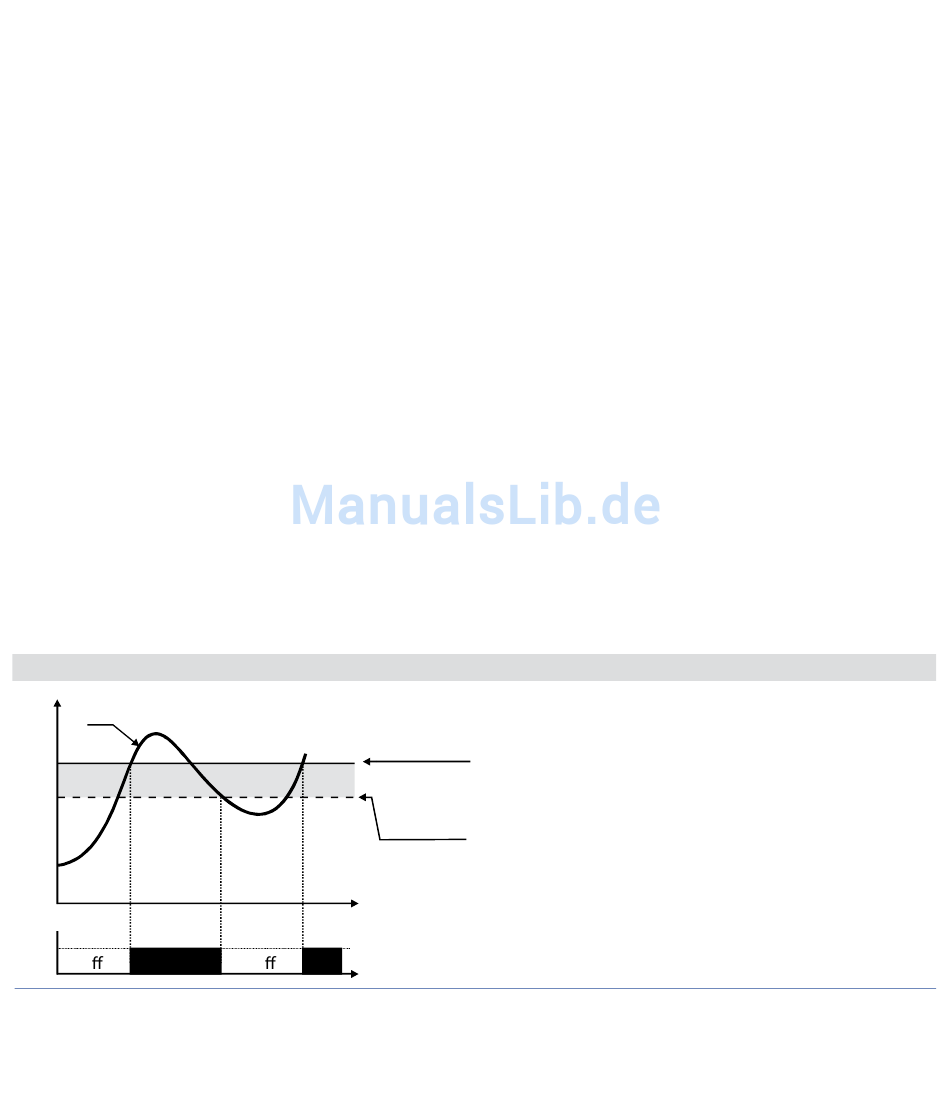

Absolute alarm (absolute selection)
Pv
1
On
O
68
UA964801 - User manual
Alarm Spv
Hysteresis
par. > 0
Time
On
Alarm
O
output
01-Custom value=>0mBar
02-Custom value=>100mBar
03-Custom value=>500mBar
04-Custom value=>1000mBar
1V = 50mBar, 3.5V=300mBar and
Absolute alarm and hysteresis value
greater than "0" (Par. 58 hysteresis > 0).
N.B. The example refers to alarm 1;
the function can also be enabled for
alarms 2
