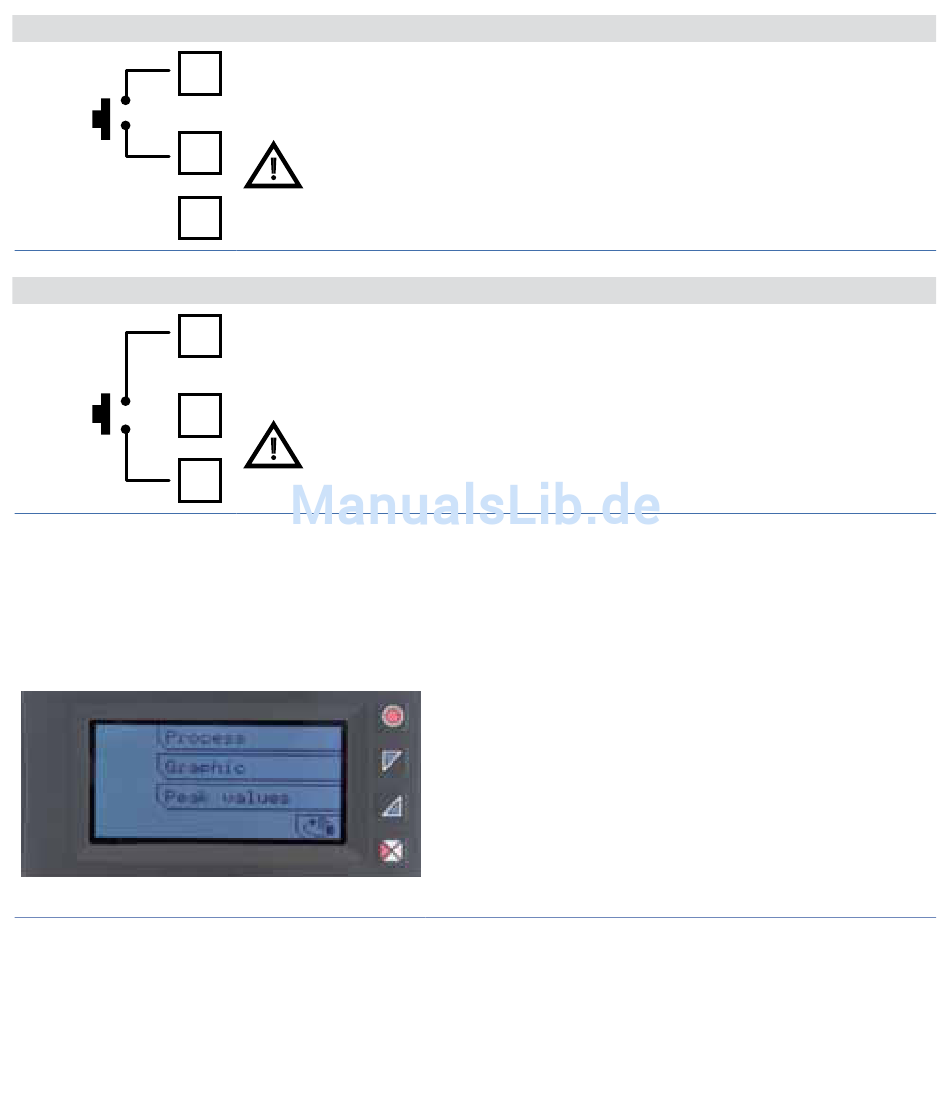

Digital Input 1
+24VDC
10
DI1
(PNP)
11
Digital input 2
+24VDC
10
DI2
(PNP)
12
7

Display and Key Functions

7.1

Keys

PNP digital input
Digital input according to parameter 95
Short-circuit pins 10 and 11 to activate the digital
input 1
PNP digital input
Digital input according to parameter 100
Short-circuit pins 10 and 12 to activate the digital
input 2
Keys are multifunction: in correspondence
of each key its meaning is displayed.
If no description is showed, press a key
to visualize it. Some menues will be only
displayed, when activated.
User manual - UA964801
