12.

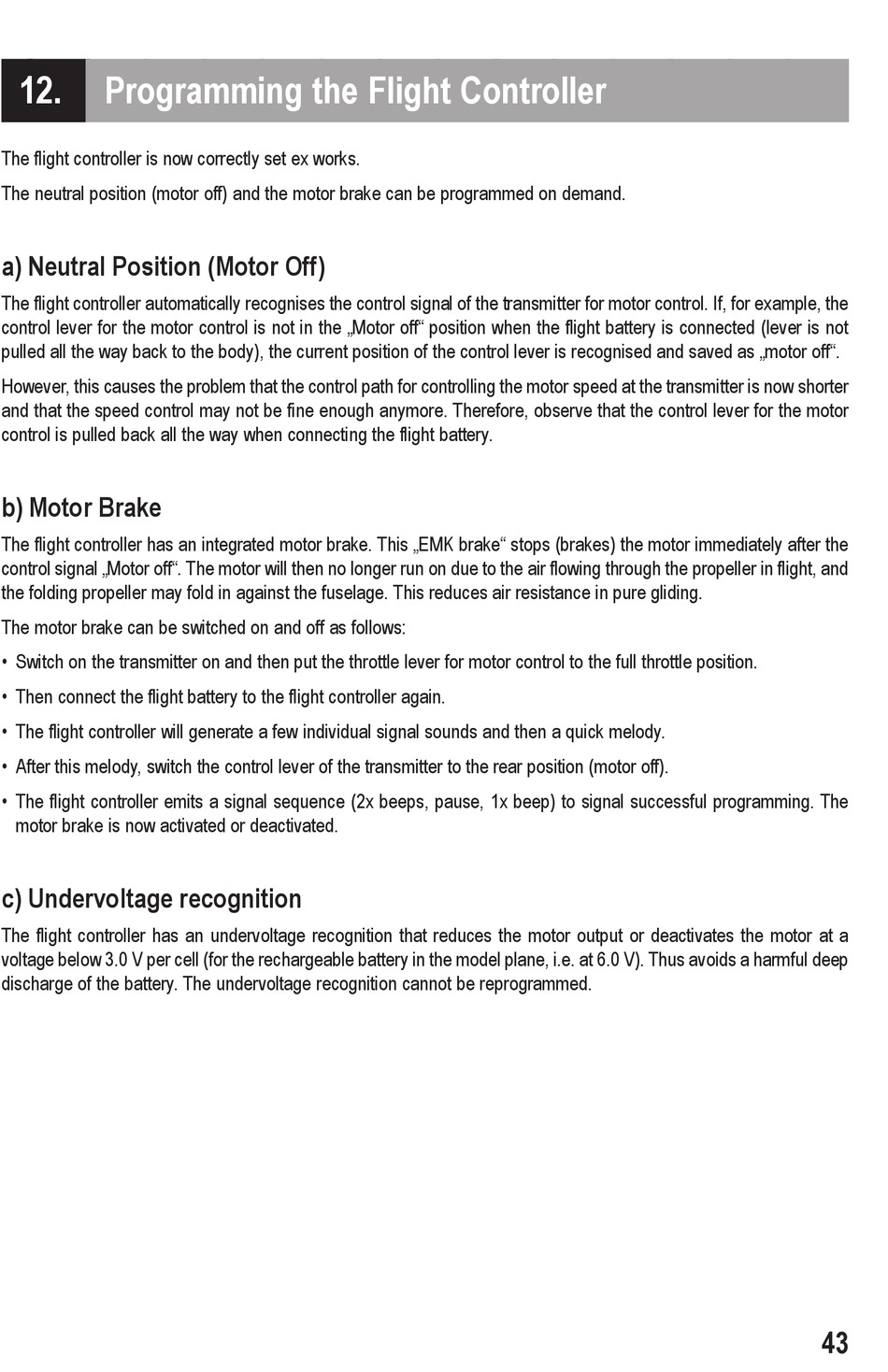

Programming the Flight Controller

The flight controller is now correctly set ex works.
The neutral position (motor off) and the motor brake can be programmed on demand.

a) Neutral Position (Motor Off)

The flight controller automatically recognises the control signal of the transmitter for motor control. If, for example, the
control lever for the motor control is not in the „Motor off" position when the flight battery is connected (lever is not
pulled all the way back to the body), the current position of the control lever is recognised and saved as „motor off".
However, this causes the problem that the control path for controlling the motor speed at the transmitter is now shorter
and that the speed control may not be fine enough anymore. Therefore, observe that the control lever for the motor
control is pulled back all the way when connecting the flight battery.

b) Motor Brake

The flight controller has an integrated motor brake. This „EMK brake" stops (brakes) the motor immediately after the
control signal „Motor off". The motor will then no longer run on due to the air flowing through the propeller in flight, and
the folding propeller may fold in against the fuselage. This reduces air resistance in pure gliding.
The motor brake can be switched on and off as follows:
• Switch on the transmitter on and then put the throttle lever for motor control to the full throttle position.
• Then connect the flight battery to the flight controller again.
• The flight controller will generate a few individual signal sounds and then a quick melody.
• After this melody, switch the control lever of the transmitter to the rear position (motor off).
• The flight controller emits a signal sequence (2x beeps, pause, 1x beep) to signal successful programming. The
motor brake is now activated or deactivated.

c) Undervoltage recognition

The flight controller has an undervoltage recognition that reduces the motor output or deactivates the motor at a
voltage below 3.0 V per cell (for the rechargeable battery in the model plane, i.e. at 6.0 V). Thus avoids a harmful deep
discharge of the battery. The undervoltage recognition cannot be reprogrammed.
43
