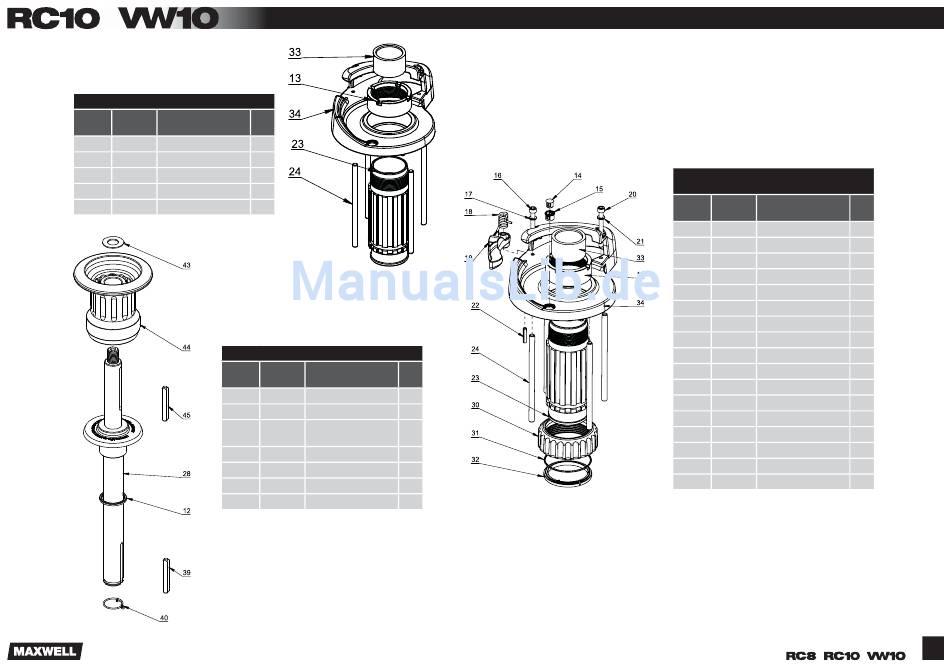

P104722 RC10 Deckplate 100TDC
Item Part
Description Qty
no no
13 Retaining Collar 1
23 Spacer Tube 1
24 5256 Stud M8 4
33 4218 Deck Bearing 1
34 Deckplate 1
P104702 RC10 Capstan Conversion Kit
Item
no
11
12
28
40
43
44
45
User's Manual • Benutzerhandbuch • Manuel d'Utilisation du Treuil • Manual del Usuario • Gebruikershandleiding • Manuale Utente
Part
Description Qty
no
Clutch Cone 1
SP2758 Quad Ring 1
Shaft Capstan
7073 1
100TDC
4547 Quick Release Clip 1
SP0421 Flat Washer 1
7074 Capstan 1
6340 Key 1
P104730 RC10 Full Deckplate
Assembly 100TDC
Item Part
Description Qty
no no
13 Retaining Collar 1
14 SP3519 Plug 1
15 SP3518 Bush 1
16 SP4501 Cap Screw M6 x 45 1
17 SP0474 Spring Washer 1
18 7037 Spring 1
19 7009 Pressure Arm 1
20 SP4502 Cap Screw M6 x 60 1
21 SP0474 Spring Washer 1
22 SP0545 Pin 5 x24 1
23 Spacer Tube 1
24 5256 Stud M8 4
30 4257 Locknut 1
31 SP2751 O-Ring 66x2 1
32 4258 Collar 1
33 4218 Deck Bearing 1
34 Deckplate 1
