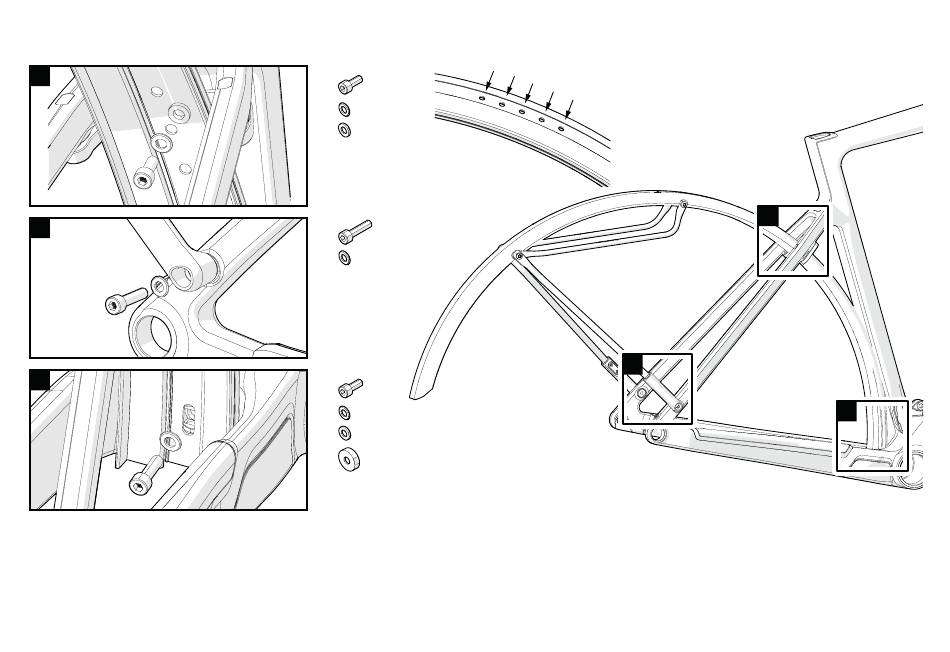

3.6 Fitting the rear mudguard to the bike (Backroad Carbon)
A
B
C
A Attach the mudguard to the frame. Place a small washer on the M5x12 mm bolt and insert both through the hole in the mudguard provided for your
frame size. Close each of the remaining holes with a cover cap. Fit a 2 mm spacer washer between the mudguard and the seat stay bridge. Tighten
the bolt to 2 Nm.
B Attach the side struts to the threaded eyelets on the seat stays. Place a small washer on the M5x20 mm bolt and insert both through the mounting
clamp. Tighten the bolt to 2 Nm.
C Place a small washer on the M5x16 mm bolt and insert both through the mudguard. Fit a 2 mm spacer disc and a 5 mm spacer disc between the
mudguard and the chainstay bridge. Tighten the bolt to 2 Nm.
XL
1x M5x12
1x
1x 8x5.2x2 mm
2x M5x20
2x
1x M5x16
1x
1x 8x5.2x2 mm
1x 14x6.1x5 mm
L
M
S
XS
B
A
C
