ROSE BACKROAD Bedienungsanleitung Seite 14

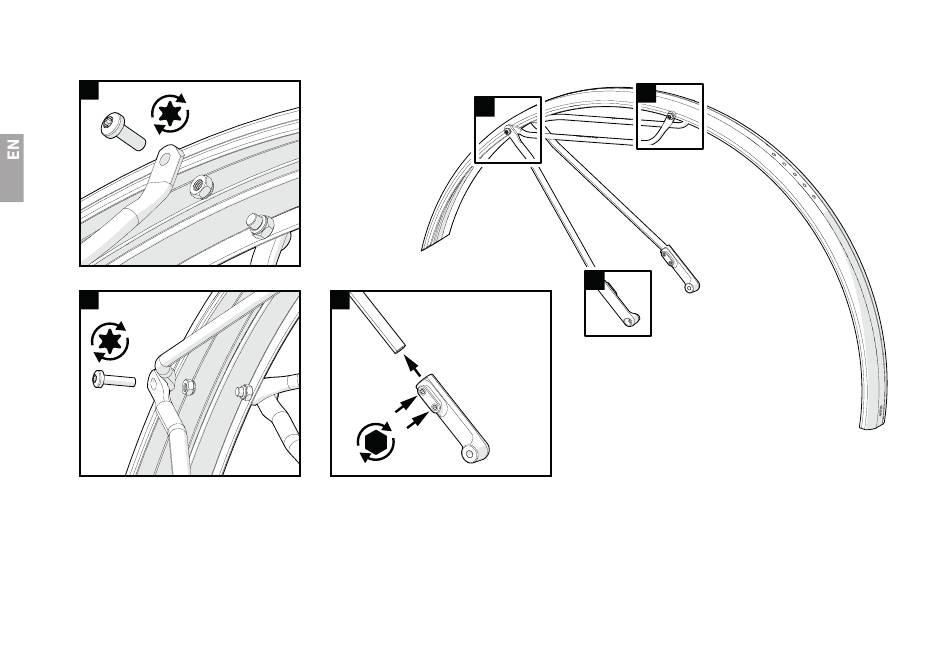

3.3 Assembling the rear mudguard
A
T25 5 Nm
B
T25 5 Nm
A Attach the luggage rack struts to the front of the mudguard and push the bolts through the struts and the hole in the mudguard. Screw the nuts onto the
bolts and tighten the bolts only firmly enough so that the struts can still be aligned while the mudguard is being fitted to the frame. Tighten the bolts to
5 Nm after fitting the mudguards to the frame.
B Attach the mudguard struts to the luggage rack struts and push the bolts through the struts and the hole in the mudguard. Screw the nuts onto the bolts
and tighten the bolts only firmly enough so that the struts can still be aligned while the mudguard is being fitted to the frame. Tighten the bolts to 5 Nm
after fitting the mudguards to the frame.
C Slide the mounting clamps onto the mudguard struts. Tighten the threaded pins only firmly enough so that the mounting clamps can still be aligned when
mounting the mudguard on the frame. Tighten the bolts to 5 Nm after fitting the mudguards to the frame.
B
B
C
5 2 Nm
A
A
C
