ROSE BACKROAD Bedienungsanleitung Seite 15

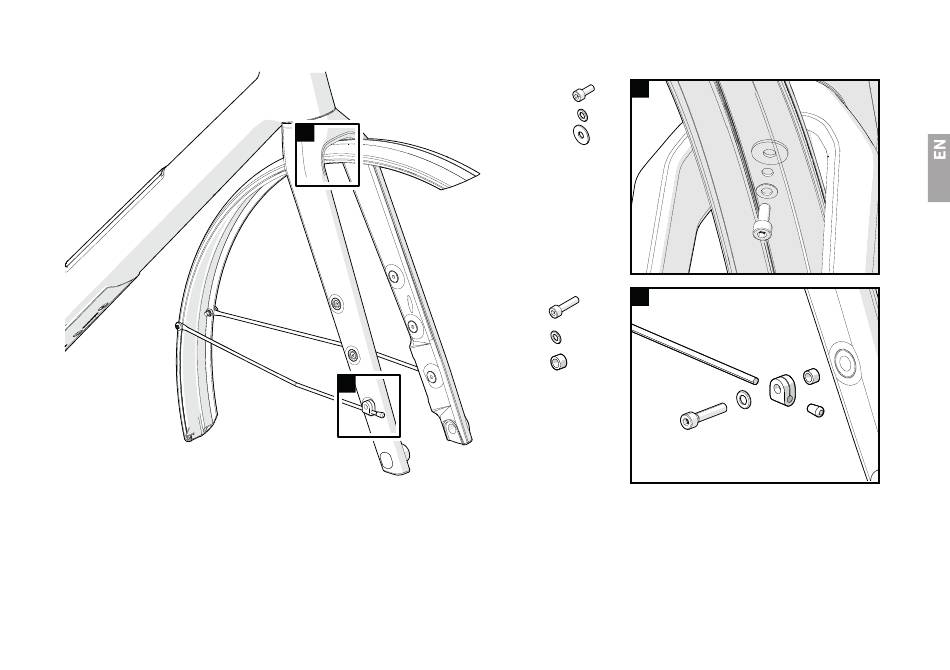

3.4 Fitting the front mudguard to the bike
A Attach the mudguard to the fork. Place a small washer on the M5x12 mm bolt and insert both through the mudguard. Fit a large washer between the
mudguard and fork. Tighten the bolt to 2 Nm.
B Attach the side struts to the threaded eyelets on the fork. Slide the mounting clamps onto the struts and attach the end caps to the struts. Place a washer
on the M5x25 mm bolt and insert both through the mounting clamp. Place a 8x5.2x5 mm spacer washer on the bolt. Tighten the bolt to 2 Nm.
A
B
A
1x M5x12
1x
1x
B
2x M5x25
2x
2x 8x5.2x5 mm
