8. How to switch Fahrenheit(℉) to Celsius(℃)?
Press "+" or "-" button longer than 5s,It will automatically switch.

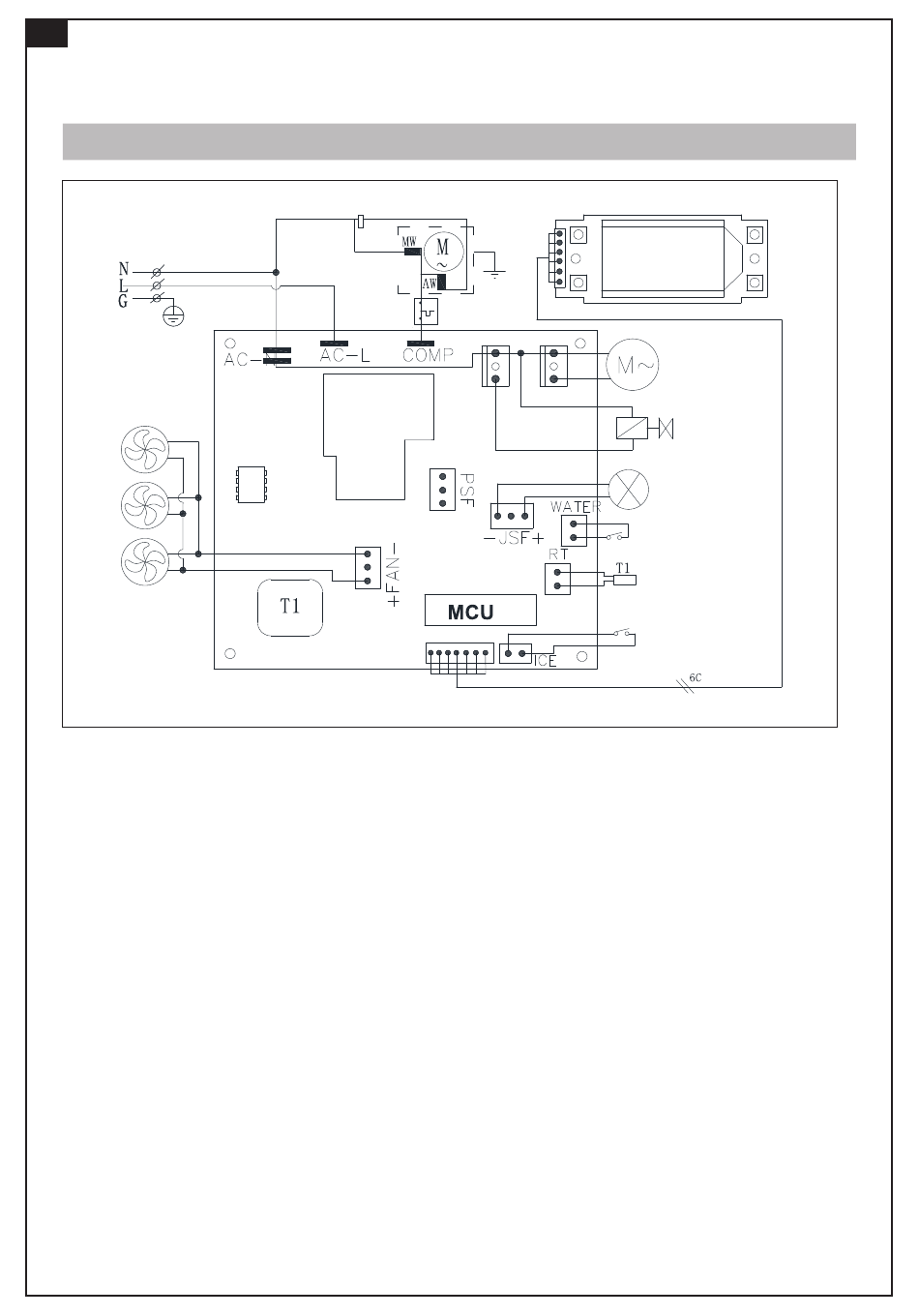

WIRING DIAGRAM

ELECTRICAL
DIAGRAM
Power Supply
DC Fan Motor
Normal Sounds
Your new ice maker may make sounds that are not familiar to you. Most of the new
sounds are normal. Hard surfaces like the floor, walls and cabinets can make the sounds
seem louder than they actually are. The following describes the kinds of sounds that
might be new to you and what may be making them.
• You will hear a swooshing sound when the water valve opens to fill the water tank for
each cycle.
• Rattling noises may come from the flow of the refrigerant or the water line. Items stored
on top of the ice maker can also make noises.
• The high-efficiency compressor may make a pulsating or high-pitched sound.
• Water running from the water tank to the evaporator plate may make a splashing
sound.
• Water running from the evaporator to the water tank may make a splashing sound.
As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in
•
your icemaker.
You may hear air being forced over the condenser by the condenser fan. During the
•
harvest cycle, you may hear the sound of ice cubes falling into the ice storage bin.
When you first start the ice maker, you may hear water running continuously. The ice
•
maker is programmed to run a rinse cycle before it begins to make ice.
Start Relay
COMPRESSOR
Overload
Protector
VALVE PUMP
16
AC Water Pump
Solenoid Vale
for Ice-harvest
DC Water Inlet Valve
WATER LEVEL
DETECTING
SWITCH
SENSOR FOR
AMBIENT TEMP
SENSOR FOR ICE
FULL DETECTING
