TECHNICAL PARAMETERS & CIRCUIT DIAGRAM

TECHNICAL PARAMETERS

Model
Protection Type
Climate Type
Power
Ice Making Current
Ice Harvest Current
Refrigerant
Net Weight
Vesicant
Enclosure

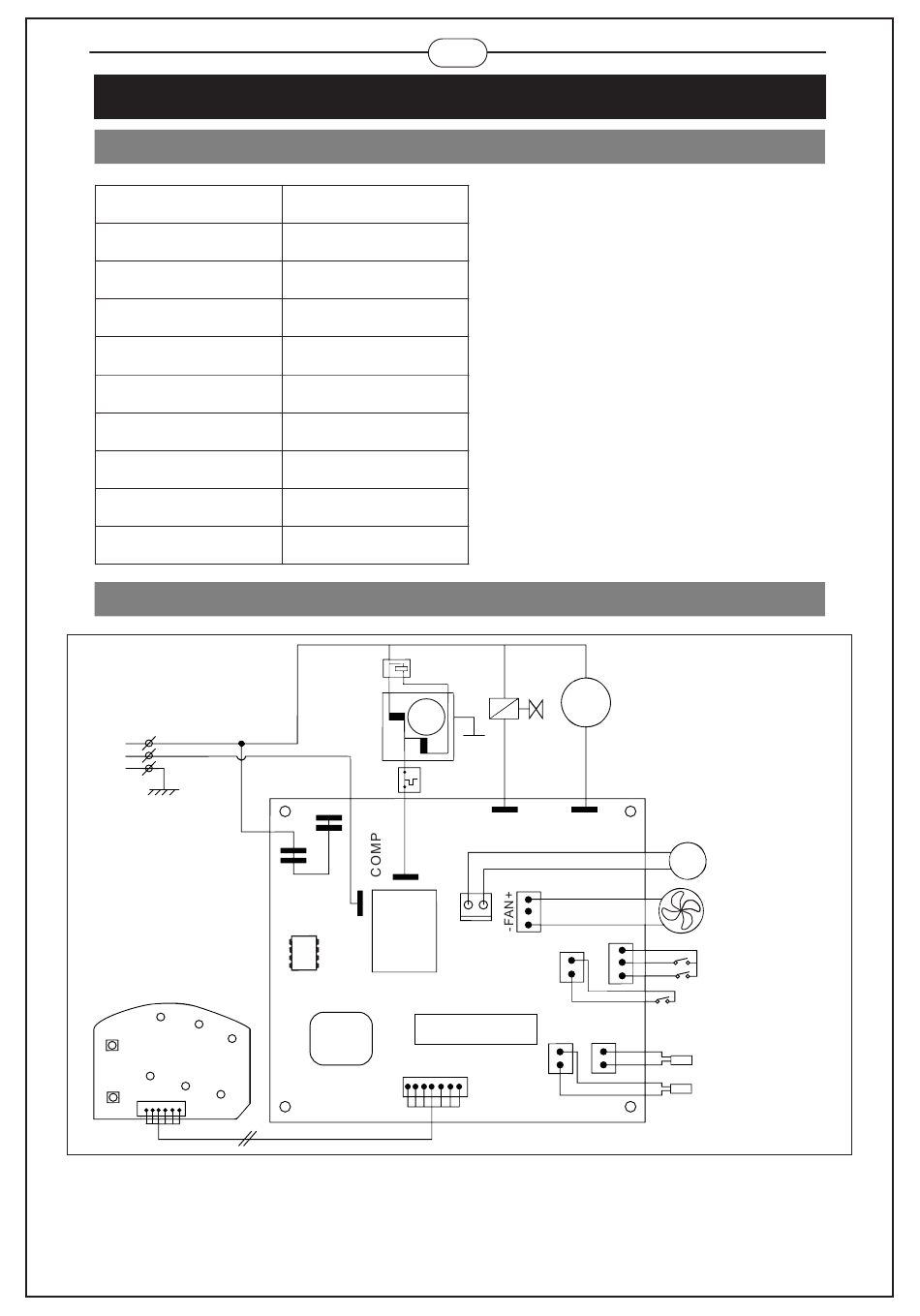

CIRCUIT DIAGRAM

ELECTRICAL
DIAGRAMFOR
ICE-MAKER
N
L
G
POWER
SUPPLY
AC-N
OPERATION PCB
LED2
SET
LED1
LED3
LED6(ON/OFF)
LED5(ICE)
LED4(WATER)
ON/OFF
EN
800-115
I
SN/N/ST/T
220-240V~50Hz
1.0A
1.2A
R290/25g
10.5 kg
C H
5 1 0
Plastic
Start Relay
MW
M
COMPRESSOR
AW
over load
protector
AC-L Relay
-PUMP+
MAIN CONTROL PCB
MCU
T1
6
SM
Soenoid
Motor For Ice shovel
Valve
MOTOR
VALVE
DC
Water Pump
DC
Fan Motor
MICRO SWITCH
MICRO SWITCH
WATER DETECTION
SWITCH
SENSOR FOR
T1
CONTROLLING
FAN MOTOR
T2
SENSOR FOR ICE
FULL DETECTING
