4.2 - Installation of DoubleDimmer-Control
1. Switch off the mains voltage (disable the fuse).
2. Open the wall switch box.
3. Connect the device in accordance with one of the following diagrams.

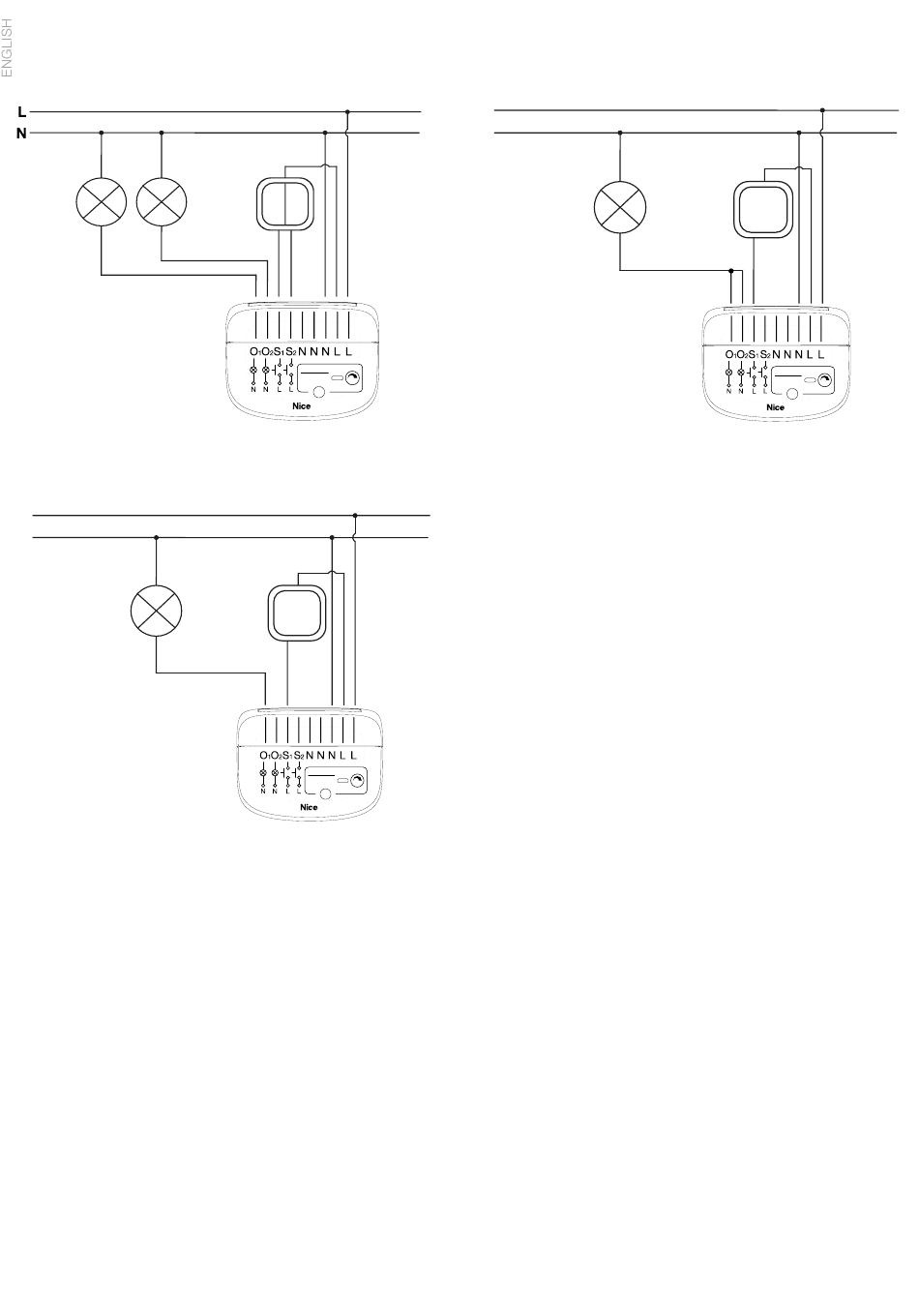

Diagram 1: Double-circuit connection - independent outputs
L
N
Diagram 3: Single-circuit connection - independent outputs
4. After verifying the correctness of the connection, switch the mains voltage back on.
5. Add the device to the Z-Wave network.
6. Switch off the mains voltage, then place the device in the wall switch box.
7. Close the wall switch box and switch the mains voltage back on.
• S1 and S2 have the function of activating learning mode. You can activate the learning mode (adding/removing) for 10 minutes after switching
on the device.
• By default, the switch connected to S1 terminal turns on/off and dims/brightens the first load, whereas the switch connected to S2 terminal
turns on/off and dims/brightens the second load. With parameter 24 Buttons orientation you can change input assignment without the need
to change electrical connections
• After switching on the mains voltage, LED indicator signals the Z-Wave network inclusion state with a color:
Green - the device added to the non-secure, S0 or S2 Unauthenticated mode
Magenta - the device added to the S2 Authenticated mode
Red - the device not added
4.3 - Installation of DoubleDimmer-Control with bypasses
NICE LED Adaptor is compatible with NICE DoubleDimmer-Control (FGD-223). We recommend installing LED adaptor when low-power LED
bulbs are used. NICE LED Adaptor helps prevent glowing or flickering of lights when they're switched off. You can install one bypass per channel.
4
PROG
3x CLICK TO
ADD/REMOVE
PROG
3x CLICK TO
ADD/REMOVE
L
N
Diagram 2: Single-circuit connection - connected outputs
Notes for the diagrams
S1 - Terminal for the 1
S2 - Terminal for the 2
L - Terminal for the live lead connected internally
O1 - Output terminal of the 1
O2 - Output terminal of the 2
N - Terminal for the neutral lead connected internally
PROG - Service button (used to add/remove the device and
navigate the menu)
PROG
3x CLICK TO
ADD/REMOVE
wall switch
st
wall switch
nd
channel
st
channel
nd
