Transport, installation and commissioning

4.1 Transport
Use lifting equipment such as a crane or forklift to transport the device. The lifting
equipment must be suitable, tested and approved.
Please note the following instructions during transport:
• Use suitable tools to secure the device against slipping or tipping over.
• When transporting the device, only place loads on suitable points.
• Remove the transport devices after transport.

4.2 Installation and commissioning

To avoid damage to the device or injury to persons, please observe
The following notes apply during installation and commissioning:
• Installation and commissioning may only be carried out by trained specialists
from a recognized specialist trade company in the SHK sector, taking the
necessary safety measures into account.
• Before starting the installation, check the device for completeness and pos-
sible transport damage. The following components are included in the deli-
very:
- Device as ordered, pre-assembled
- Operating instructions
- Maintenance key Dualfilter MAGella twister
• Place the device on a firm and level surface.
• Do not install the device in areas subject to frost.
• When choosing the installation location, take into account the space requi-
red for carrying out maintenance work (e.g. changing the mixed bed resin,
cleaning the dual filter).
• Lay cables and pipes so that they do not pose a tripping hazard. Mark una-
voidable tripping hazards.
• Connect the device to the power supply correctly, observing the electrical
connection data (see section "8 Technical data" on page 55).
26
Transport, installation and commissioning | Heaty Racun 300 Advanced Plus
• If a connection to the building management system is planned, this work
must be carried out by a qualified electrician. Please note the terminal plan
(see section "9.4 Modbus address tree" from page 64).
The device is intended for permanent installation in a heating or cooling system.
Please note the following instructions during installation:
Before installing the device, familiarize yourself with the specific struc-
•
ture of the heating or cooling system. For proper integration, contact
the manufacturer. The integration is determined based on a schematic
drawing.
• Choose the points for integrating the device into the return flow of the hea-
ting or cooling system so that they are far enough apart. A short circuit must
be avoided. Please pay attention to the flow direction so that the treated
water can no longer enter the measuring area.
• Install an 1 1/2" connection piece with shut-off at each point in the return flow
of the heating or cooling system.

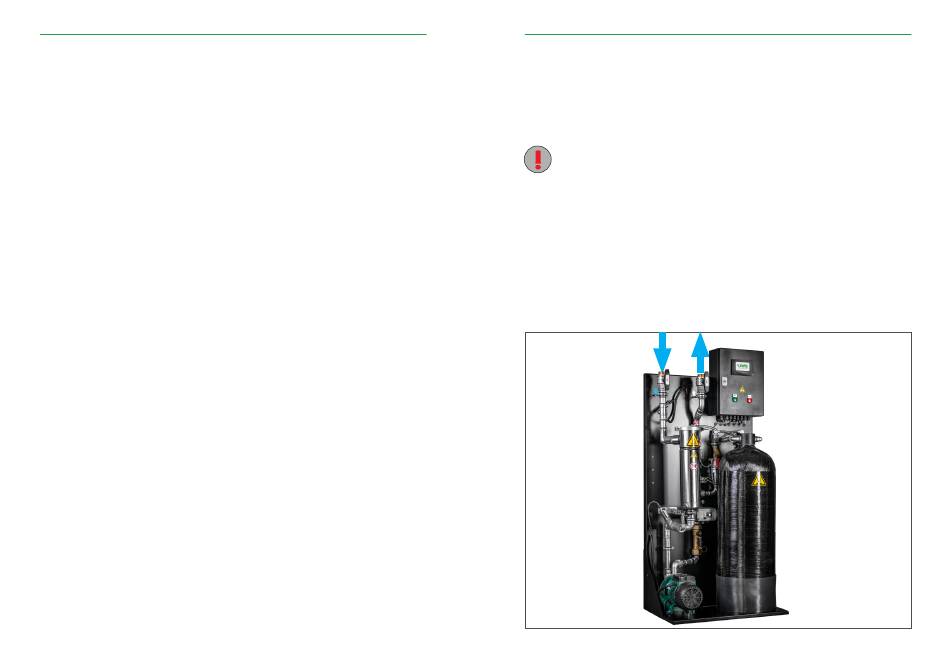

• Lay pipes from the connection nozzles to the circulating water inlet and the
circulating water outlet of the device:
27
