Heaty Racun 300 Advanced Plus | Device description
3.2 Circulation water inlet
The return flow of the heating or cooling system is connected to the circulating wa-
ter inlet. The circulating water of the system, whether heating or cooling system, is
transported through the device and mixed back into a distant return line.
3.3 Differential pressure gauge
The differential pressure gauge is used to measure the degree of contamination
of the dual filter. It switches off at a differential pressure of 1.75 bar to protect the
dual filter.
3.4 Dual filter (magnetite and fine filter)
The dual filter MAGella twister10 is a unique, highly efficient system filter for ma-
gnetic and non-magnetic contaminants in heating systems. It includes an absolute
fine filter down to 1 μm and a magnetraw with 11 x 12,000 Gauss. For further infor-
mation on the MAGella twister10, please see page 51 and page 56.
3.5 Recirculation pump
The circulation pump pumps the water through the device.
3.6 Outlet circulating water
The return flow of the heating or cooling system is connected to the circulating
water outlet. The treated water from the device is transported into the circuit of the
heating or cooling system through the circuit water outlet.
3.7 Touch display
You can access the device controls using the touch display. Settings can be made
and functions activated or deactivated in the touch display menus. For further infor-
mation, see section "5.1 Making settings in the control system" on page 30.
20
Device description | Heaty Racun 300 Advanced Plus
The display has the following controls:

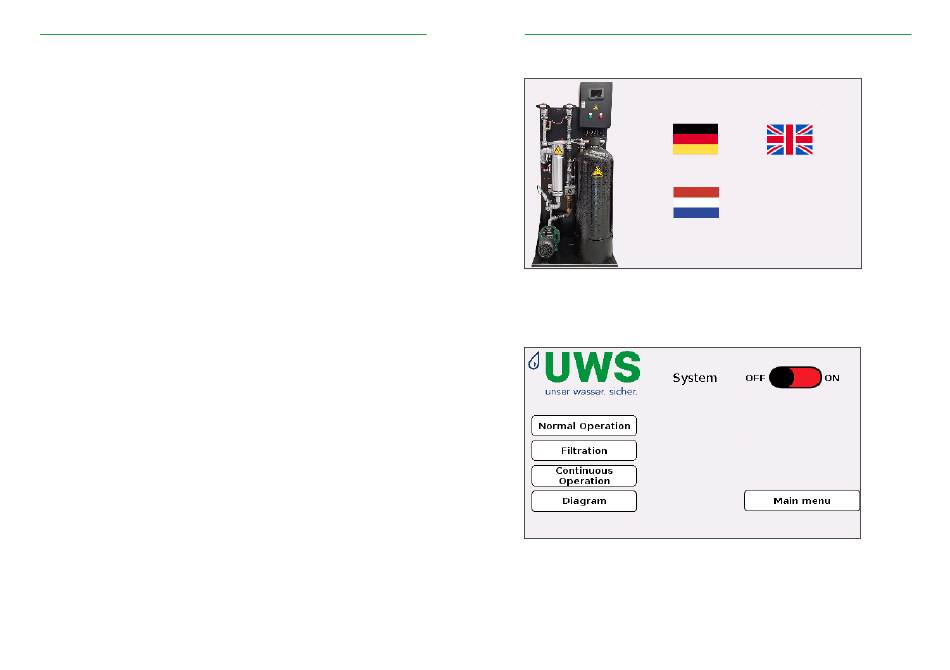

Figure 3-3: Start
When you start the device, the language selection appears:
German, English, Dutch
Figure 3-4: Switching on and off The slider is used to switch on and off.
By touching the slider the status can be changed
21
