Heaty Racun 300 Advanced Plus | Applicable documents

9.2 MAGella twister10

In this section you will find illustrations and the characteristic curve of the installed
MAGella twister10.

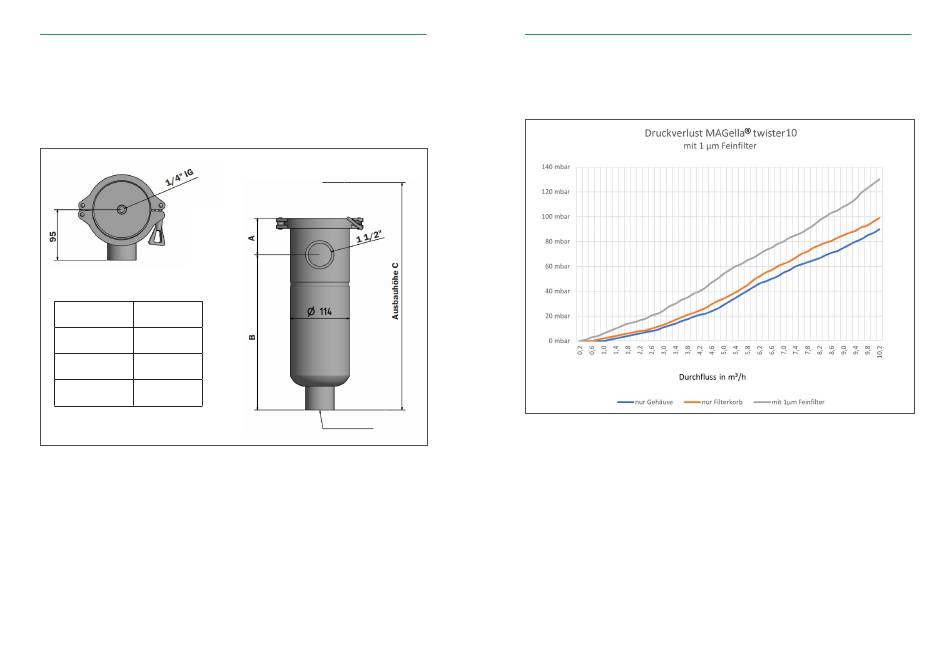

9.2.1 Drawings

MAGella twister 10
A (mm) 70
B (mm) 450
C (mm) 900
Figure 9-9: Dimensions MAGella twister10
60
Relevant documents | Heaty Racun 300 Advanced Plus

9.2.2 characteristic curve

The flow resistance diagram of the MAGella twister10 shows the following charac-
teristic curve:
Figure 9-10: Dual filter characteristic curve
61
