Evolution EVO200 ENGINE Originalanleitung Seite 14

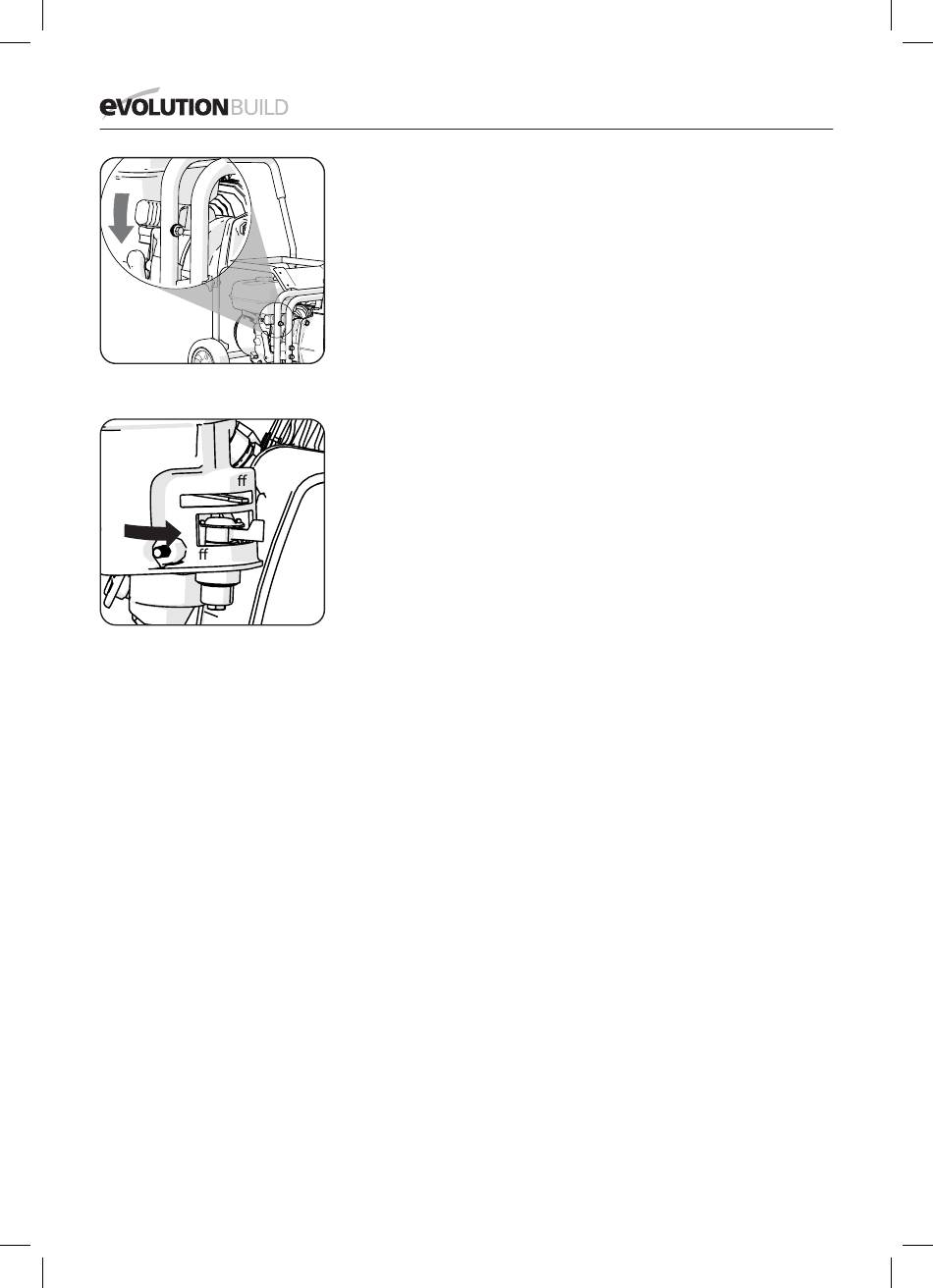

Fig 10
on o
o on
Fig 11
14
®
alignment or adjustments are necessary.
• Be gentle and patient, the coupling is precisely engineered
and no great force is required to connect the accessories.
Once the operator has mastered the 'technique',
accessory connection will become straight forward.
• Firmly push the engine and accessory together until the
'click' of docking is heard. The Uni-coupling release lever
(Fig. 10) will return to its neutral position.
6. Disconnecting an accessory
Note: Before attempting to remove any accessory ensure that the
engine is switched off, stationary and cold. Some components
(e.g. the exhaust system) can remain very hot for a considerable
time after the engine is switched off, and there is a burn risk for
the unwary user.
• Ensure that the engine is on a clean, stable and horizontal surface.
• Allow the engine and the attached accessory to fully cool down
from their working temperatures.
• Hold the accessory at a convenient point on its external frame.
• Operate the 'Uni-coupling' release lever with one hand (Fig. 10)
whilst gently easing the accessory outwards releasing it from
the coupling with the other hand.
• Using both hands gently pull the accessory from the engine.
The accessory may be heavy (e.g. the generator) so enlist
competent help with accessory removal if necessary .
• Store the accessory carefully in a secure location for future use
Refit the coupling protection cover.
OPERATION
Note: The EVO-SYSTEM Engine cannot be operated without an
accessory being connected. Some components will become very
hot during operation (e.g. the exhaust system and surrounding
components). The operator should employ due diligence and care
when using this machine.
• Position the engine on firm level ground and lock the
transportation wheels by operating the wheel brake.
• Deploy the Accessory Mounting Frame to the fully down position.
• Connect the required accessory.
• Check the oil level and fuel levels.
Note: If either fluid levels require 'topping up' follow previously
outlined instructions (Refer to 'Checking Oil Level' and 'Safety
Instructions For Fuel Filling'). Do not try to start the engine until
fluid levels have been checked and adjusted and a visual safety
check has been completed.
