Note: Change the oil according
to the Maintenance Summary Chart
(Refer also to MAINTENANCE – Engine oil replacement )
5. Connecting an accessory
Your EVO-SYSTEM Engine has a unique coupling that enables
a variety of Evolution accessories to be connected to and be
driven by this machine. This coupling is engineered to very fine
tolerances and must be kept clean and free from dirt, debris etc.
A cover for coupling protection is provided with each accessory and
should be used whenever the accessory is 'remote' from the engine.
If you experience difficulty in accessory connection, it could be
because the accessory location pins, or the annuli of either the
accessory or the engine are contaminated or damaged.
Refer to the MAINTENANCE section 5 which gives details of how
to clean the annuli mating rings and the accessory locating pins.
Note: The EVO-SYSTEM Engine has a micro switch incorporated
within the coupling design that senses when an accessory has
been successfully attached to the machine. The engine will not
start without an accessory being connected. It cannot be run as a
'stand alone' machine.

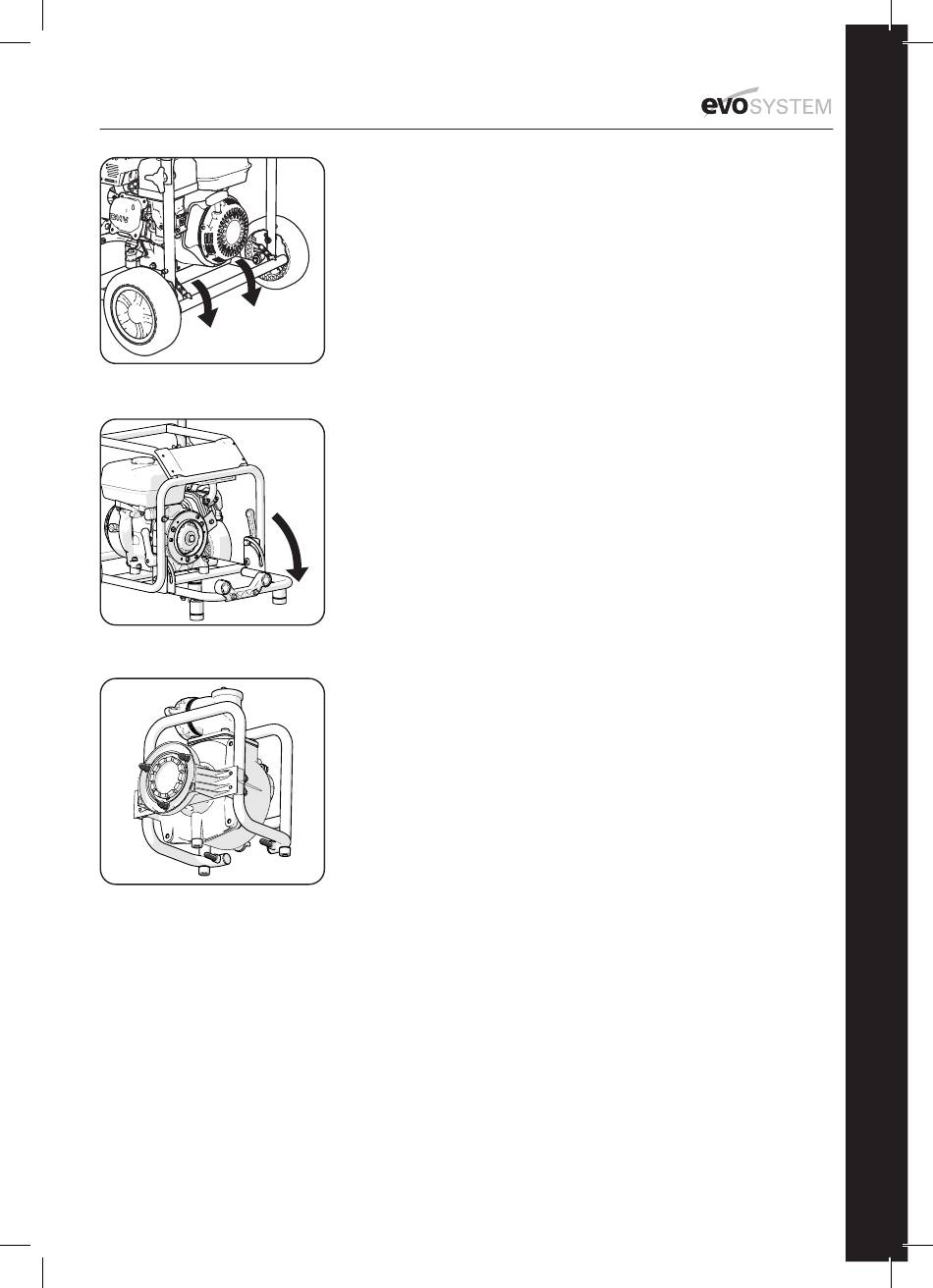

• Lock the Transportation Wheels using the wheel brake. (Fig. 7)
• Release the Accessory Mounting Frame by rotating the
locking levers to their unlocked (down) position and push-in.
• Deploy the Accessory Mounting Frame. (Fig. 8)
Note: It is important that the frame is correctly deployed for
successful accessory connection.
• Lock the frame into position by pulling out and returning
the locking levers to their locked (upright) position.
Note: Each accessory is equipped with 3 locating pins, and 2 rear
stabilising pins. The 3 locating pins lock into the 'Uni-coupling' the
2 stabilising pins slide into the sockets in the Accessory Mounting
Frame.
• Hold the accessory by its external frame and offer it up to the
engine. Visually align the 3 locating pins and 2 rear stabilising
pins. (Fig. 9) Enlist competent help if necessary. The generator
in particular is heavy and help with lifting may be required.
• Holding onto a convenient part of the external engine frame
can aid the operator achieving and maintaining alignment when
connecting an accessory.
• Gently push the accessory into the engine. Keep the 3 locating
pins and the two stabilising pins aligned with their respective
docking positions. The internal coupling between the engine
and the accessory will be made automatically. No component
