Evolution EVO200 ENGINE Originalanleitung Seite 12

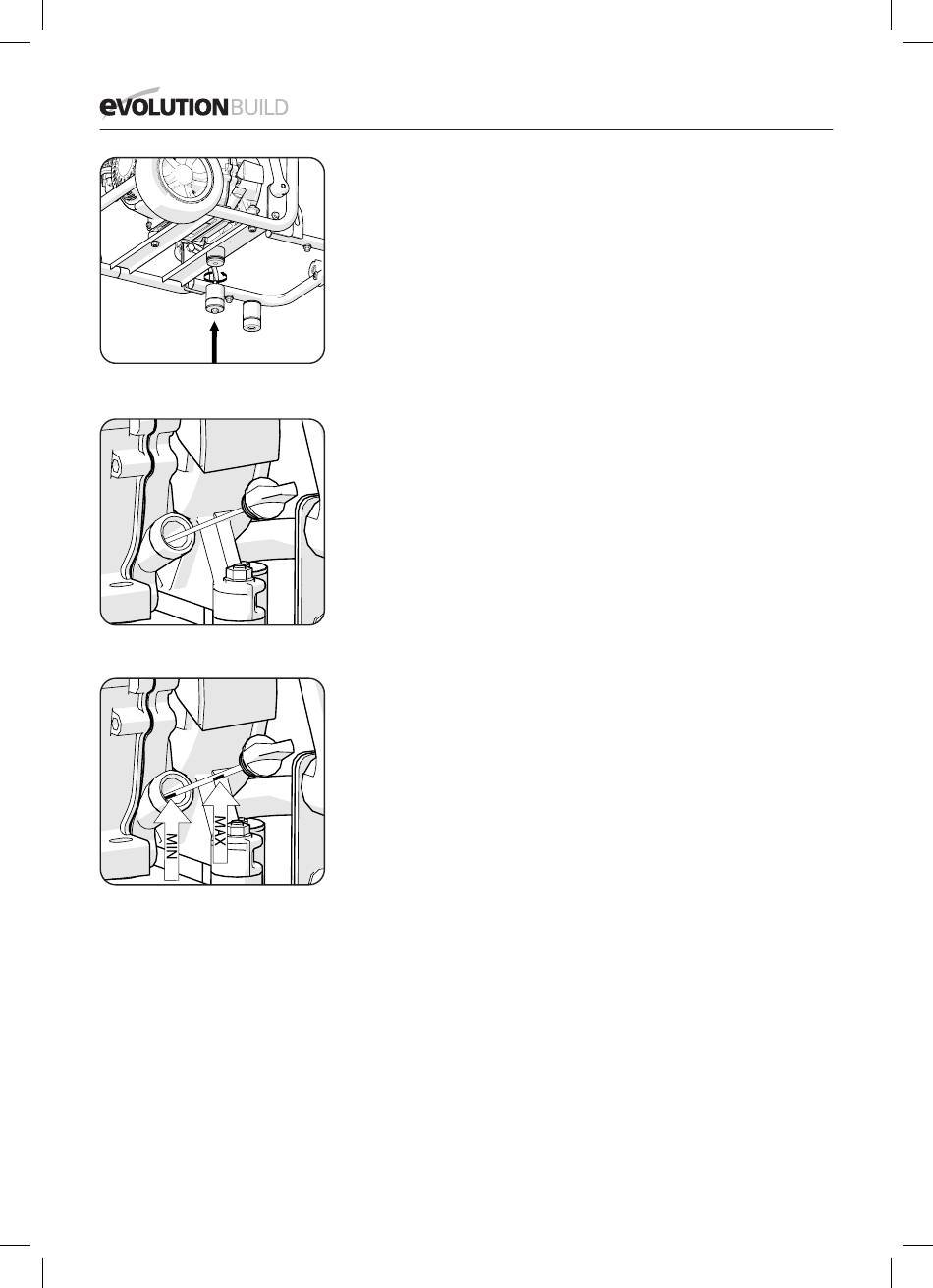

Fig 4
Fig 5
Fig 6
12
®
3. Attaching the 3 Support Feet
Three support feet are provided. All three are the same and are
inter-changeable with each other.
Two of the support feet fit onto to the accessory mounting frame
near the front corners.
The third support foot fits onto a boss located under the front
bottom cross member of the external frame.
To fit the support feet:
• Insert ø8mm bolts through the support feet with the bolt
heads positioned within the domed rubber feet.
• Screw the bolts into the captive nuts at the three locations
mentioned.
• Tighten the bolts securely using a suitable spanner (not provided).
Note: Access to the boss under the frame cross member may be
gained by tipping the machine backwards. Enlist competent help to
tilt the machine, and ensure that the wheel brake is applied before
the machine is tipped backwards. (Fig. 4)
4. Initial filling & checking the oil level
WARNING: This machine does not come filled with oil.
No attempt to start the engine must be made until the crank case
is filled to the correct level with the correct grade of oil. Oil (not
provided) should be poured into the machine through one of the
2 Oil Filler/Level Caps.
Note: Only one oil filler maybe accessible. Oil capacity is
approximately 0.6L of 10W 40 Automotive oil (available at all good
motor factors and most petrol stations).
These Caps unscrew from the machines engine casing and
incorporate an oil level dip stick. (Fig. 5) Take care not to spill any oil.
Note: It is important that when checking the oil level the machine
is on a stable, horizontal and level surface with the engine stopped
and cold. Two index marks are provided on the dipstick. The oil
level should be maintained near the top mark. (Fig. 6)
• Remove the relevant Oil Filler/Level Cap and wipe the dipstick
with a clean dry cloth.
• Pour in the required amount of oil. (600ml)
• Allow the oil to settle for a few seconds.
• Insert the dipstick into the machine but do not screw the
Cap into the casing.
• Withdraw the dipstick and visually check the oil level.
• Adjust as necessary.
• When the level is correct tighten the Oil Filler/Level Cap
securely into the engine casing.
