probst SVZ-UNI Betriebsanleitung Seite 59

Operation

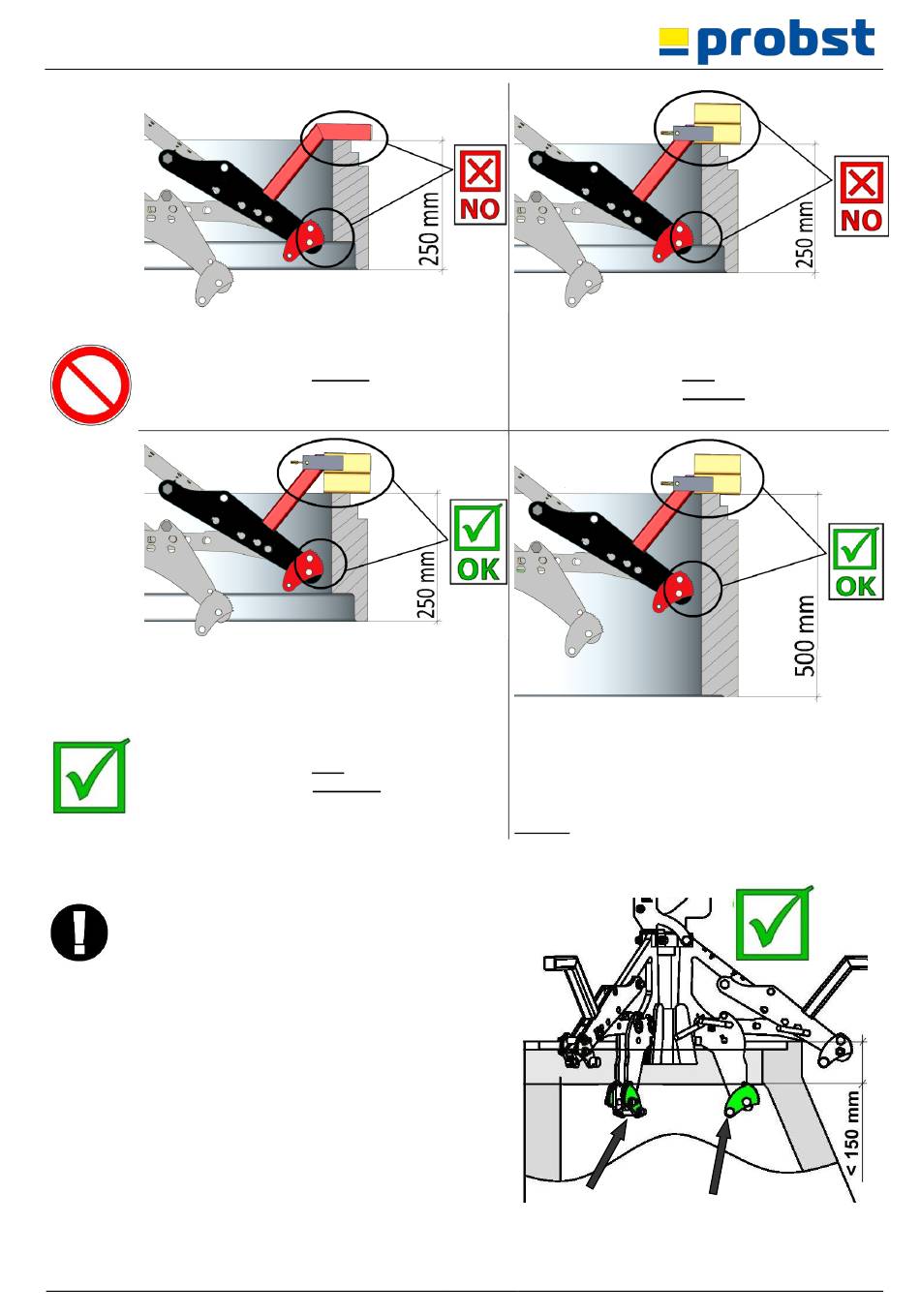

Fig. 1 shows a manhole ring with a minimum total
height of 250 mm (10") without "adaptor kit for
SVZ-UNI" (4400.0079).
Fig. 3 shows a manhole ring with a minimum total
height of 250 mm (10") with "adaptor kit for SVZ-
UNI" (4400.0079) fitted correctly.
6.1.3 Shaft cones
When gripping shaft cones with bracket III mind,
that all three brackets are gripping below of the
cylindrical part of the of the manhole cover
opening (see Fig.5).
I.e. the cylindrical part may have a maximum
allowable measure of 150 mm (< 150 mm) .
54000046
Bild 1
Bild 3
23 / 30
Bild 2
Fig. 2 shows a manhole ring with a minimum total
height of 250 mm (10") with "adaptor kit for SVZ-
UNI" (4400.0079) fitted wrongly.
Bild 4
Fig. 4 shows a manhole ring with a larger total
height as 250 mm (eg 500 mm / ~ 19,5") with
"adaptor" fitted for normal use of SVZ-UNI"
(4400.0079).
Reason: so that the adaptor cannot get lost.
Fig.
5
GB
