Installation

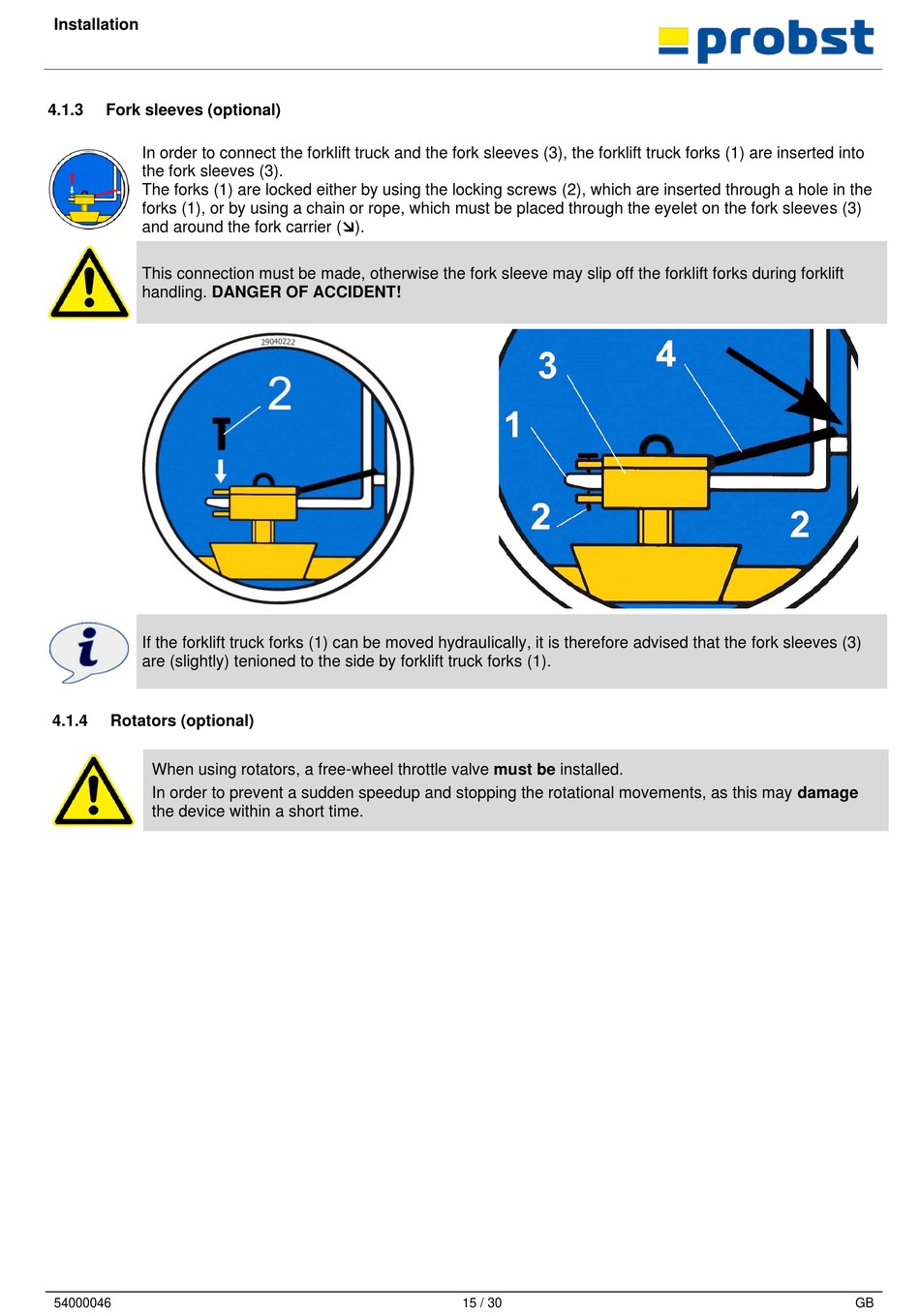

4.1.3 Fork sleeves (optional)
In order to connect the forklift truck and the fork sleeves (3), the forklift truck forks (1) are inserted into
the fork sleeves (3).
The forks (1) are locked either by using the locking screws (2), which are inserted through a hole in the
forks (1), or by using a chain or rope, which must be placed through the eyelet on the fork sleeves (3)
and around the fork carrier ().
This connection must be made, otherwise the fork sleeve may slip off the forklift forks during forklift
handling. DANGER OF ACCIDENT!
If the forklift truck forks (1) can be moved hydraulically, it is therefore advised that the fork sleeves (3)
are (slightly) tenioned to the side by forklift truck forks (1).
4.1.4 Rotators (optional)
When using rotators, a free-wheel throttle valve must be installed.
In order to prevent a sudden speedup and stopping the rotational movements, as this may damage
the device within a short time.
