Spare parts overview
20.10 Hydraulic pump mount
Pos. Designation
1 Hexagon nut
2 Washer
3 Hydraulic pump mount
4 V-belt
5 Belt pulley ø 112 mm
6 Cylinder screw
7 Bearing support
8 Hexagon nut
9 Gear pump
10 Pump flange
11 Cylinder screw
12 Pump flange
13 Hexagon nut

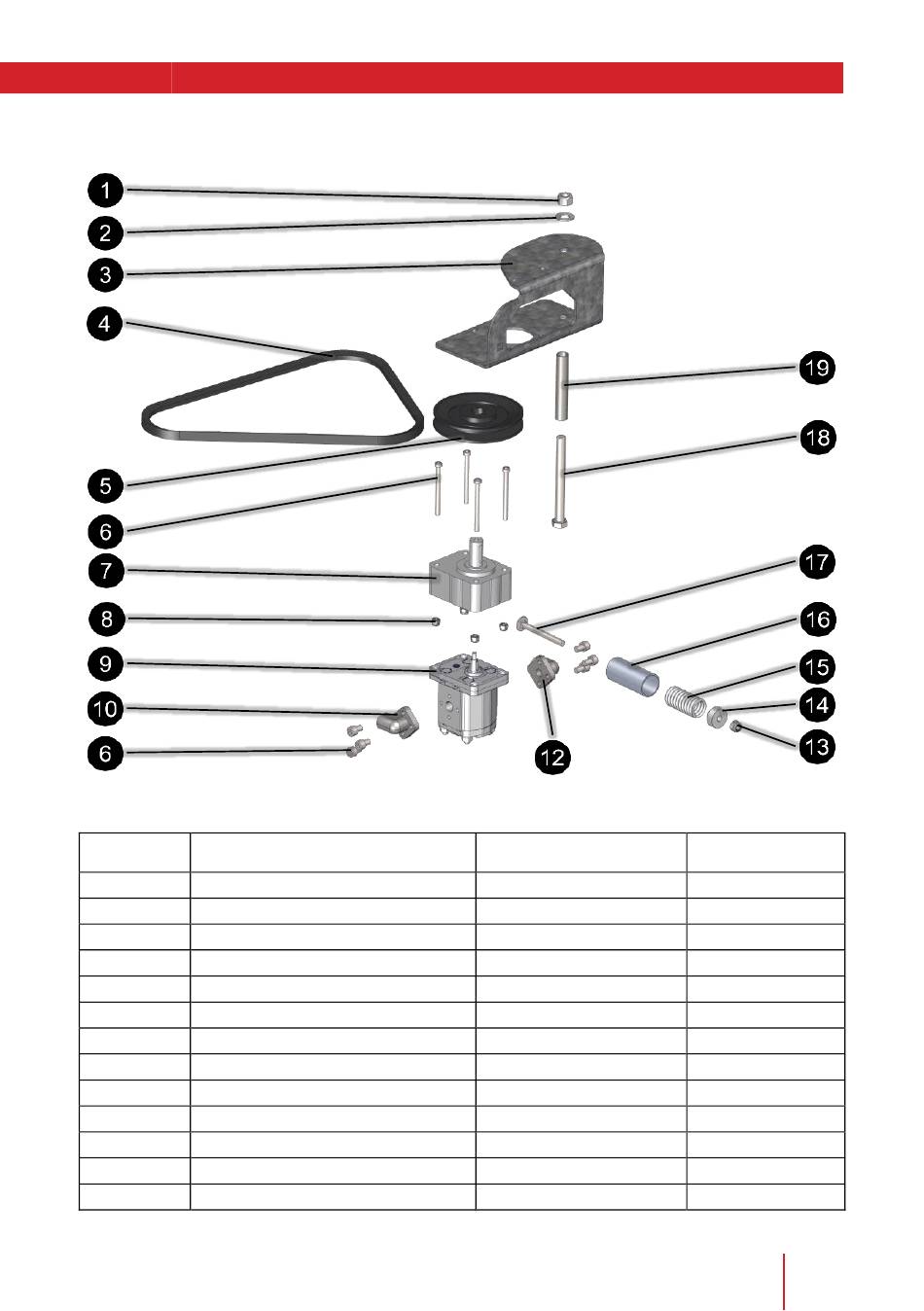

Fig. 52: Hydraulic pump mount spare parts
Item no.
DIN-985-M12
DIN-125-13,0
KT-00-01177
DR-00-00156
DIN-912-M6x70
KT-00-00655
DIN-985-M6
KT-00-01177
HY-00-00152
DIN-4762-M6x20V2A
HY-00-00152
DIN-985-M8
Quantity
1
1
1
1
1
4
1
4
1
1
6
1
4
