13
Maintenance and servicing
13.7 Changing V-belt
The drive belt is accessible via the maintenance hatches on the left and right of the
vehicle. To replace the belt, the preload is loosened or tightened via the belt ten-
sioner. The belt is adjusted according to Fig. 30 placed or removed around the belt
pulleys.
For subsequent adjustment of the belt tension chap. 13.5.
13.8 Measures after maintenance
After completing all maintenance work, perform the following steps:
✓ Make sure that all previously loosened bolts are tightened.
✓ Make sure that all previously removed safety devices and covers are properly
reinstalled.
✓ Make sure that all tools, materials and other equipment that have been used are
removed from the working area.
✓ Clean the working area and remove any spilled liquids. Remove cleaning material
such as cleaning rags etc.
✓ Make sure that all safety devices function properly.

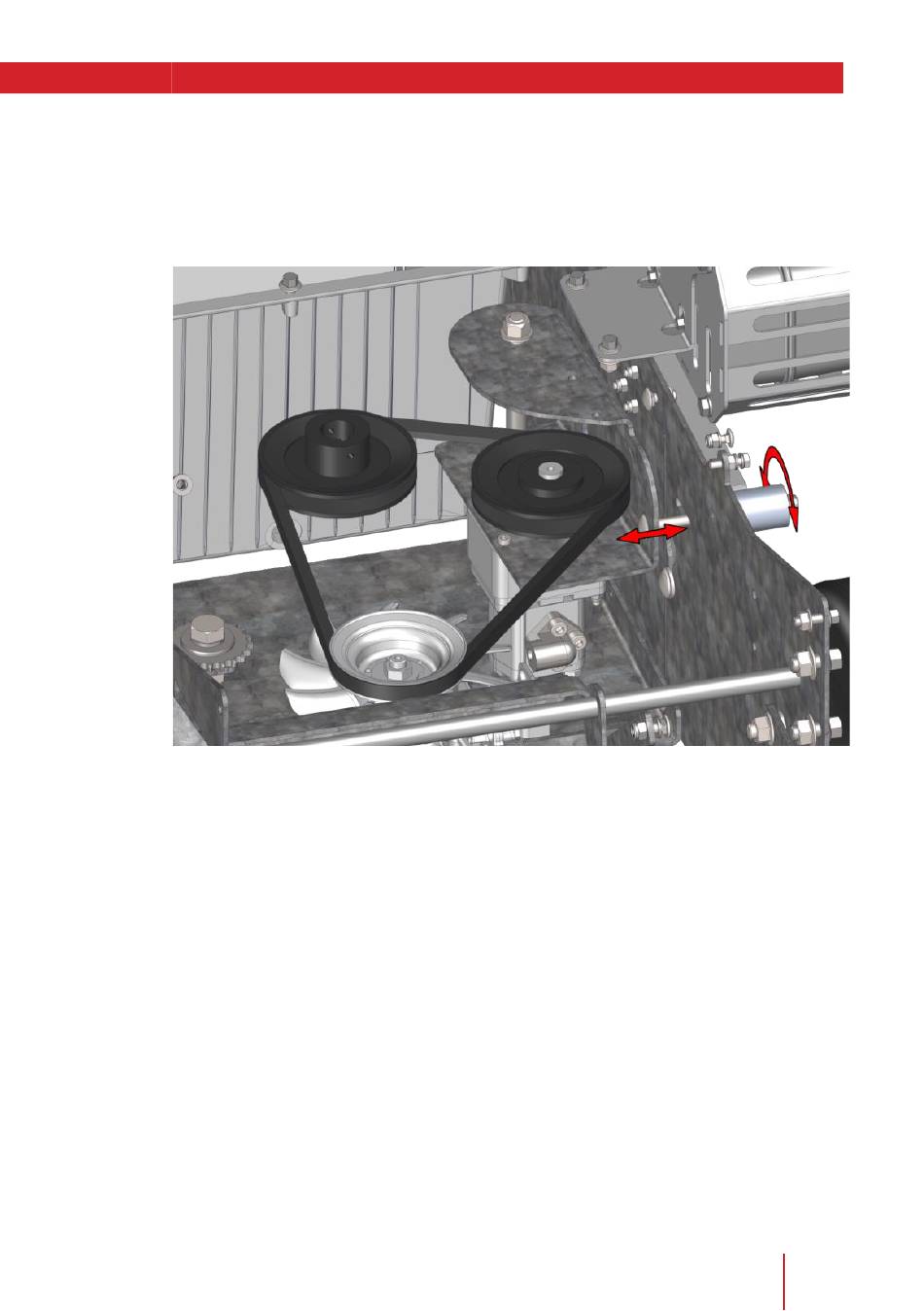

Fig. 30: Changing V-belt
