Operation

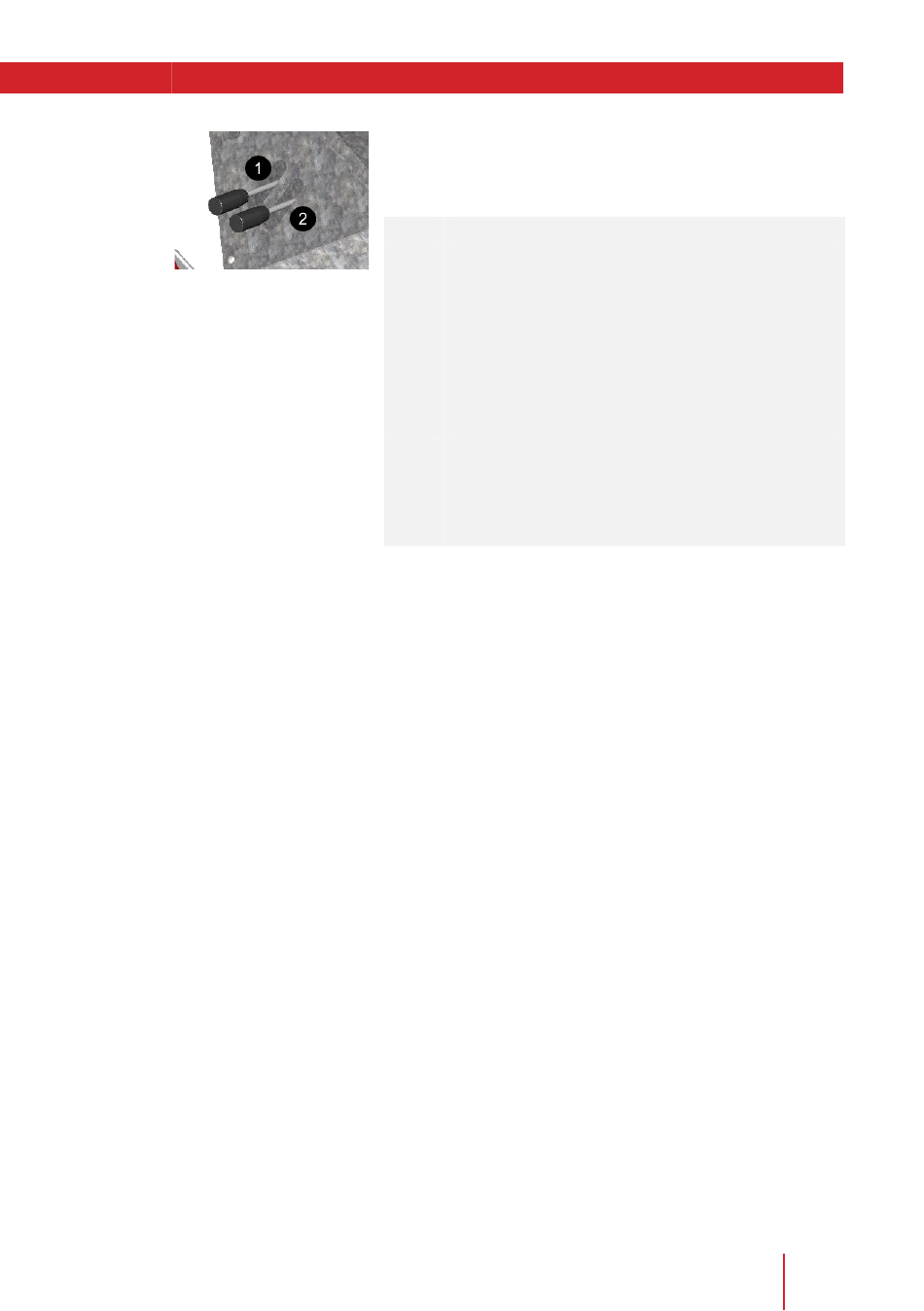

Fig. 20: Hydraulic control
elements
Hydraulic control elements
The CM2 PRO attachments are operated using the
hydraulic control elements.
Pos.
Function
1
Lifting and lowering the attachment. The
direction of actuation is independent of the
direction of connection of the attachment to
the hydraulic plug-in couplings.
The floating position of the hydraulic system is
achieved by pushing the operating lever into the
latching position.
The floating position may only be used for
equipment approved by the manufacturer.
Direction of rotation of the rotating parts of the
2
attachment. The direction of actuation is
independent of the direction of connection of
the attachment to the hydraulic plug-in
couplings.
