Spare parts overview
20.9 Steering console
Pos. Designation
1 Hexagon head screw with flange
2 Hexagon head screw
3 Hexagon nut
4 Hexagon head screw
5 Hexagon nut
6 Push button PE
7 Manual control valve
8 Rubber blanket
9 Steering console
10 Round-head bolt
11 Self-locking nut
12 SVK sleeve
13 Spacer tube
14 Lower steering shaft
15 Steering column cover
16 Cardan joint
17 Upper steering shaft

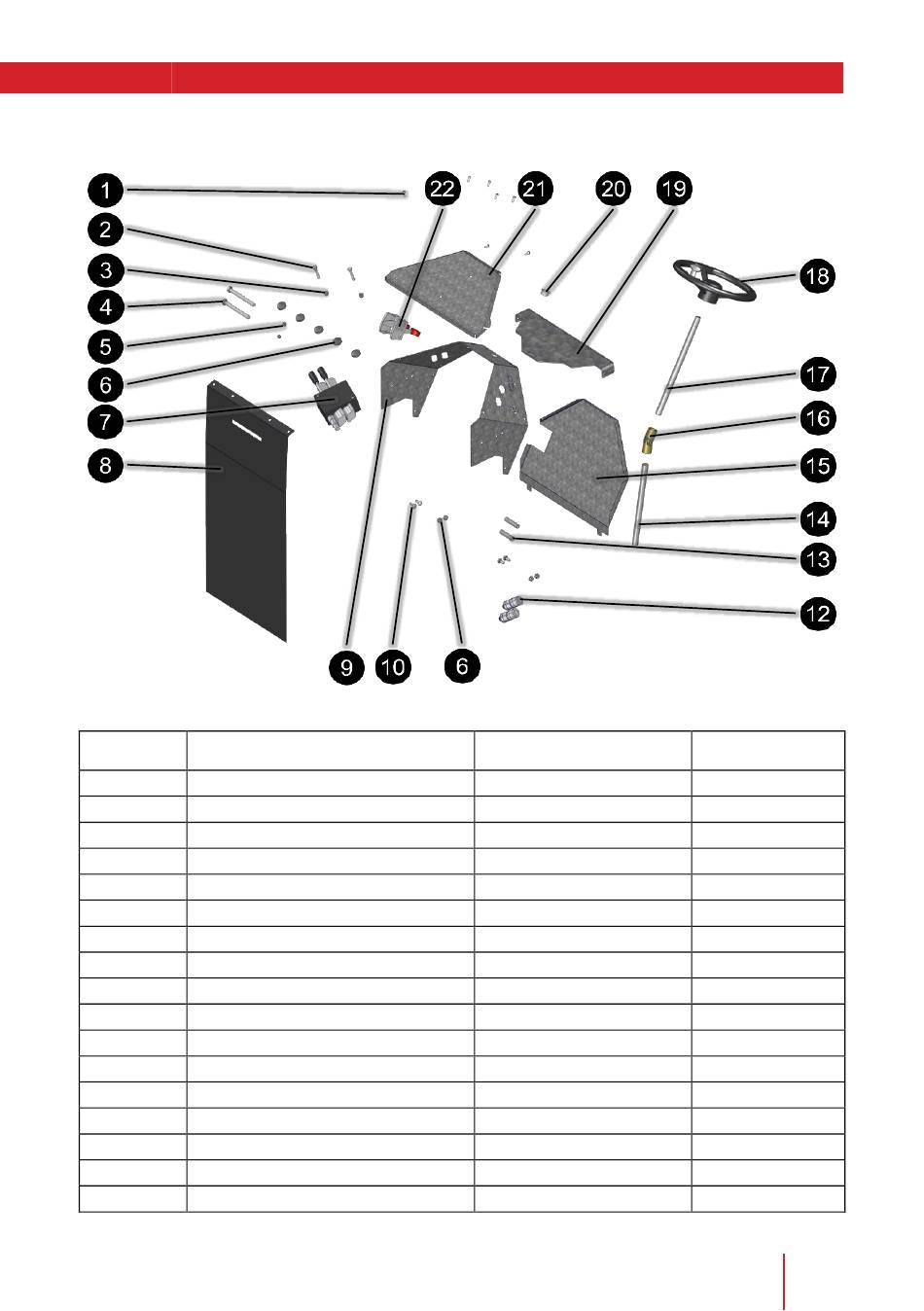

Fig. 51: Steering console spare parts
Item no.
DIN-6921-M6x16
DIN-933-M8x70
DIN-985-M8
DIN-931-M12x120
DIN-985-M6
KT-00-00221
KT-00-00533
PE-00-00038
LA-00-01223
DIN-603-M8x20
DIN-SZ-M8
HY-00-00171
HYR-00-00028
DR-00-00232
LA-00-01237
KT-00-00067
DR-00-00233
Quantity
8
2
2
2
2
5
1
1
1
4
4
2
2
1
1
1
1
