Spare parts overview
Left side panel
20.1.1
Pos. Designation
1 Self-locking nut
2 Left side panel
3 Hexagon head screw
4 Chain wheel
5 Chain tensioner angle
6 Hexagon nut
7 Hexagon nut
8 Hexagon nut
9 Ball catch
10 Maintenance door
11 Countersunk screw
12 Hinge
68

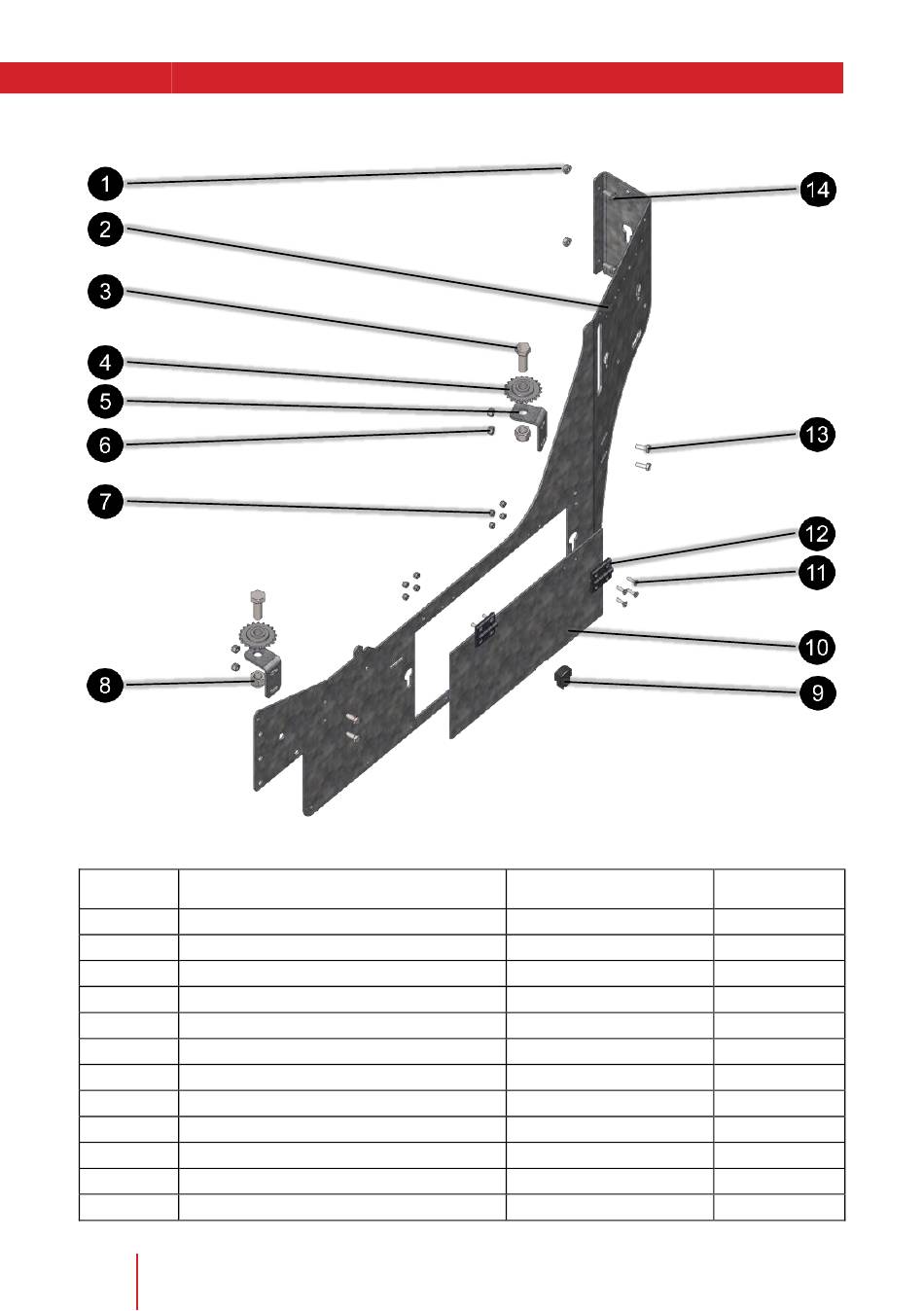

Fig. 32: Left side panel spare parts
Item no.
DIN-SZ-M8
LA-00-01216
DIN-933-M16x45
KT-00-00199
LA-00-00724
DIN-985-M8
DIN-985-M6
DIN-985-M16
KT-00-01102
LA-00-01244
DIN-7991-M6x20
KT-00-00904
Quantity
2
1
2
2
2
4
8
2
1
1
8
2
