Spare parts overview
20.4 Lift
Equipment mount
20.4.1
Pos. Designation
1 Hexagon nut
2 Mudguard washer
3 Liner
4 Lift cover mirrored
5 Right bolt
6 Equipment mount
7 Hexagon head screw
8 Lift shaft
9 Left bolt
10 Hexagon head screw with flange
11 Connecting plate
12 Lift cover
82

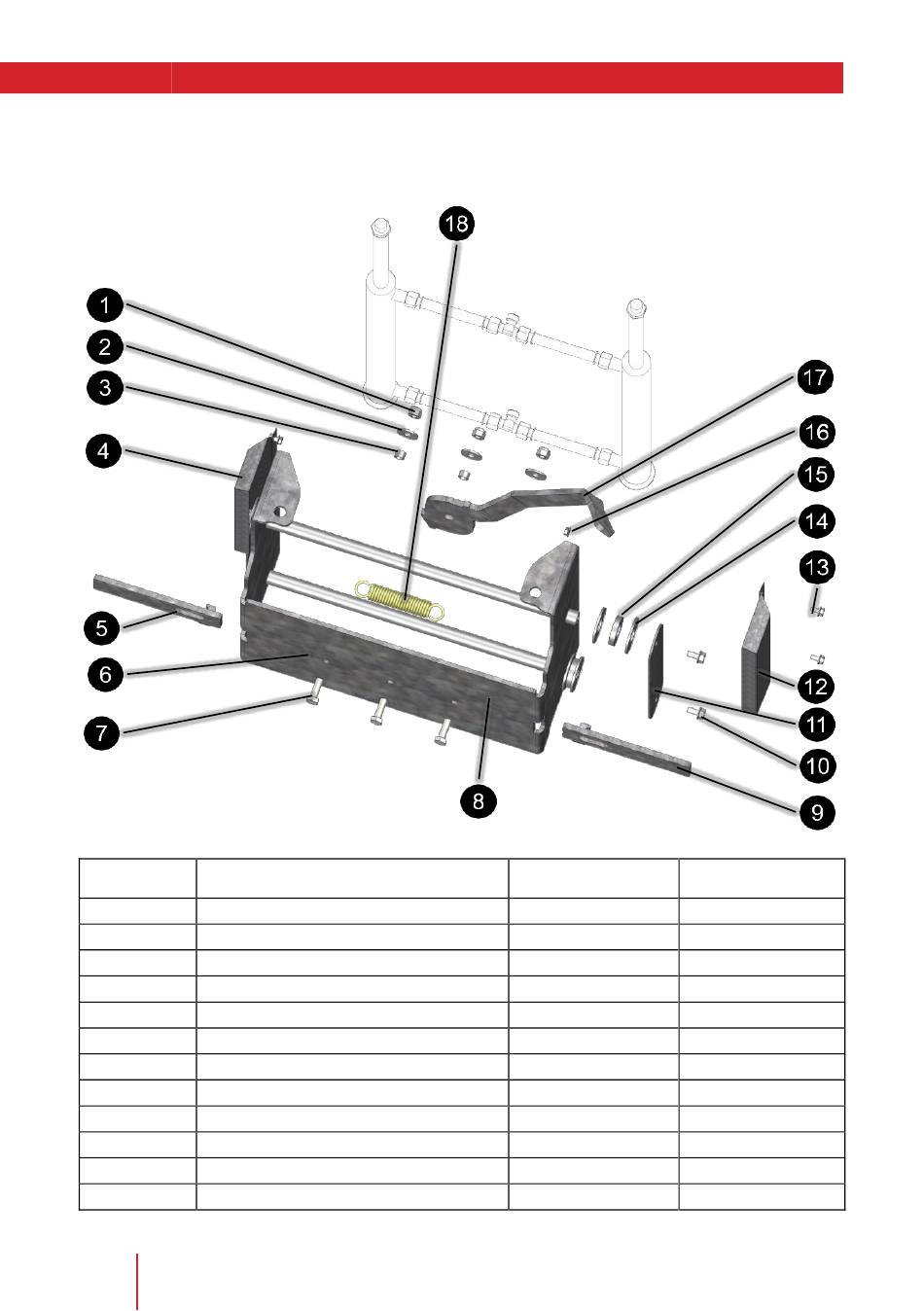

Fig. 44: Equipment mount spare parts
Item no.
DIN-985-M10
DIN-9021-10,5
DR-00-00179
LA-00-01241
LA-00-00850
LA-00-01225
DIN-933-M10x30
DR-00-00159
LA-00-00851
DIN-6921-M8x20
LA-00-00903
LA-00-01240
Quantity
3
3
3
1
1
1
3
2
1
4
2
1
