Scan Monitor
● The recording starts after the first vibration.
● The recording lasts for 30 seconds.
● End of measurement is confirmed by a double vibration.
d. How to take an SpO2 recording
● Tighten the band so that the back of the watch is in contact with the skin of the wrist.
● Rest your arm on a table, with the hand relaxed and in an open position
● Activate the SpO2 measure using the watch interface
● The recording starts after a first vibration
● The recording lasts 30 seconds, do not talk or move during the measurement
● The end of the measurement is confirmed by a double vibration
● If the measurement fails, restart from the beginning and slightly push the watch with your
right hand

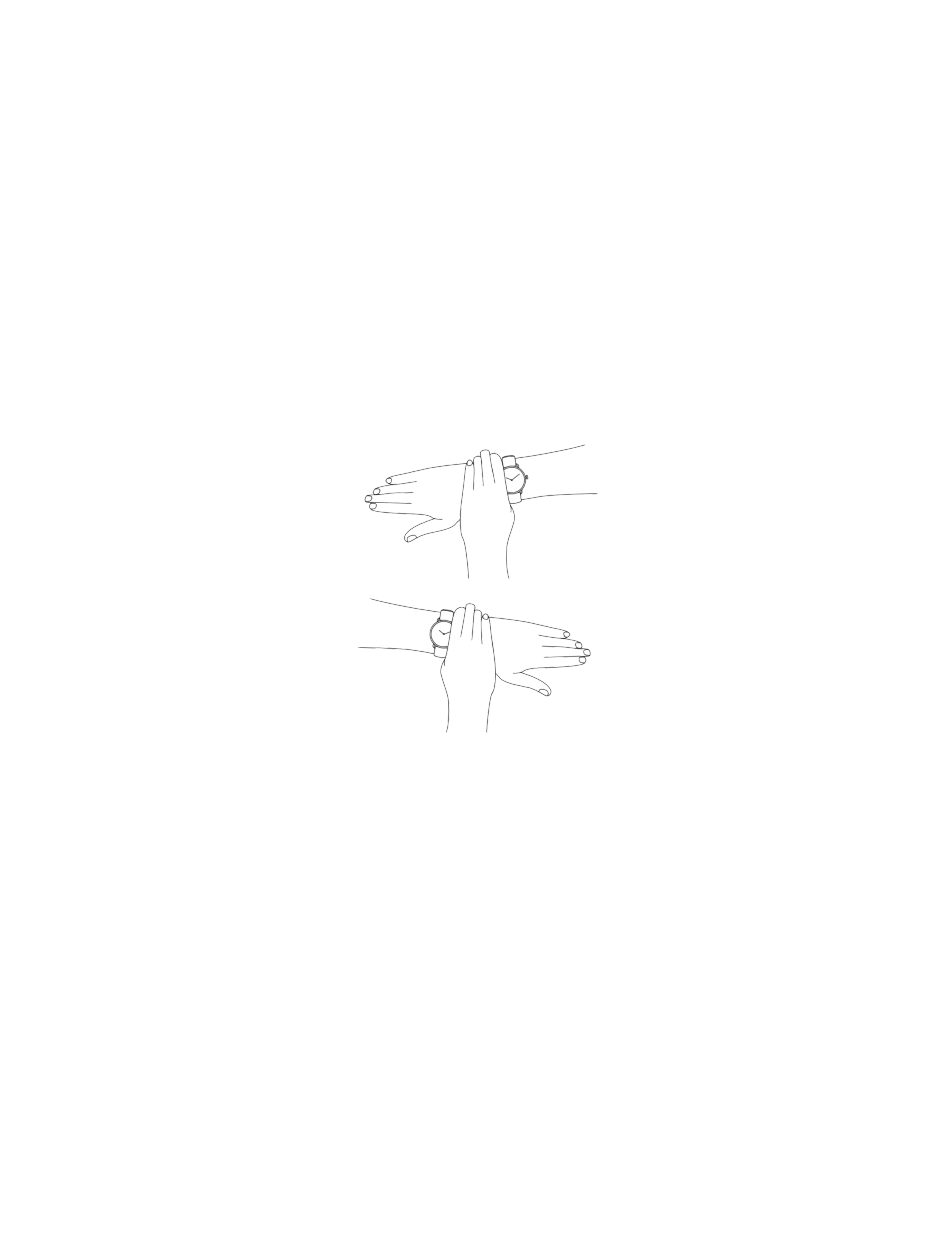

Fig. 2 - How to place second hand to get an SpO2 measurement
3. ECG Analysis
● After a successful reading, you will receive one of the following classifications on your
Scan Monitor:
○ Sinus Rhythm: a sinus rhythm result means the heart is beating in a uniform
pattern between 50-100 BPM.
○ Atrial Fibrillation: an AFib result means the heart is beating in an irregular pattern
above 50 BPM.
○ Inconclusive: An inconclusive result means the recording can't be classified. This
can happen for many reasons such as not resting your arms on a table during a
recording, or your ScanWatch is too loose. Certain physiological conditions may
prevent a small percentage of users from creating enough signal to produce a
good recording.
○ Low or High Heart Rate: A heart rate under 50 BPM or over 100 BPM affects the
ECG app's ability to check for AFib and the recording is considered inconclusive.
