As required: Install the plug-in module.
Insert the contacts of the plug-in module into the female connector provided (steps ⑤, ⑥).
Insert the fastening screws through the plug-in module and screw the fastening screws
clockwise into the threaded bolts. Tightening torque: 0.4 Nm (step ⑦)
As required: Connect the interface cable to the plug-in module.
As required: Replace the fuse.
Carefully remove the defective fuse from the holder.
4 3 2 1
1
F1
GEL 6505B, design U:
Detail of the interior view
1
Position of fuses F1 to F5
Dispose of the defective fuse
Shorten the connection wires of the new fuse to 10 mm.
GEL 6505B, SS1121: Final dimension of the connection wires in millimeters
NOTICE
Incorrect connection!
●
Ensure that both connection wires fit correctly into the holder.
Carefully insert the new fuse into the holder.
Closing the housing cover
NOTICE
Penetration of foreign bodies or liquids!
●
Ensure that the seal in the housing cover is correctly positioned.
Place the housing cover on the housing, insert the four Phillips head screws through the
housing cover and screw the Phillips head screws clockwise into the housing. Tightening
torque: 1.5 Nm (steps ⑧, ⑨)
Repair is completed.

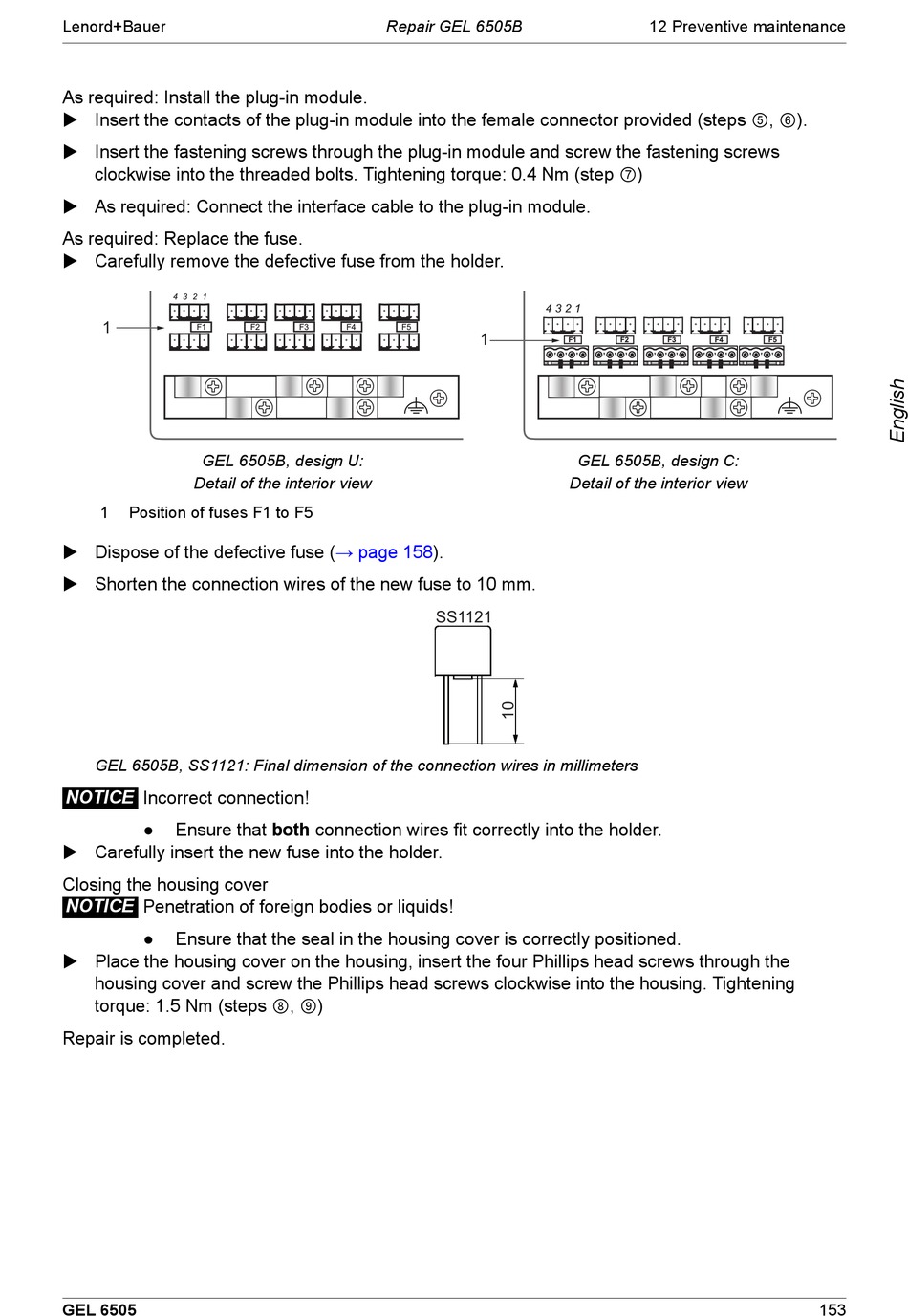

GEL 6505
Repair GEL 6505B
F2
F3
F4
F5
(→ page
158).
4 3 2 1
1
F1
GEL 6505B, design C:
Detail of the interior view
SS1121
