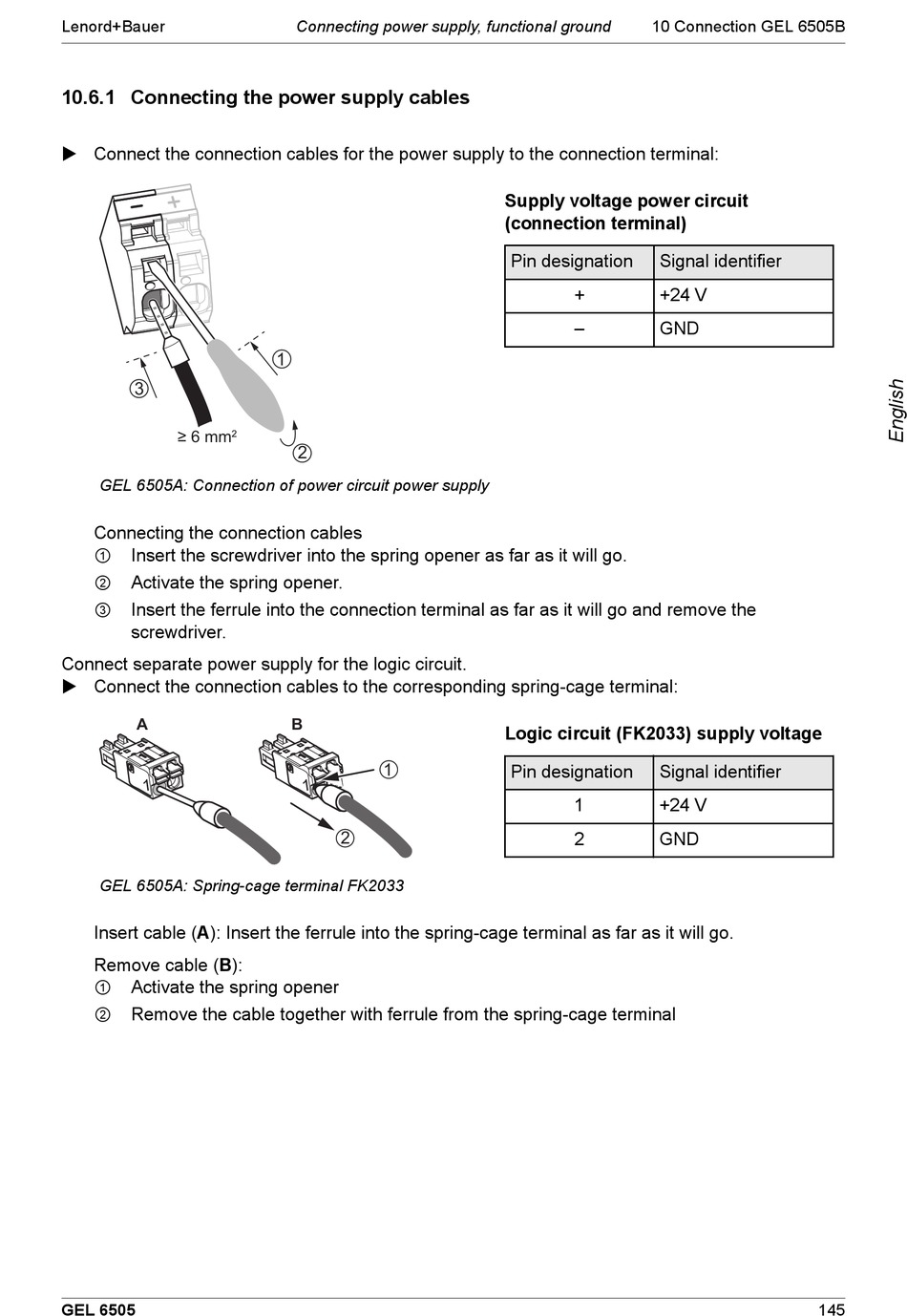

10.6.1 Connecting the power supply cables
 Connect the connection cables for the power supply to the connection terminal:
3
≥ 6 mm 2
GEL 6505A: Connection of power circuit power supply
Connecting the connection cables
①
Insert the screwdriver into the spring opener as far as it will go.
②
Activate the spring opener.
③
Insert the ferrule into the connection terminal as far as it will go and remove the
screwdriver.
Connect separate power supply for the logic circuit.
 Connect the connection cables to the corresponding spring-cage terminal:
A
GEL 6505A: Spring-cage terminal FK2033
Insert cable (A): Insert the ferrule into the spring-cage terminal as far as it will go.
Remove cable (B):
①
Activate the spring opener
②
Remove the cable together with ferrule from the spring-cage terminal
GEL 6505
Connecting power supply, functional ground
1
2
B
1
2
10 Connection GEL 6505B
Supply voltage power circuit
(connection terminal)
Pin designation Signal identifier
+ +24 V
– GND
Logic circuit (FK2033) supply voltage
Pin designation Signal identifier
1 +24 V
2 GND
