12 Preventive maintenance
12.2 Repair GEL 6505A
12.2.1 Accessories und tools
Cover
● Torque screwdriver, Phillips head size PH2
Plug-in module
● Plug-in module including fastening screws M3
● Torque screwdriver, Torx T10
● Torque screwdriver for SUB-D connectors of interface cables (depending on the screw)
Fuse
● Fuse, item number: SS1121
● Tweezers
● Side cutter
12.2.2 Installing and removing the plug-in module or fuse
2

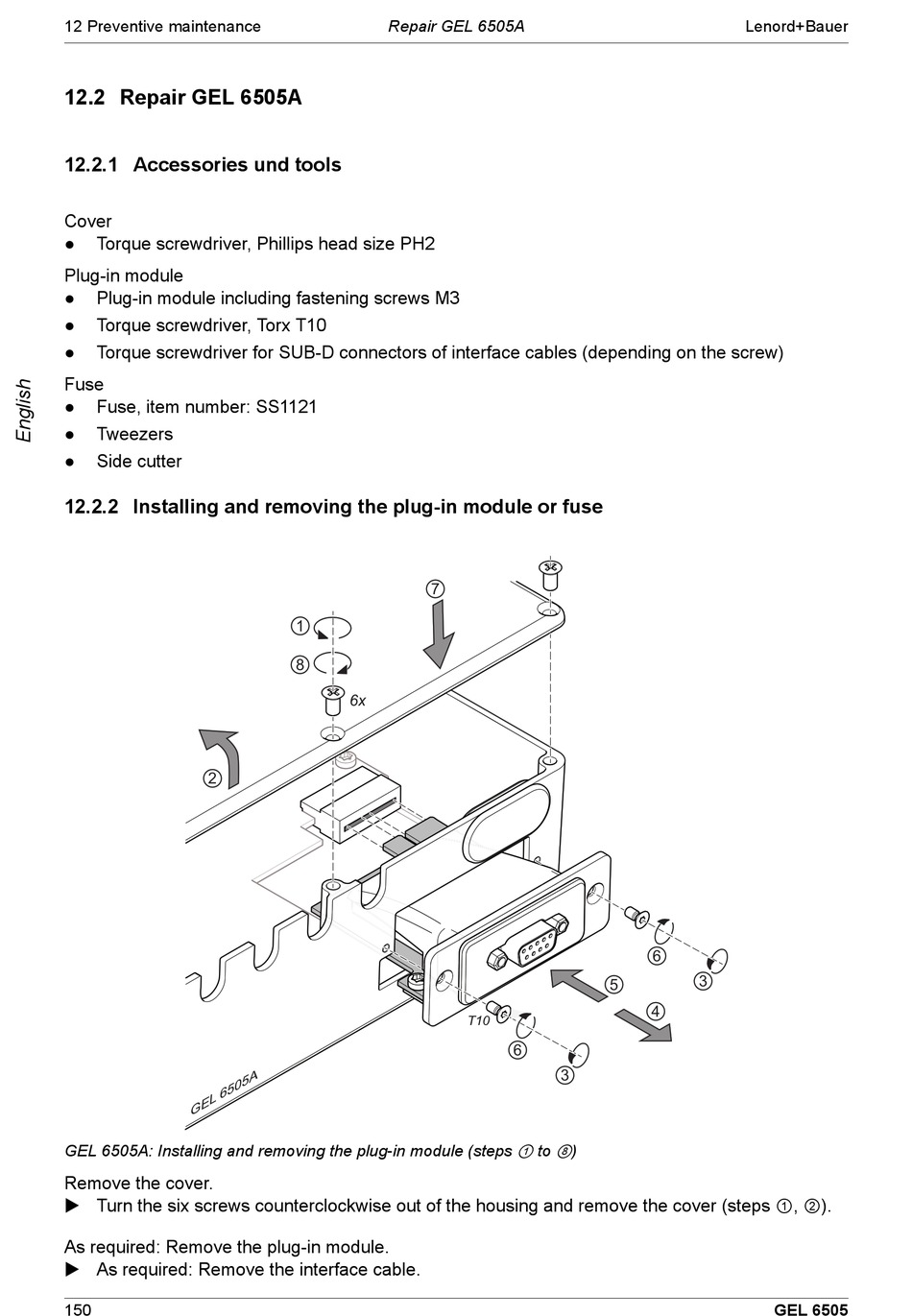

GEL 6505A: Installing and removing the plug-in module (steps
Remove the cover.
 Turn the six screws counterclockwise out of the housing and remove the cover (steps ①, ②).
As required: Remove the plug-in module.
 As required: Remove the interface cable.
