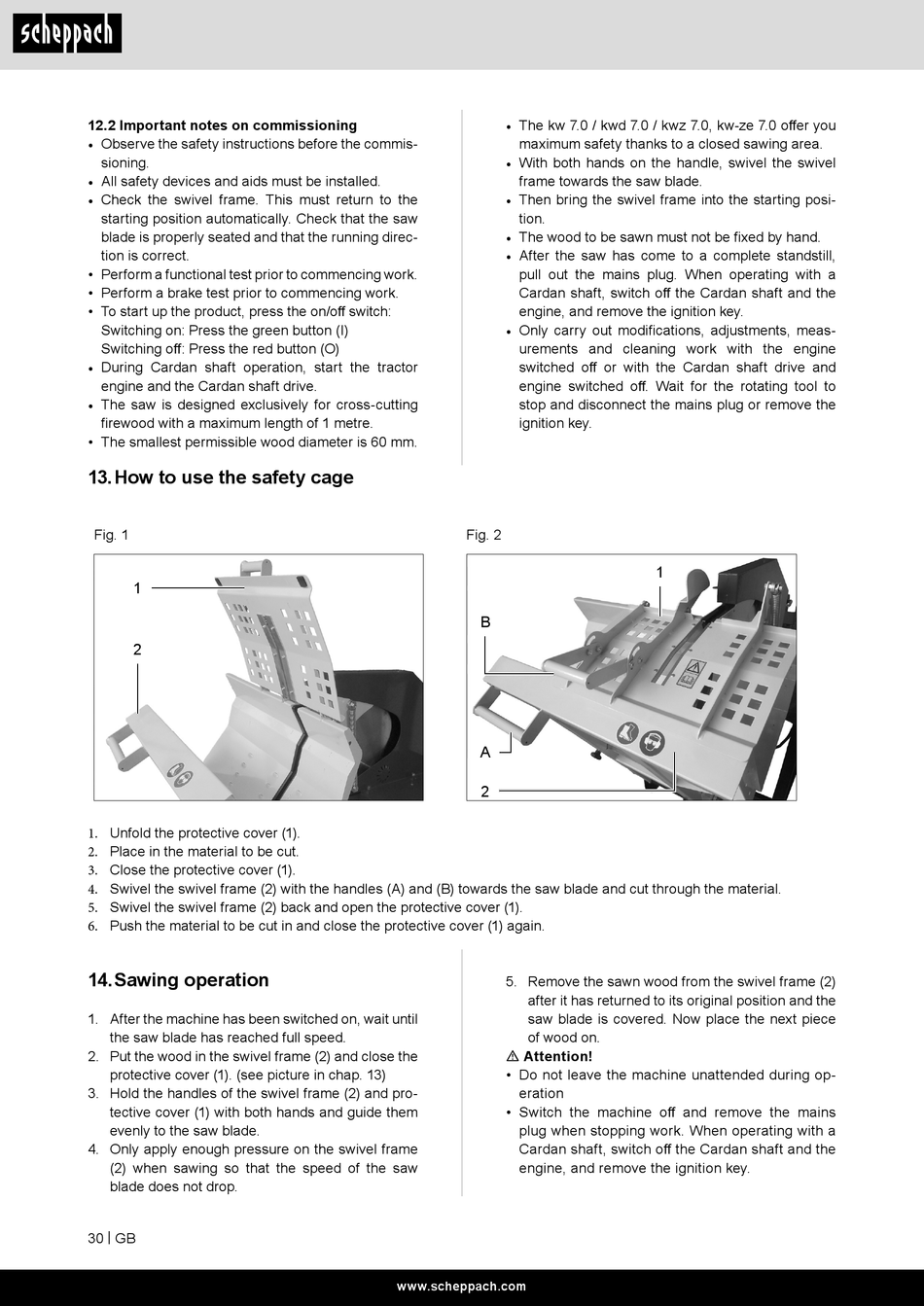

12.2 Important notes on commissioning
• Observe the safety instructions before the commis-
sioning.
• All safety devices and aids must be installed.
• Check the swivel frame. This must return to the
starting position automatically. Check that the saw
blade is properly seated and that the running direc-
tion is correct.
• Perform a functional test prior to commencing work.
• Perform a brake test prior to commencing work.
• To start up the product, press the on/off switch:
Switching on: Press the green button (I)
Switching off: Press the red button (O)
• During Cardan shaft operation, start the tractor
engine and the Cardan shaft drive.
• The saw is designed exclusively for cross-cutting
firewood with a maximum length of 1 metre.
• The smallest permissible wood diameter is 60 mm.
13. How to use the safety cage
Fig. 1
1
2
1. Unfold the protective cover (1).
2. Place in the material to be cut.
3. Close the protective cover (1).
4. Swivel the swivel frame (2) with the handles (A) and (B) towards the saw blade and cut through the material.
5. Swivel the swivel frame (2) back and open the protective cover (1).
6. Push the material to be cut in and close the protective cover (1) again.
14. Sawing operation
1. After the machine has been switched on, wait until
the saw blade has reached full speed.
2. Put the wood in the swivel frame (2) and close the
protective cover (1). (see picture in chap. 13)
3. Hold the handles of the swivel frame (2) and pro-
tective cover (1) with both hands and guide them
evenly to the saw blade.
4. Only apply enough pressure on the swivel frame
(2) when sawing so that the speed of the saw
blade does not drop.
30 | GB
• The kw 7.0 / kwd 7.0 / kwz 7.0, kw-ze 7.0 offer you
maximum safety thanks to a closed sawing area.
• With both hands on the handle, swivel the swivel
frame towards the saw blade.
• Then bring the swivel frame into the starting posi-
tion.
• The wood to be sawn must not be fixed by hand.
• After the saw has come to a complete standstill,
pull out the mains plug. When operating with a
Cardan shaft, switch off the Cardan shaft and the
engine, and remove the ignition key.
• Only carry out modifications, adjustments, meas-
urements and cleaning work with the engine
switched off or with the Cardan shaft drive and
engine switched off. Wait for the rotating tool to
stop and disconnect the mains plug or remove the
ignition key.
Fig. 2
B
A
2
5. Remove the sawn wood from the swivel frame (2)
after it has returned to its original position and the
saw blade is covered. Now place the next piece
of wood on.
m Attention!
• Do not leave the machine unattended during op-
eration
• Switch the machine off and remove the mains
plug when stopping work. When operating with a
Cardan shaft, switch off the Cardan shaft and the
engine, and remove the ignition key.
