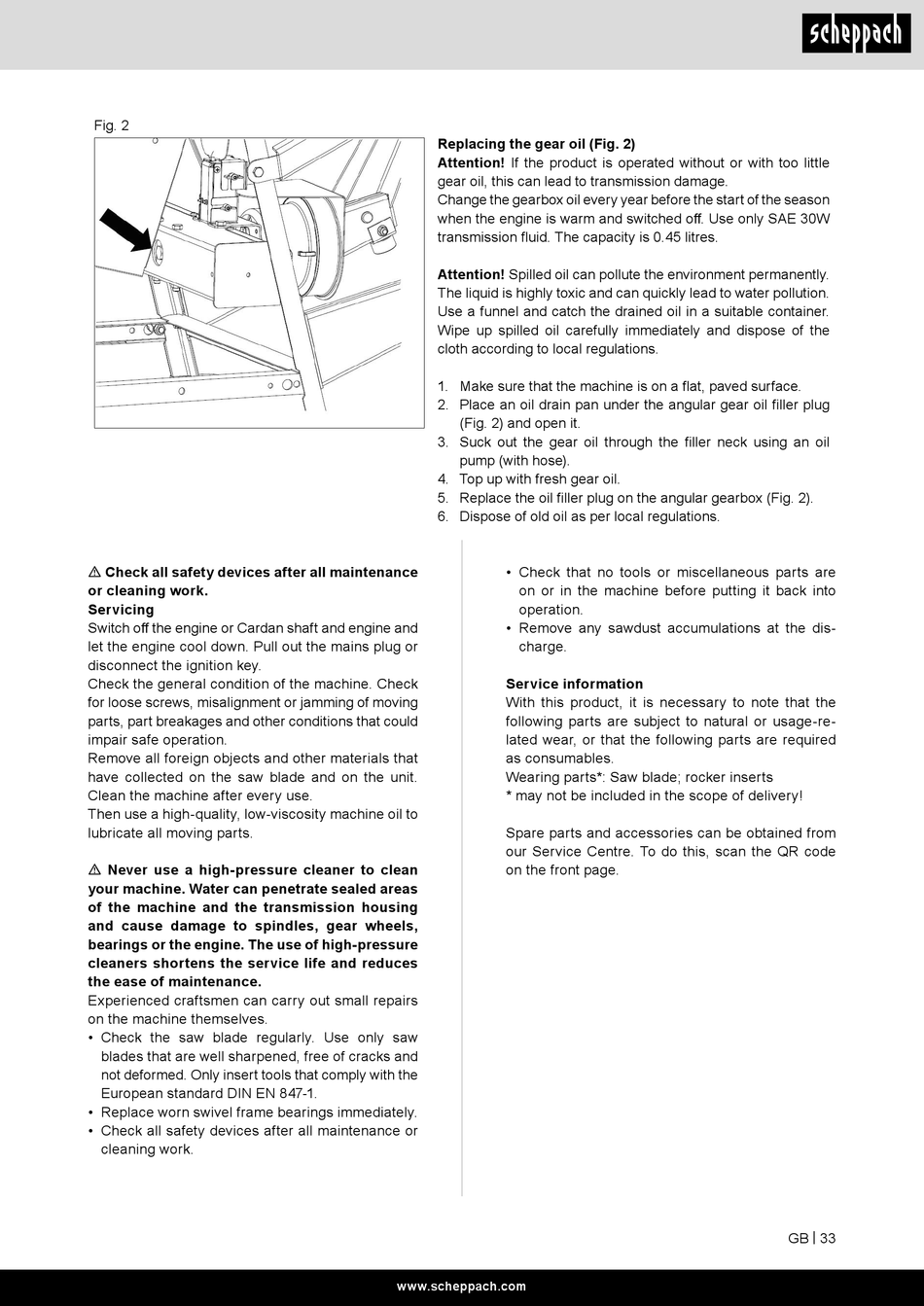

Fig. 2
m Check all safety devices after all maintenance
or cleaning work.
Servicing
Switch off the engine or Cardan shaft and engine and
let the engine cool down. Pull out the mains plug or
disconnect the ignition key.
Check the general condition of the machine. Check
for loose screws, misalignment or jamming of moving
parts, part breakages and other conditions that could
impair safe operation.
Remove all foreign objects and other materials that
have collected on the saw blade and on the unit.
Clean the machine after every use.
Then use a high-quality, low-viscosity machine oil to
lubricate all moving parts.
m Never use a high-pressure cleaner to clean
your machine. Water can penetrate sealed areas
of the machine and the transmission housing
and cause damage to spindles, gear wheels,
bearings or the engine. The use of high-pressure
cleaners shortens the service life and reduces
the ease of maintenance.
Experienced craftsmen can carry out small repairs
on the machine themselves.
• Check the saw blade regularly. Use only saw
blades that are well sharpened, free of cracks and
not deformed. Only insert tools that comply with the
European standard DIN EN 847-1.
• Replace worn swivel frame bearings immediately.
• Check all safety devices after all maintenance or
cleaning work.
Replacing the gear oil (Fig. 2)
Attention! If the product is operated without or with too little
gear oil, this can lead to transmission damage.
Change the gearbox oil every year before the start of the season
when the engine is warm and switched off. Use only SAE 30W
transmission fluid. The capacity is 0.45 litres.
Attention! Spilled oil can pollute the environment permanently.
The liquid is highly toxic and can quickly lead to water pollution.
Use a funnel and catch the drained oil in a suitable container.
Wipe up spilled oil carefully immediately and dispose of the
cloth according to local regulations.
1. Make sure that the machine is on a flat, paved surface.
2. Place an oil drain pan under the angular gear oil filler plug
(Fig. 2) and open it.
3. Suck out the gear oil through the filler neck using an oil
pump (with hose).
4. Top up with fresh gear oil.
5. Replace the oil filler plug on the angular gearbox (Fig. 2).
6. Dispose of old oil as per local regulations.
• Check that no tools or miscellaneous parts are
on or in the machine before putting it back into
operation.
• Remove any sawdust accumulations at the dis-
charge.
Service information
With this product, it is necessary to note that the
following parts are subject to natural or usage-re-
lated wear, or that the following parts are required
as consumables.
Wearing parts*: Saw blade; rocker inserts
* may not be included in the scope of delivery!
Spare parts and accessories can be obtained from
our Service Centre. To do this, scan the QR code
on the front page.
