16. Saw blade replacement
Wait for the rotating saw blade to stop and let the mains plug cool down. Pull out the mains plug or disconnect
the ignition key!
Observe the max. speed specified on the saw blade and select a saw blade suitable for your machine.
The saw blade can only be changed in the firewood cutting position and is carried out in the following steps:

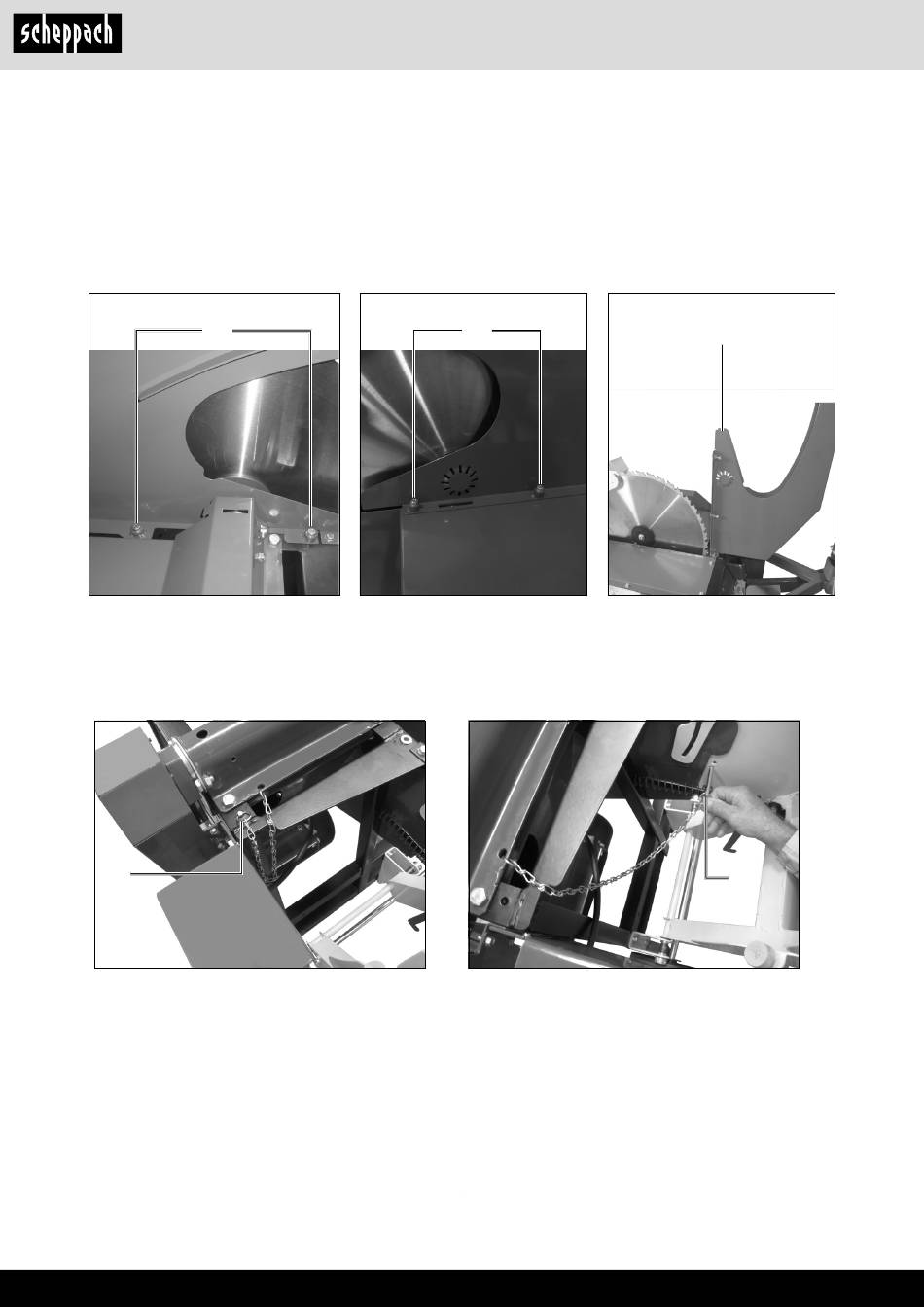

Fig. 1
1
1. Loosen the hexagon bolts (1) on the left and right of the protective hood until the bolts turn freely. (Fig. 1 and 2)
2. Fold the protective cover (2) upwards. (Fig. 3)
Fig. 4
3
3. To lock the saw blade, you need the locking pin (3), which is located in the frame (see Fig. 4). Insert the locking pin (3)
through the corresponding opening on the saw blade guard (Fig. 5). To do this, insert the pin completely and straight
into the hole. Use the corresponding hole (depending on the saw blade type) so that the pin is at the lowest point
(bottom of the tooth).
