m WARNING
The product and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
• Familiarise yourself with the product by means of
the operating manual before using for the first time.
• With accessories as well as wearing parts and
replacement parts use only original spare parts.
Spare parts can be obtained from your specialist
dealer.
• When ordering please provide the article number
as well as type and year of manufacture for the
product.

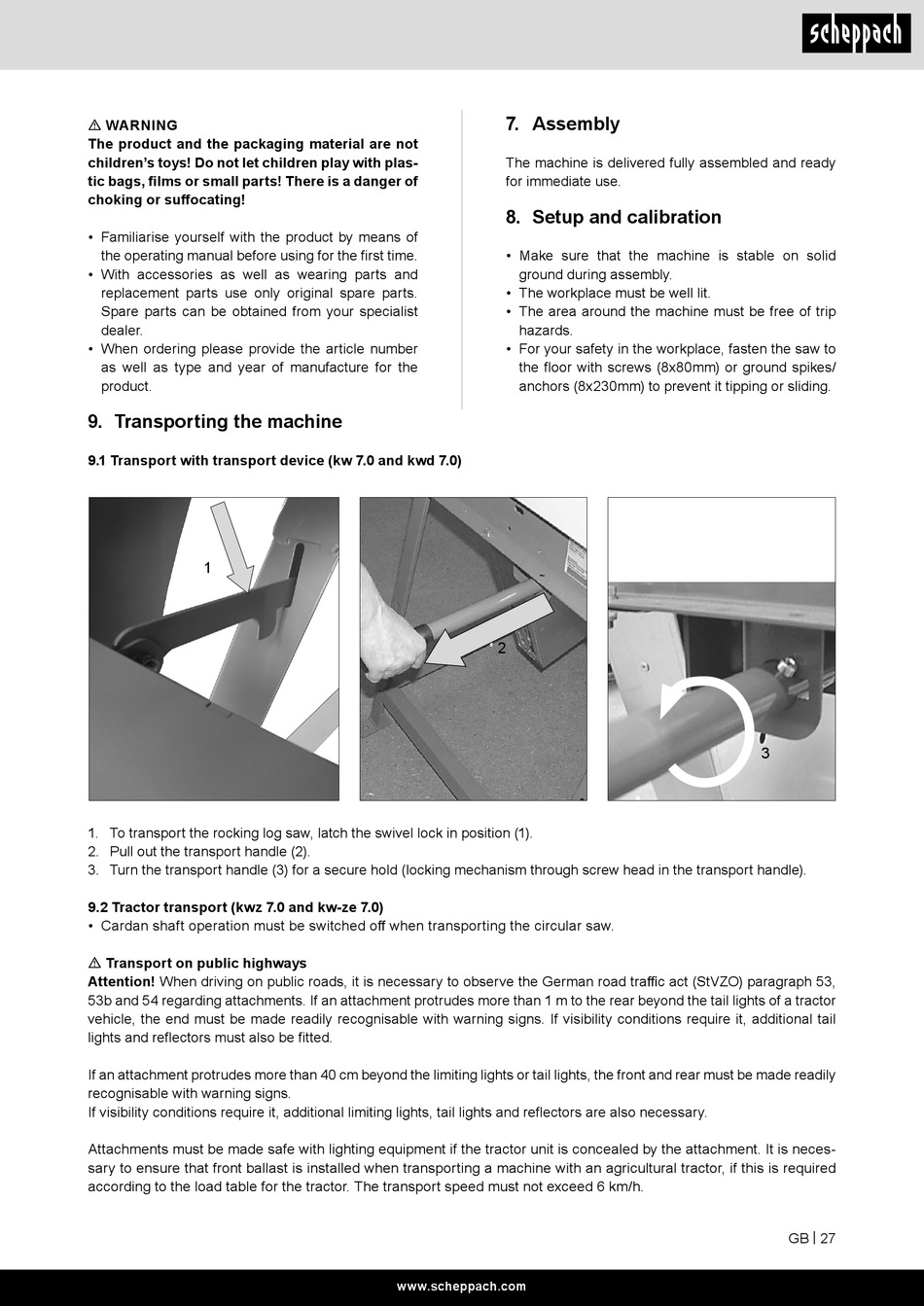

9. Transporting the machine
9.1 Transport with transport device (kw 7.0 and kwd 7.0)
1
1. To transport the rocking log saw, latch the swivel lock in position (1).
2. Pull out the transport handle (2).
3. Turn the transport handle (3) for a secure hold (locking mechanism through screw head in the transport handle).
9.2 Tractor transport (kwz 7.0 and kw-ze 7.0)
• Cardan shaft operation must be switched off when transporting the circular saw.
m Transport on public highways
Attention! When driving on public roads, it is necessary to observe the German road traffic act (StVZO) paragraph 53,
53b and 54 regarding attachments. If an attachment protrudes more than 1 m to the rear beyond the tail lights of a tractor
vehicle, the end must be made readily recognisable with warning signs. If visibility conditions require it, additional tail
lights and reflectors must also be fitted.
If an attachment protrudes more than 40 cm beyond the limiting lights or tail lights, the front and rear must be made readily
recognisable with warning signs.
If visibility conditions require it, additional limiting lights, tail lights and reflectors are also necessary.
Attachments must be made safe with lighting equipment if the tractor unit is concealed by the attachment. It is neces-
sary to ensure that front ballast is installed when transporting a machine with an agricultural tractor, if this is required
according to the load table for the tractor. The transport speed must not exceed 6 km/h.
7. Assembly
The machine is delivered fully assembled and ready
for immediate use.
8. Setup and calibration
• Make sure that the machine is stable on solid
ground during assembly.
• The workplace must be well lit.
• The area around the machine must be free of trip
hazards.
• For your safety in the workplace, fasten the saw to
the floor with screws (8x80mm) or ground spikes/
anchors (8x230mm) to prevent it tipping or sliding.
