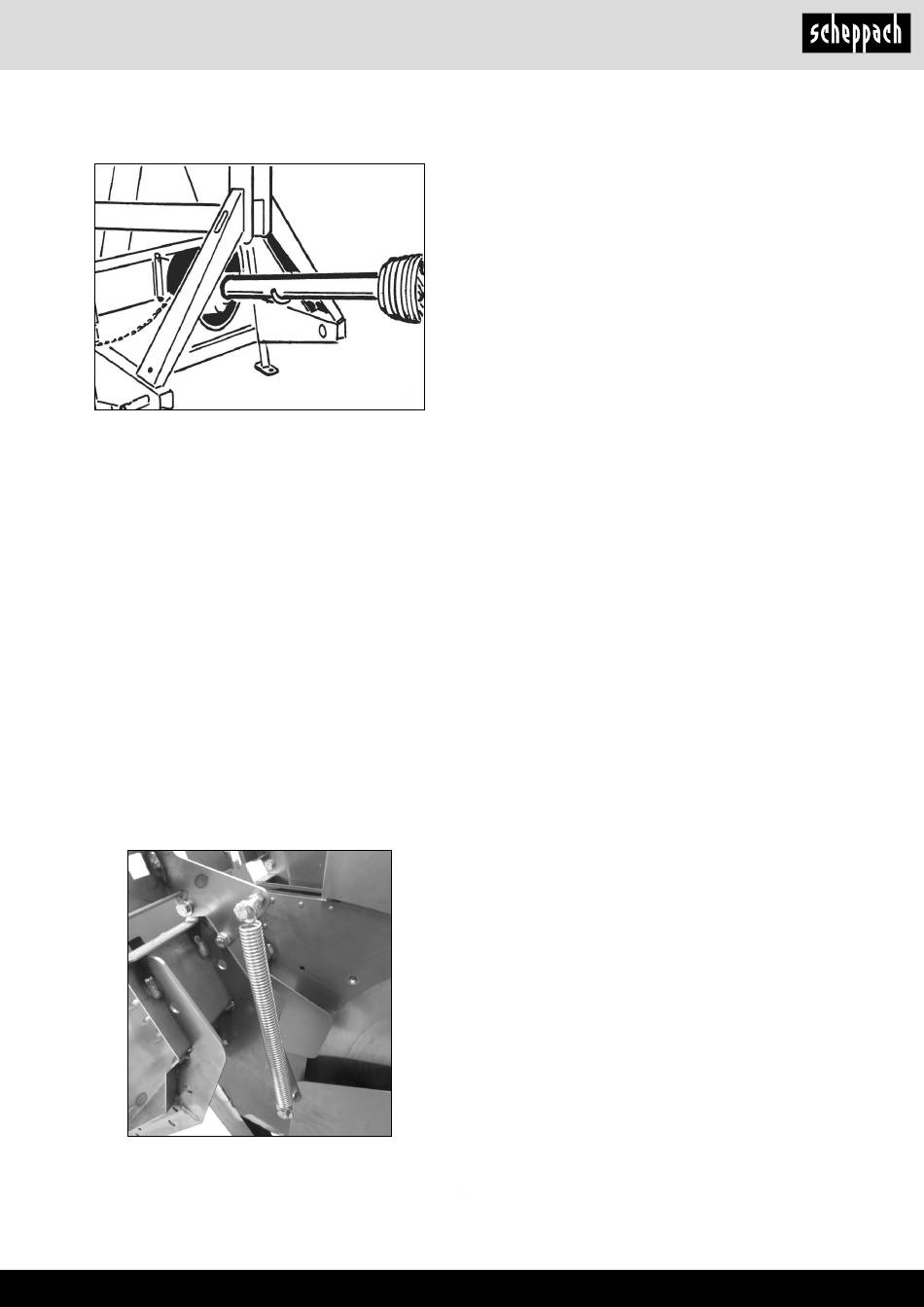

11. Tractor attachment (kwz 7.0 and kw-ze 7.0)
12. Commissioning
12.1 Before start-up
Important: The propshaft guard must be unlocked for assembly
and pushed in the direction of the Cardan shaft-side connec-
tion.
We recommend the Cardan shaft W100, Art. no. 05018101.
1. Remove the dust cover and attach it to the Cardan shaft
protective cover.
2. Lower the lower mounting arms to the support pins of the
firewood saw and secure them with the locking pins.
3. Position the upper mounting arm in the bracket and align it
with the holes in the bracket. Insert the hanger pin to lock
the upper mounting arm.
4. The cardan shaft end of the gearbox has a diameter of 34.8
mm and a connection with 6 teeth (standard category 1
cardan).
5. Slide the cardan drive shaft over the cardan shaft end on the
gearbox and on the drive vehicle. Press in the spring pins lo-
cated at both ends of the propeller shaft. Push the drive shaft
further over the ends of the Cardan shaft until the spring pins
spring out and engage in the teeth of the end of the Cardan
shaft.
6. Align the Cardan shaft: Viewed from above and from the
side of the shaft, the Cardan shaft end on the firewood
saw and the Cardan shaft end on the drive vehicle must be
aligned parallel. The angles of the universal joints must be
as small as possible.
7. Secure the safety chain of the Cardan shaft drive to a fixed
part of the machine and the driving vehicle to prevent the
protective device from turning.
1. Remove the cable ties on the tension spring.
2. Open the protective cover (1) (see illustration in chapter 13)
and insert the tension springs.
