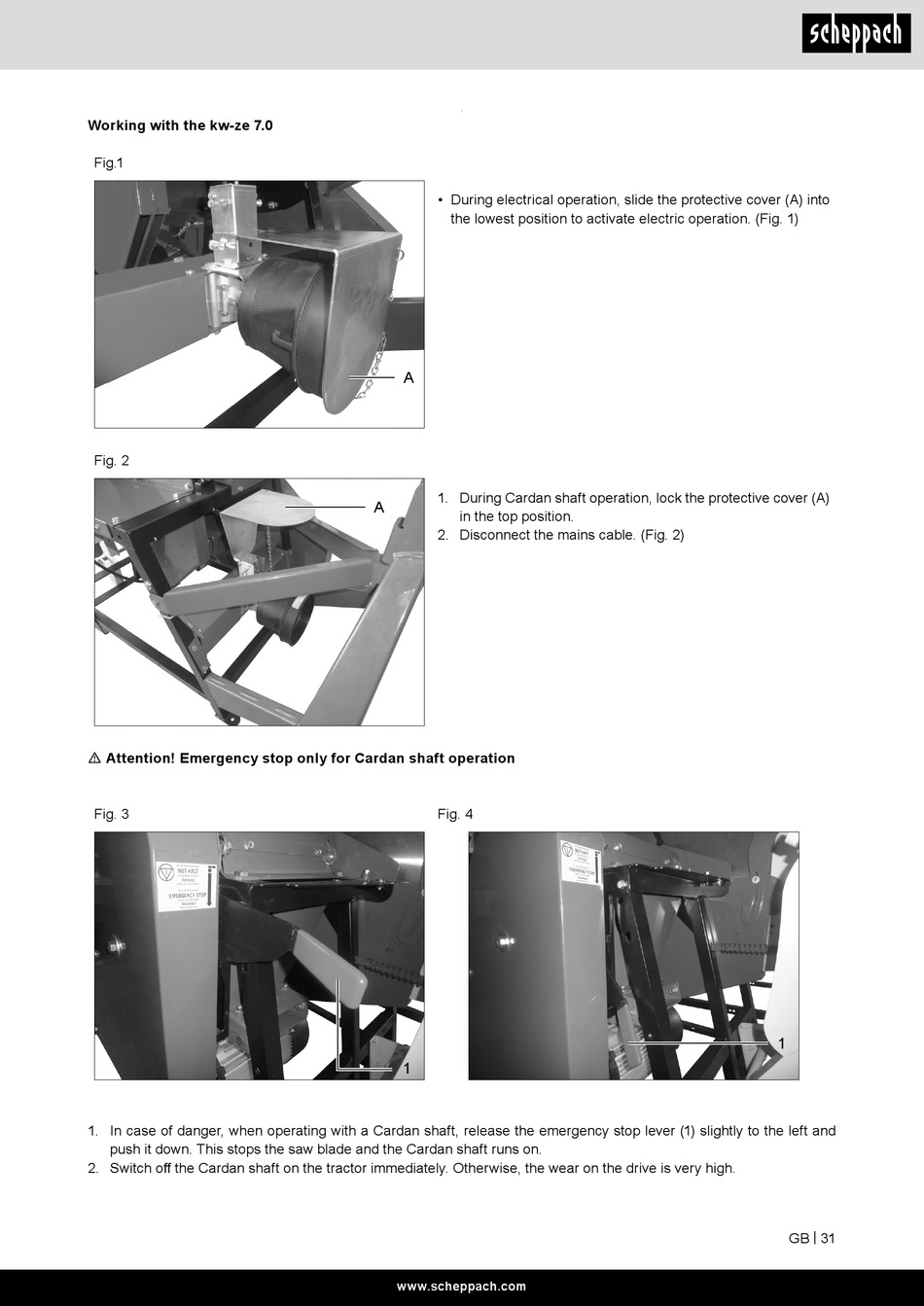

Working with the kw-ze 7.0
Fig.1
Fig. 2
m Attention! Emergency stop only for Cardan shaft operation
Fig. 3
1. In case of danger, when operating with a Cardan shaft, release the emergency stop lever (1) slightly to the left and
push it down. This stops the saw blade and the Cardan shaft runs on.
2. Switch off the Cardan shaft on the tractor immediately. Otherwise, the wear on the drive is very high.
• During electrical operation, slide the protective cover (A) into
the lowest position to activate electric operation. (Fig. 1)
A
1. During Cardan shaft operation, lock the protective cover (A)
A
in the top position.
2. Disconnect the mains cable. (Fig. 2)
Fig. 4
1
