This functionality is based on a Master/Slave architecture, so during installation, it is necessary to choose one charger as
the master of the network. A Duo master charger can manage up to 48 slave connection points (24 Duo slave chargers). The
Load Balancing configuration should be performed through the app (see chapter 08).
Collegamento Load Balancing
The Load Balancing functionality is based on Modbus TCP/IP communication between the chargers. Therefore, to configure
this functionality, it is sufficient to connect all chargers to the same router via Ethernet cabling or to the same WiFi network.
1
Figure D shows a typical Daisychain installation . In case of connection loss with one or more slave chargers, they will charge
2
at a fixed minimum power. The master charger will take this offset into account when balancing the network.
Finally, complete the installation by configuring the functionality through the Daze app.
Note: It is not possible to configure and use two different Load Balancing networks under the same network connection
1
(WiFi or Ethernet). In situations where multiple Load Balancing networks are required, each network must be assigned its
own dedicated WiFi or Ethernet connection.
Note: To ensure proper functioning of Load Balancing, the total length of the Modbus cable between the router and the
2
master charger should not exceed 200 meters.

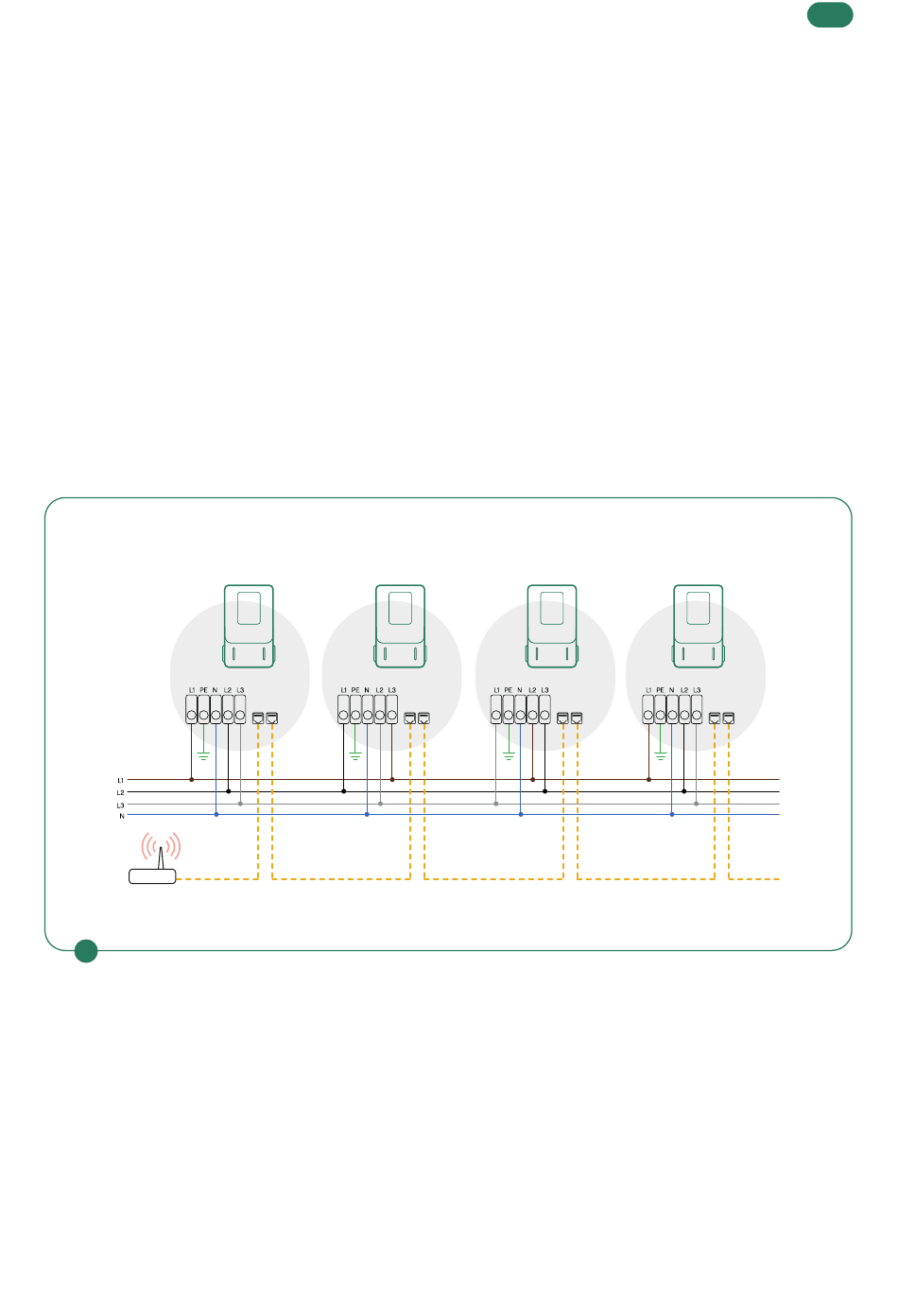

Duo Duo Duo Duo
master slave slave slave
Router
E
It is important to evenly distribute the phases in the wiring of the different Duo units to avoid overloading a single phase. During
the App configuration of the Load Balancing functionality, it is required to specify the phase order for each individual charger.
