DAZE Duo T Installationsanleitung Seite 11

A

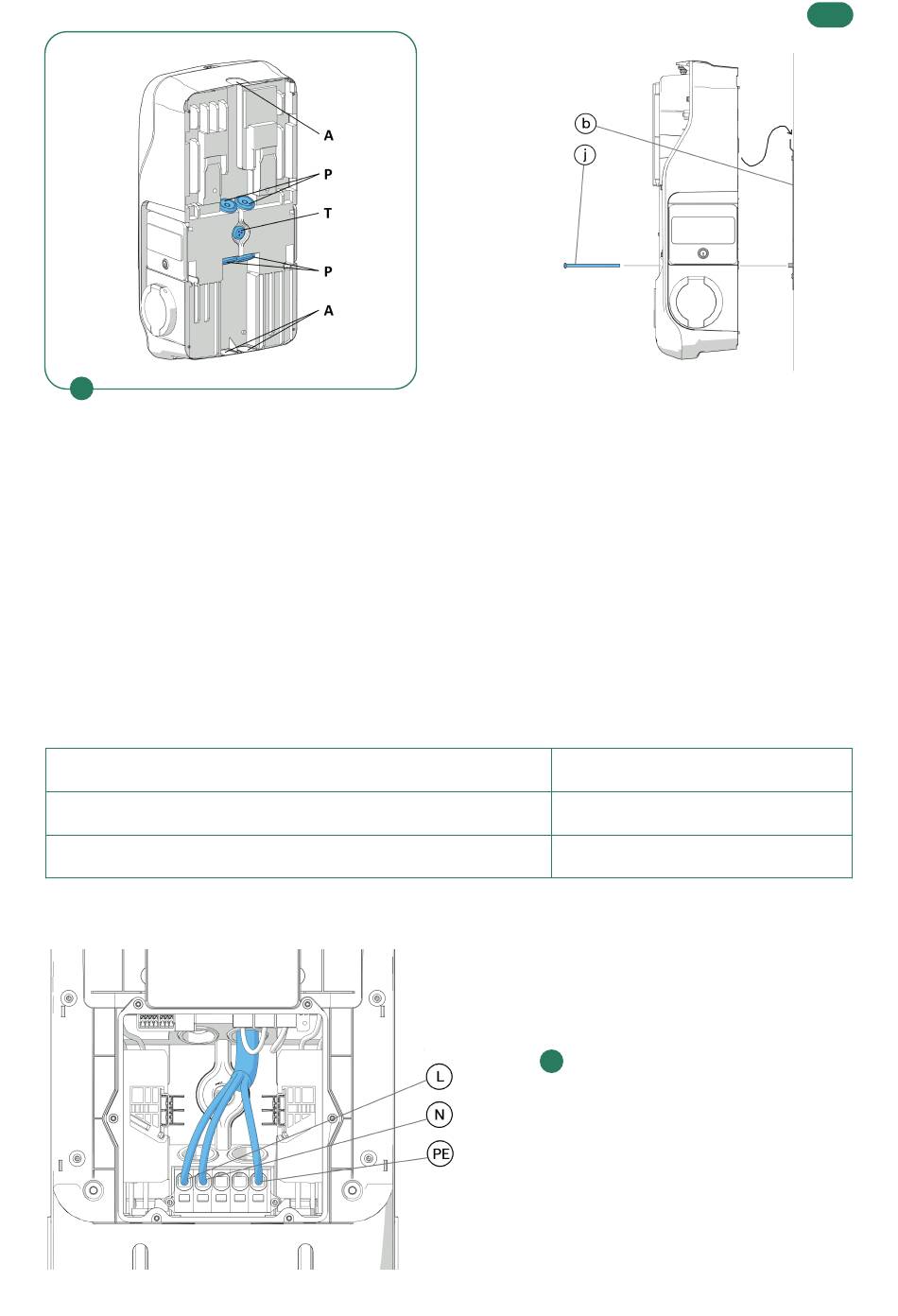

7. If necessary, for the installation of the power cables, you can break the detachable arches (A) on the back of Duo using pliers
(see image A).
8. Insert the power cable through one of the cable entries (P) on the back of Duo. The cable membrane (T) is designed for
connecting accessories (Power Manager or Modbus, Ethernet). It has three blind holes Ø6 mm. To insert the communication
cable, break the bottom of the blind hole using a screwdriver.
9. Fix Duo to the wall by placing the upper part onto the two top tabs of the installation plate (b), then complete the installation
by inserting the two M5 x 100mm screws (j) into the lower holes of Duo.
06.3 - Electrical Cconnection
Prepare the lines, neutral, and ground with the provided crimp terminals before making the connections.
Warning: Failure to follow this instruction will invalidate the product warranty. Please refer to Chapter 12 – Warranty.
Diameter of the multi-core power cable
Recommended cross-section of the power conductors
Stripping length
12 - 24 mm
6-25 mm
2
12 mm
1P
For the single-phase Duo, connect the live (L)
and neutral (N) lines without reversing them;
connect the ground (PE).
EN
11.
