06.1 - Installation location

System requirements

Duo can be installed in systems with the following grounding types: TT, TN.

For proper functioning of the charger with all vehicles, it is necessary to ensure that the ground resistance of the system is

less than 100 Ω.

The protection circuit breakers are integrated into the product (see technical information in Chapter 1).

•

Ensure that the installation area is free from heat sources, flammable substances, and electromagnetic sources both

during the installation phase and throughout the product's lifetime.

•

Additionally, the installation location must be sufficiently ventilated to ensure proper heat dissipation.

•

For product versions that require mobile cellular or WiFi connectivity, ensure that the selected area has cellular

reception or WiFi coverage.

•

Design the parking layout to allow easy access to the charging cable.

06.2 - Assembly

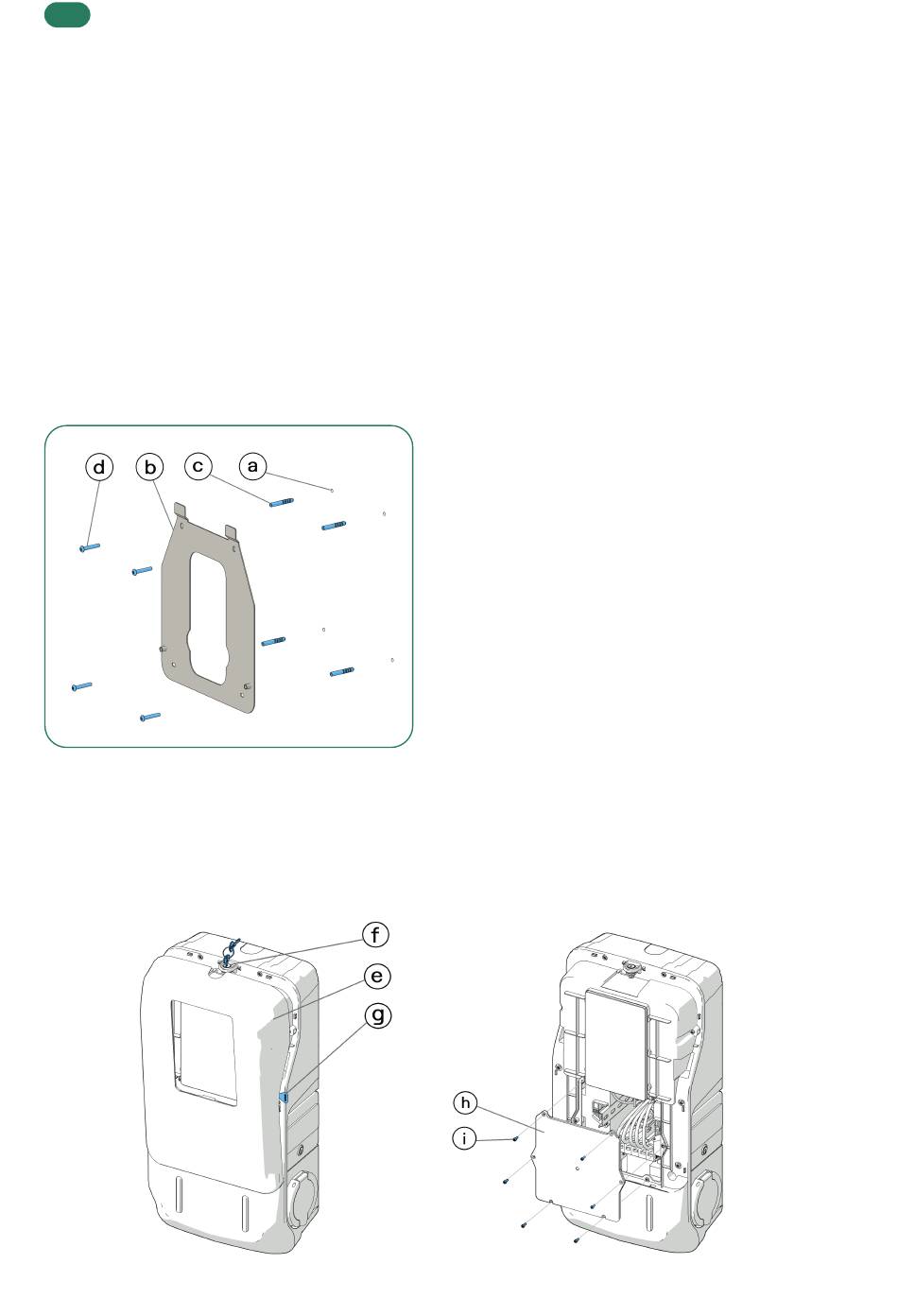

5. Open Duo using the lock (f) located on the top side, using the provided keys. Remove the cover (e) with the help of the

provided pry tool (g), carefully lifting and following the profile of Duo. Do not use a screwdriver or other tools to apply force!

6. Open the central door (h) of Duo by unscrewing the 6 M3 screws (i) indicated in the figure with a Torx TX10 screwdriver.

10.

Note: Below is the procedure for wall mounting. For

mounting on a totem, please refer to the dedicated manual.

1. Use the installation plate to mark the correct position for

the 4 holes (a) to be drilled on the wall. Use a spirit level (b)

to position the installation plate correctly, and a pencil

to mark the four points where the holes will be made. It is

recommended to place the lower holes at a height of 110 to

130 cm from the ground for optimal use of Duo.

2. Drill the 4 holes (8 mm diameter) on the wall using a drill.

3. Insert the wall plugs (c) provided in the installation kit into

the holes, using a hammer to help.

4. Fix the installation plate (b) in place using the 4 screws Ø 5

x 45mm (d) provided in the package.
