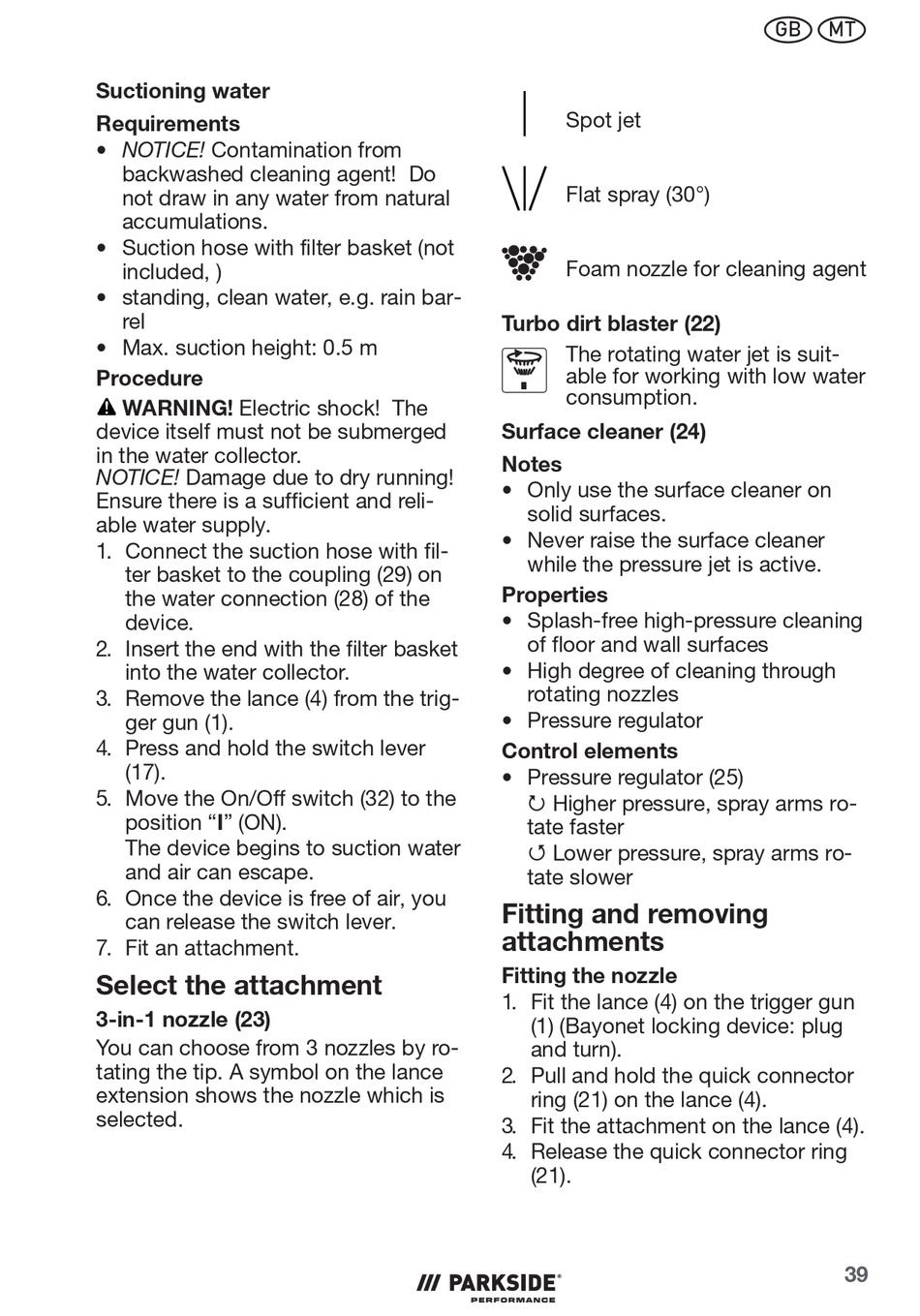

Suctioning water
Requirements
• NOTICE! Contamination from
backwashed cleaning agent! Do
not draw in any water from natural
accumulations.
• Suction hose with filter basket (not
included, )
• standing, clean water, e.g. rain bar-
rel
• Max. suction height: 0.5 m
Procedure
WARNING! Electric shock! The
device itself must not be submerged
in the water collector.
NOTICE! Damage due to dry running!
Ensure there is a sufficient and reli-
able water supply.
1. Connect the suction hose with fil-
ter basket to the coupling (29) on
the water connection (28) of the
device.
2. Insert the end with the filter basket
into the water collector.
3. Remove the lance (4) from the trig-
ger gun (1).
4. Press and hold the switch lever
(17).
5. Move the On/Off switch (32) to the
position "I" (ON).
The device begins to suction water
and air can escape.
6. Once the device is free of air, you
can release the switch lever.
7. Fit an attachment.
Select the attachment
3-in-1 nozzle (23)
You can choose from 3 nozzles by ro-
tating the tip. A symbol on the lance
extension shows the nozzle which is
selected.
Spot jet
Flat spray (30°)
Foam nozzle for cleaning agent
Turbo dirt blaster (22)
The rotating water jet is suit-
able for working with low water
consumption.
Surface cleaner (24)
Notes
• Only use the surface cleaner on
solid surfaces.
• Never raise the surface cleaner
while the pressure jet is active.
Properties
• Splash-free high-pressure cleaning
of floor and wall surfaces
• High degree of cleaning through
rotating nozzles
• Pressure regulator
Control elements
• Pressure regulator (25)
⭮ Higher pressure, spray arms ro-
tate faster
⭯ Lower pressure, spray arms ro-
tate slower
Fitting and removing
attachments
Fitting the nozzle
1. Fit the lance (4) on the trigger gun
(1) (Bayonet locking device: plug
and turn).
2. Pull and hold the quick connector
ring (21) on the lance (4).
3. Fit the attachment on the lance (4).
4. Release the quick connector ring
(21).
