Opera Fusion IFU038A0 Installations- Und Benutzerhandbuch Seite 47

Model Voltage /
Frequency
IFU038A0 220-240 V
~ 50/60Hz
IFU058A0
220-240 V
~ 50/60Hz
IFU078A0
380-415 V ~
50/60Hz
IFU078B0
220-240 V
~ 50/60Hz
IFU088A0
380-415 V ~
50/60Hz
WARNING! THIS APPLIANCE MUST BE GROUNDED
The electrical safety of this appliance is guaranteed only if there is complete
continuity between the appliance itself and an effective grounding system, in
accordance with local and national safety regulations.

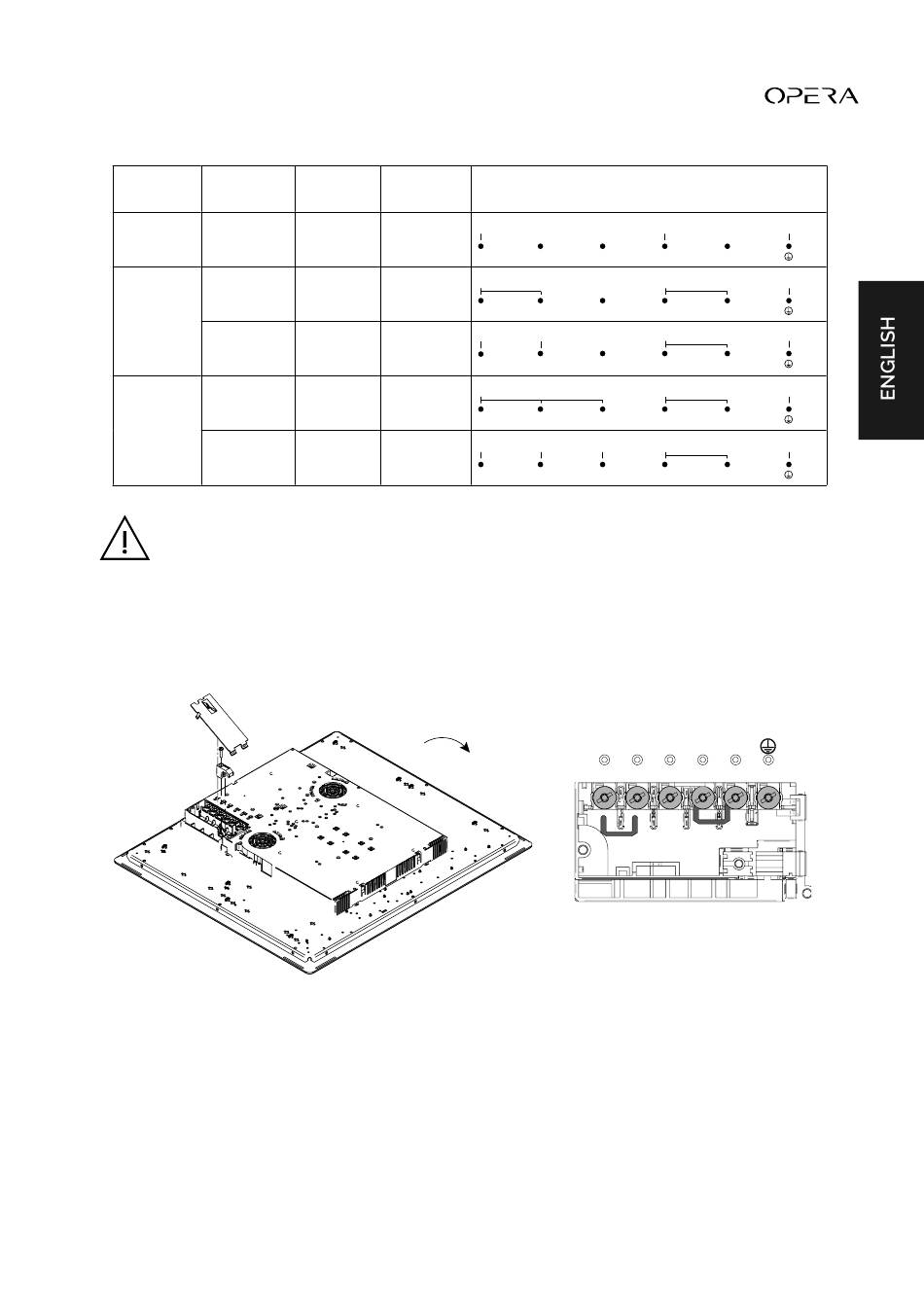

The terminal block can be accessed at the bottom of the appliance. Open the terminal block
using a flathead screwdriver. Make the electrical connection following the instructions in the
table above, depending on the model purchased and the type of electrical connection.
Basic Calibration of Environmental Sensors
After each connection to the electrical network, a basic calibration is automatically performed
to ensure the optimal functioning of the sensors. All displays light up for a few seconds.
During the calibration, no objects should be present; otherwise, the process will stop until
they are removed. During this period, the cooking panel cannot be used.
Number Cable
of Phases Section
BROWN
1 fase + N 3x2,5 mm²
BROWN
1 fase + N 3x4 mm²
BROWN
2 fase + N 4x2,5 mm²
BROWN
1 fase + N 5x2,5 mm²
BROWN
3 fase + N 5x1,5 mm²
180˚
Connection
L1 L2 L3
L1 L2 L3
BLACK BLUE
L1 L2 L3
BLACK BLUE
L1 L2 L3
BLACK GREY BLUE
L1 L2 L3
L1 L2
BLUE GREEN/YELLOW
N1 N2
BLUE GREEN/YELLOW
N1 N2
GREEN/YELLOW
N1 N2
GREEN/YELLOW
N1 N2
GREEN/YELLOW
N1 N2
L3 N1 N2
INDUCTION HOB | 47
