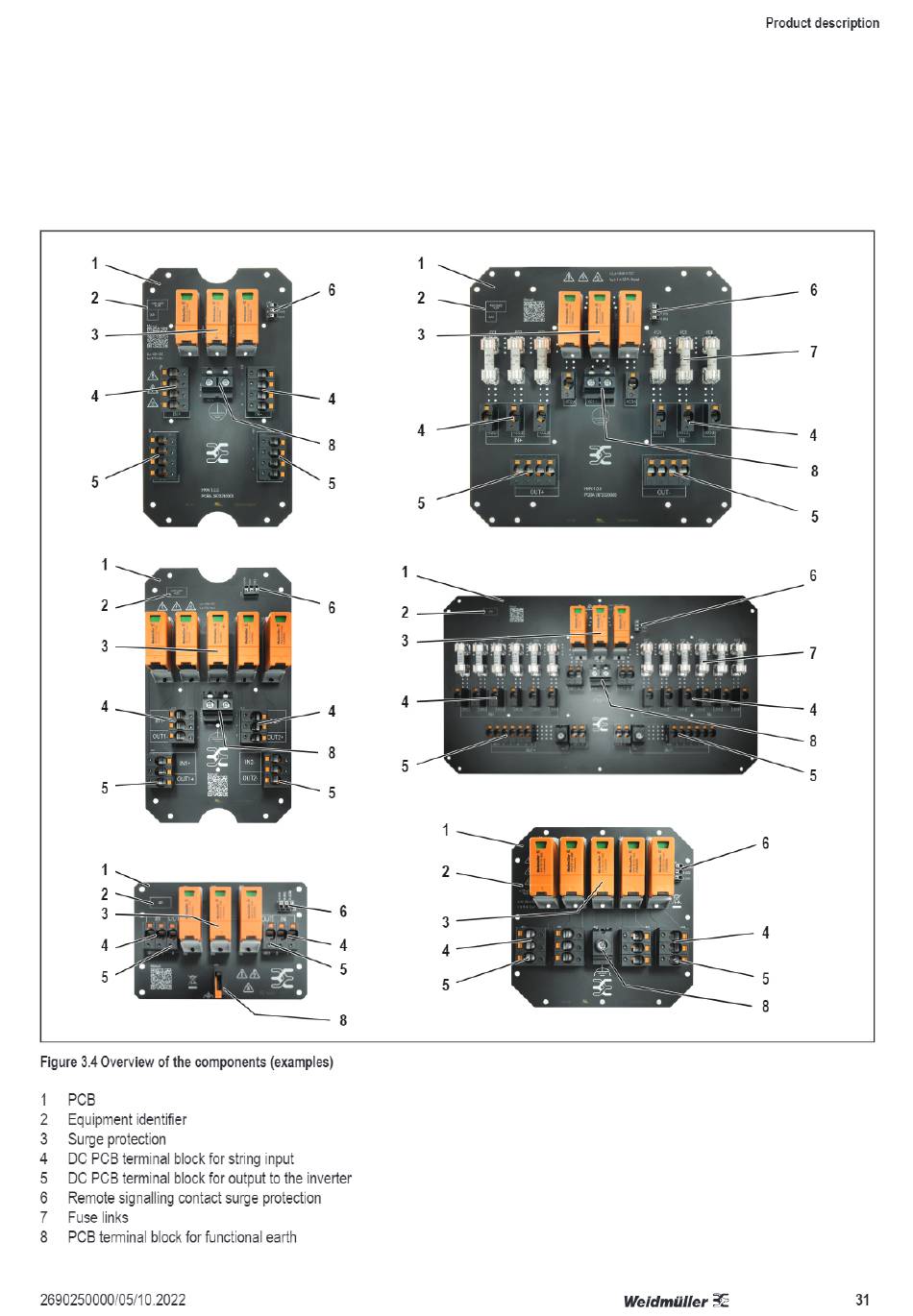

Figure 3.4Overview of the components (examples)
I
PCB
2
Equipmentidentifier
3
Surgeprotection
4
DC PCBterminal blockfor string input
DC PCBterminal blockfor outputto the inverter
5
6
Remotesignallingcontactsurge protection
7
Fuse links
8
PCB terminal
block for functional
2690250000/05/10.2022
earth
Product description
Weidmüller
31
